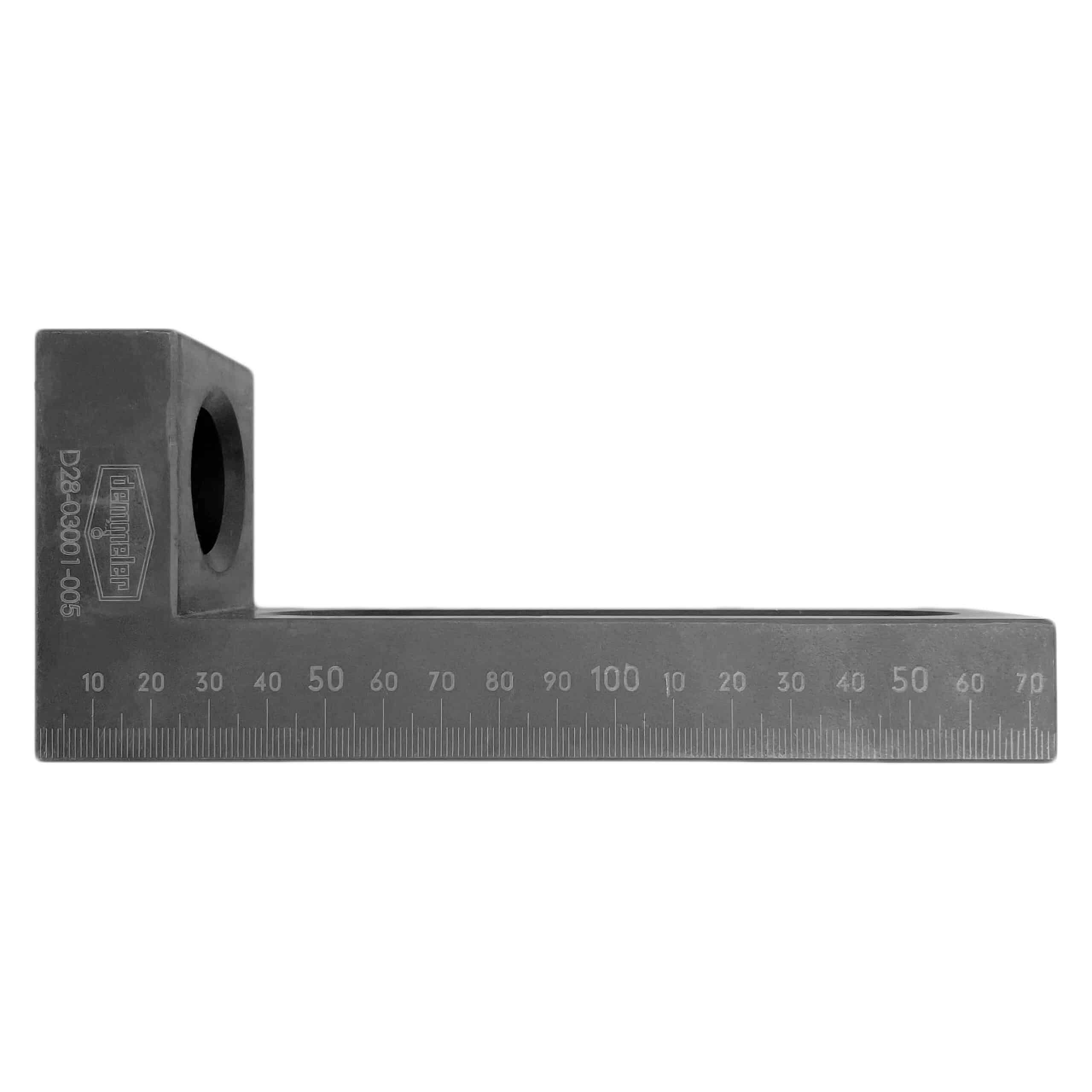

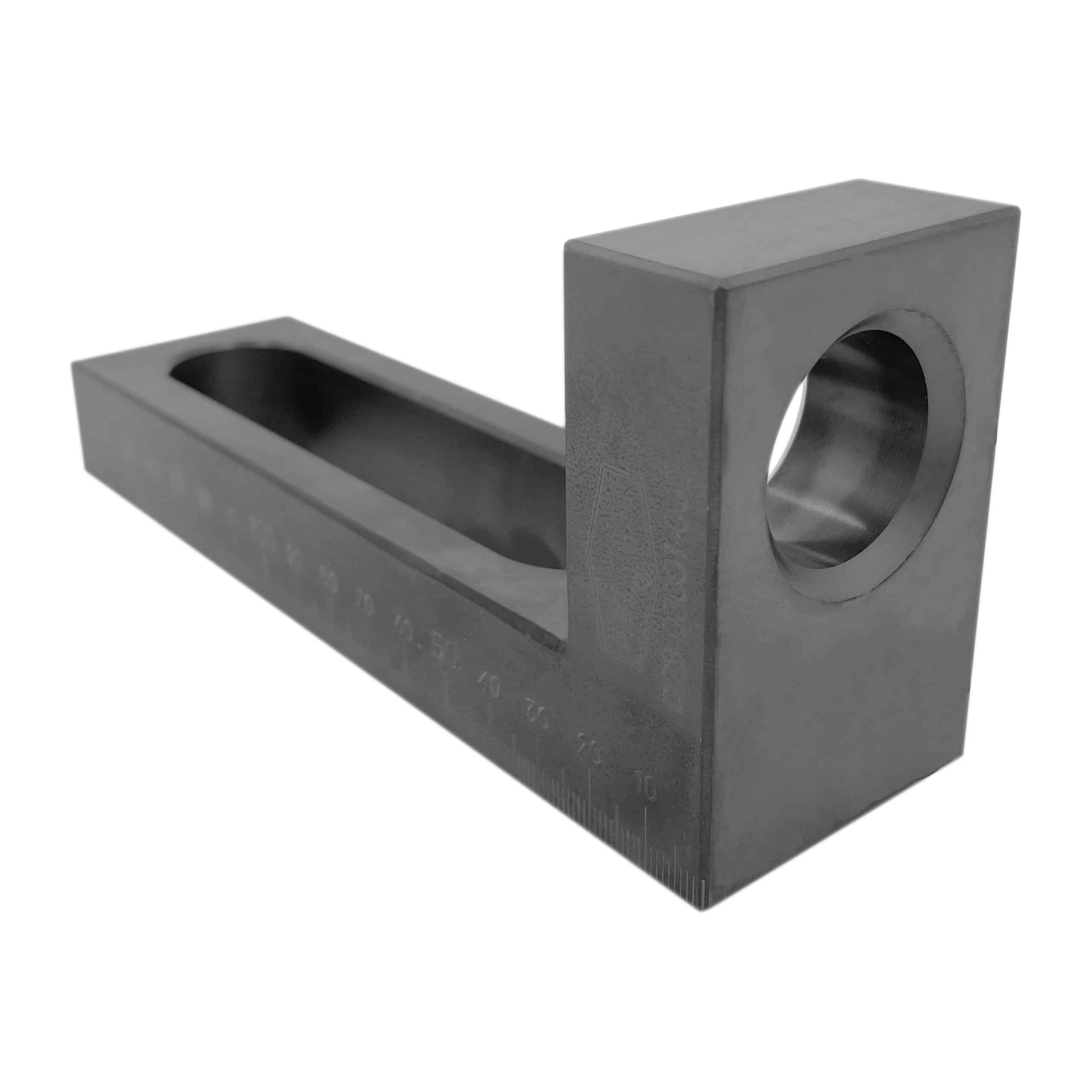

Angle – Clamping & Locating – Small Bore/Oblong

D28-03001-005

•Small form factor making it ideal for confined work areas
•1 mm precision scaling on both sides
•Ability to use grid lines on 3D worktable for dimension adjustment

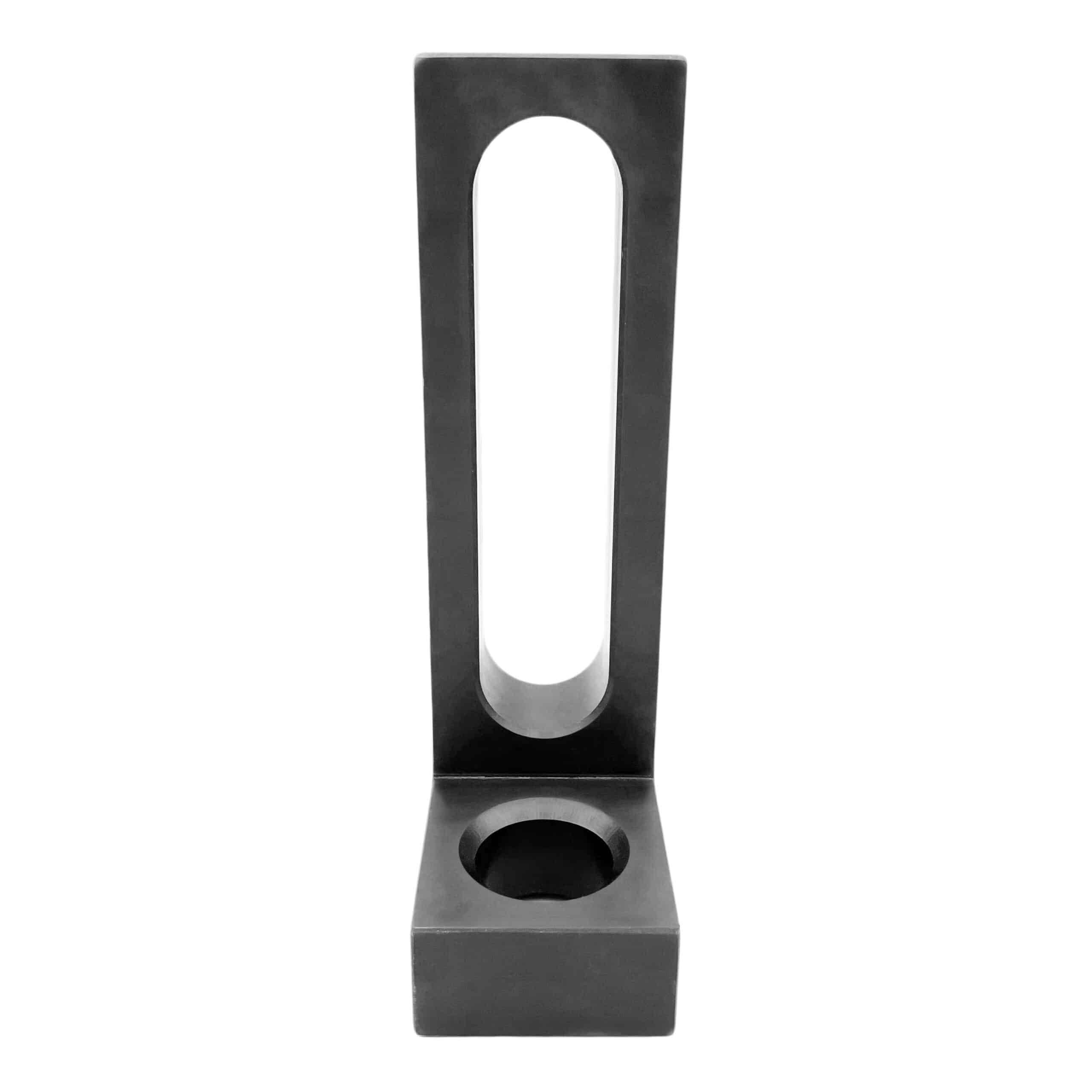

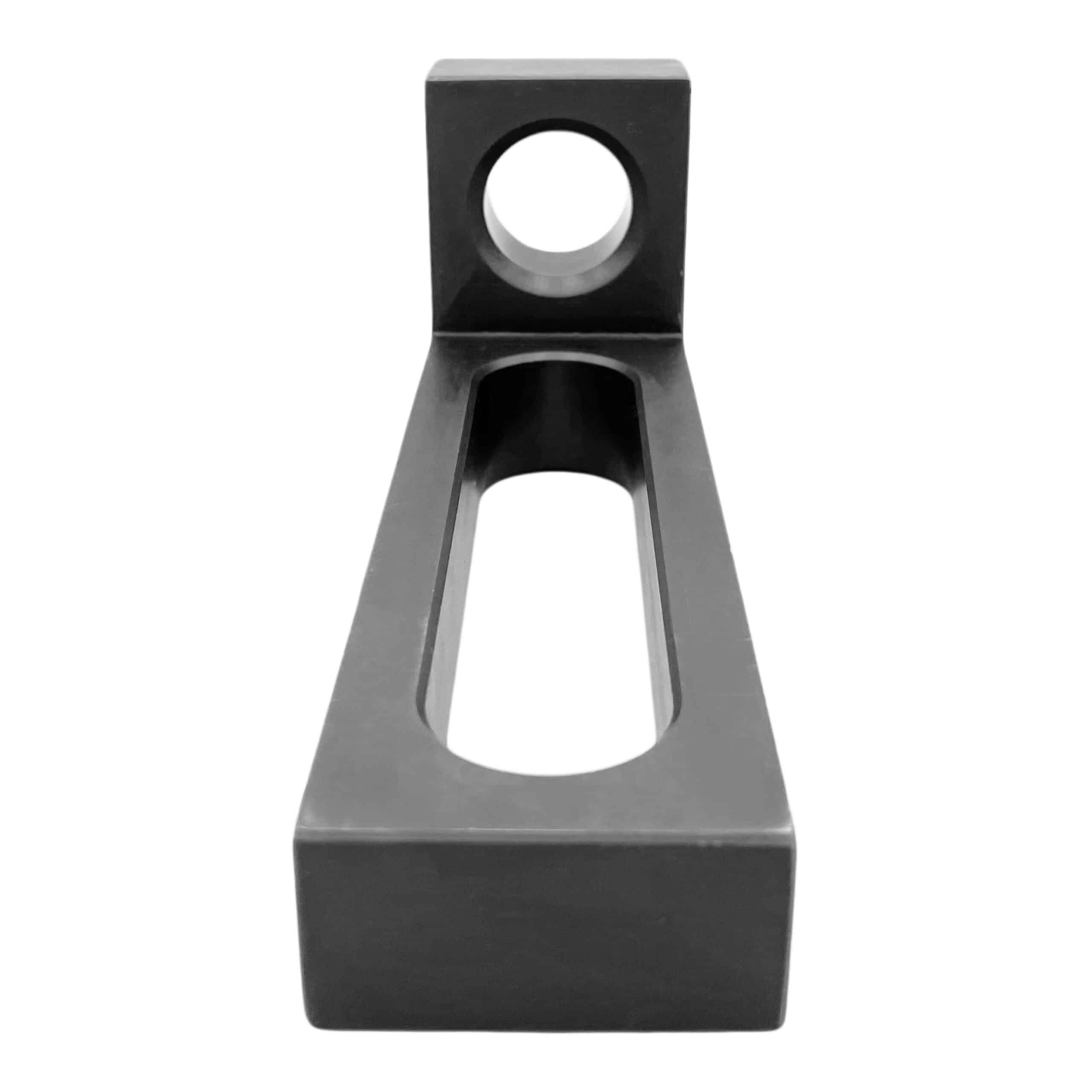

•Combination of system bore and oblong hole for versatility

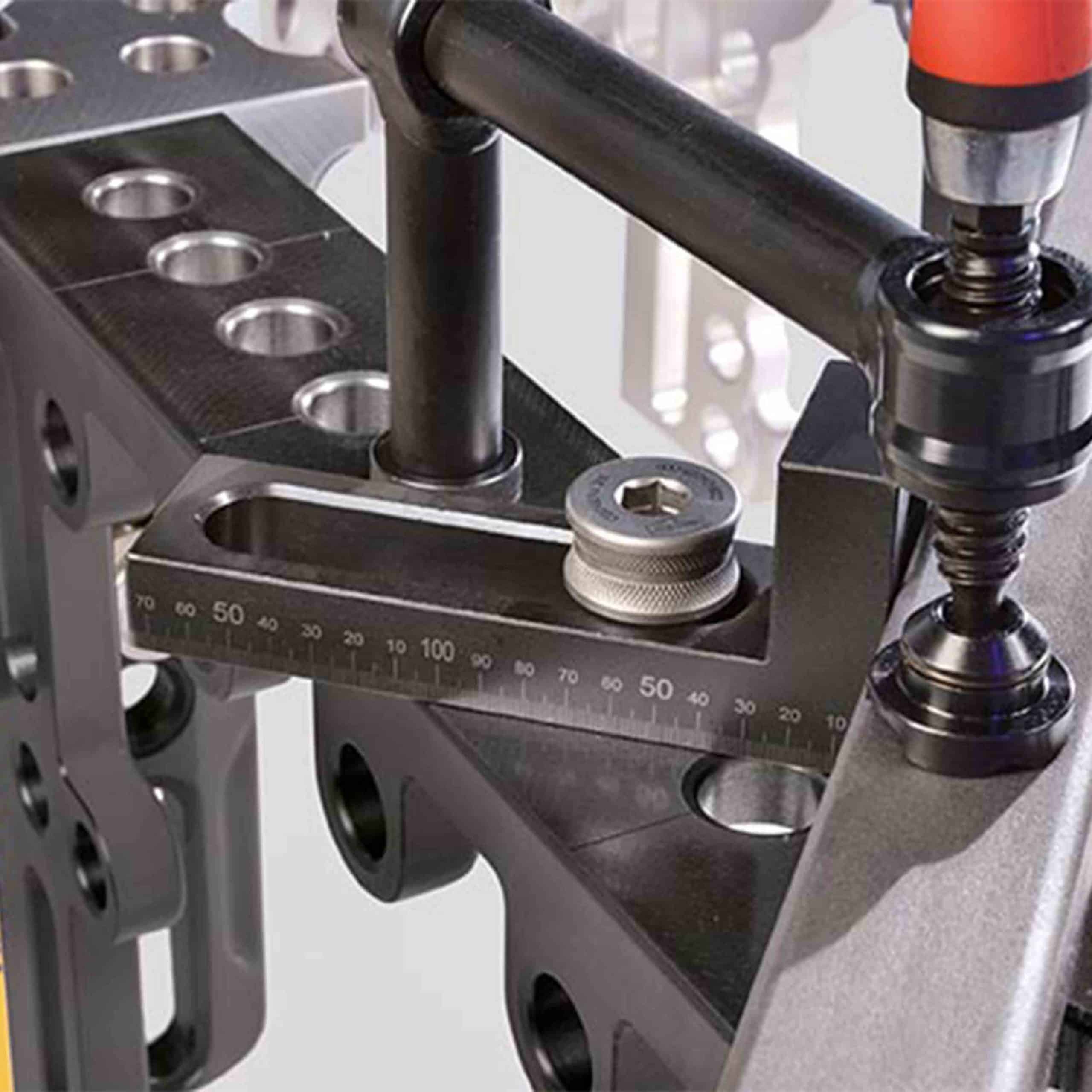

•Fixed or continuously adjustable on 3D worktable and system components
•Hardened for the ultimate durability

Base Length = 175mm
Base Width = 50mm
Height = 75mm
Base Height = 25mm
Weight = 1.4kg

$216.20(exc GST)



Angle – Clamping & Locating – Small Bore/Oblong Tech Specs

Weight 1.4 kg
Part No.

D28-03001-005
