Portable Measuring Arms

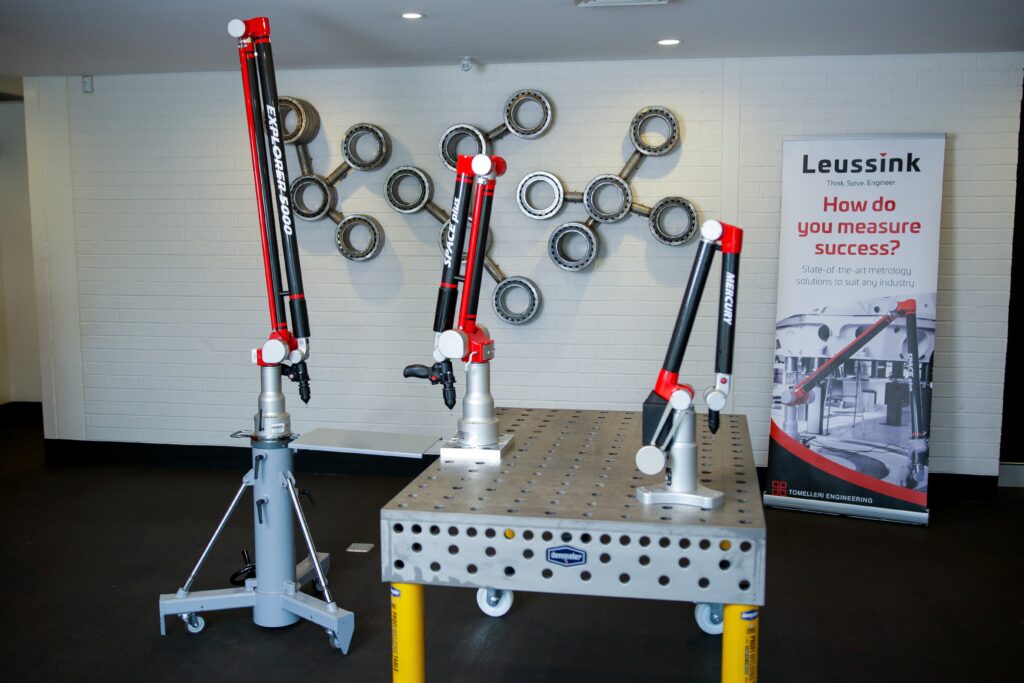

0o0a8693 Min

Coordinate Measuring Machines for Accurate Metrology

Tomelleri’s state-of-the-art portable metrology arms from Leussink engineered to assess tolerances for any part directly in your manufacturing environment, eliminating the need to transport the part to a distant metrology lab. By conducting measurements on-site, your business can enhance workflow efficiency and reduce project turnaround times. This flexibility is particularly advantageous for offsite or remote location projects. The measurement arm senses discrete points on the object's surface with a probe. The dimensions are immediately digitised and transferred to a CAD system, where surfaces are developed and drawings are finalised.

Benefits of a Portable CMM Arm

There are many advantages of using a CMM coordinate measuring machine, including:

Accuracy

Accuracy

Achieve unparalleled precision in your measurements.

Efficiency

Efficiency

Streamline your processes and accelerate project completion.

Portability

Portability

Easily transport and use the measuring arm wherever needed.

Repeatability

Repeatability

Consistently obtain reliable and reproducible results.

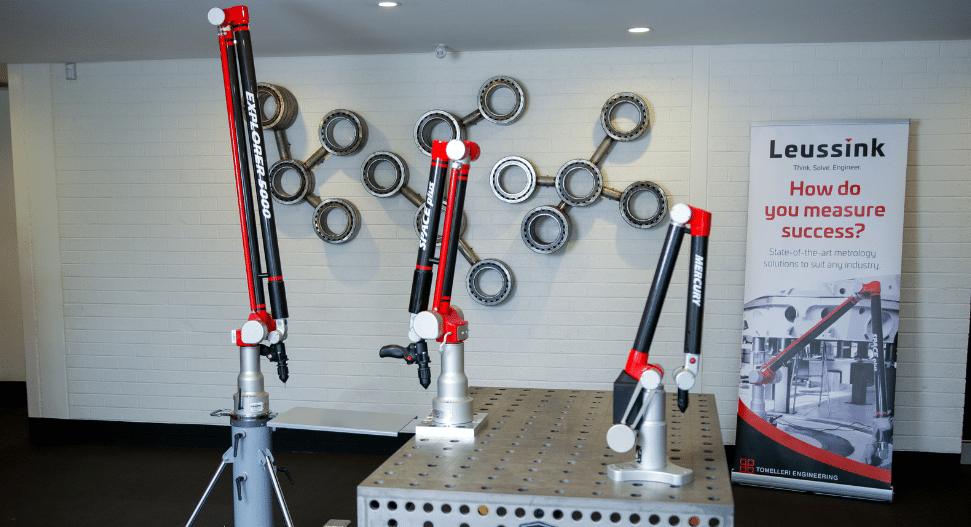

Tomelleri Portable Measuring Arms

Discover our diverse selection of portable metrology arms from the renowned manufacturer Tomelleri. All Tomelleri measuring arms are certified to ISO standards, and our range encompasses various measuring volumes, spanning from 1.8 metres up to 9 metres.

Tomelleri Explorer large-volume 3D measuring arm

The Tomelleri Explorer is ideal for measuring large volumes and inspecting oversized parts with a touch probe. Features include:

  • The largest measuring range for a portable arm is 5 to 9-metre diameter, with 6 and 7-axes configuration.
  • Electro-magnetic brake on the second axis allows the operator to lock the arm at the required height.
  • Compatible with a scanner for point cloud measurements or reverse engineering.
  • Ergonomic design to ensure ease of use and reduce operator fatigue.
  • High-precision sensors for accurate measurements in various environments.
Explorer5000 2

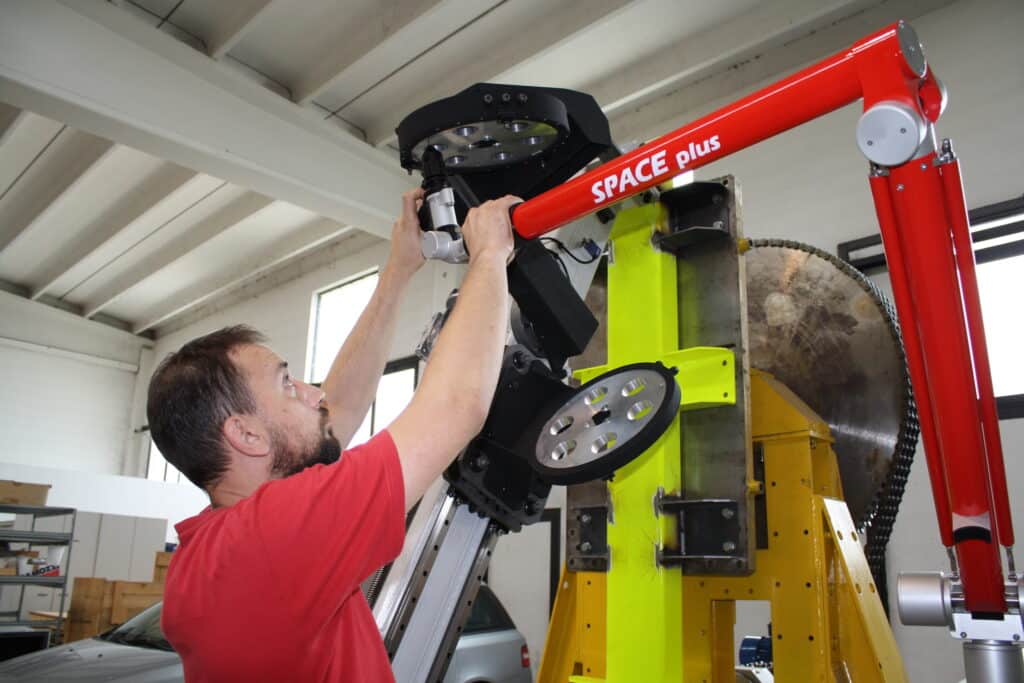

Tomelleri Space Plus for reverse engineering

The Tomelleri Space Plus is multi-purpose, versatile, and ideal for point cloud inspection or reverse engineering. Features include:

  • The most accurate portable arm of its kind, configurable with a diameter of 1.8 up to 4 metres and 6 or 7 rotation axes.
  • The counter-balance system with a double spring provides precision, lightweight, and easy handling characteristics.
  • When used in combination with a scanner for point cloud inspection or reverse engineering, it has a 7-axes configuration.
  • Automatically recognises when taken from its safe position, instantly unlocking its brake system and re-locking it when put back.
Space Plus 2

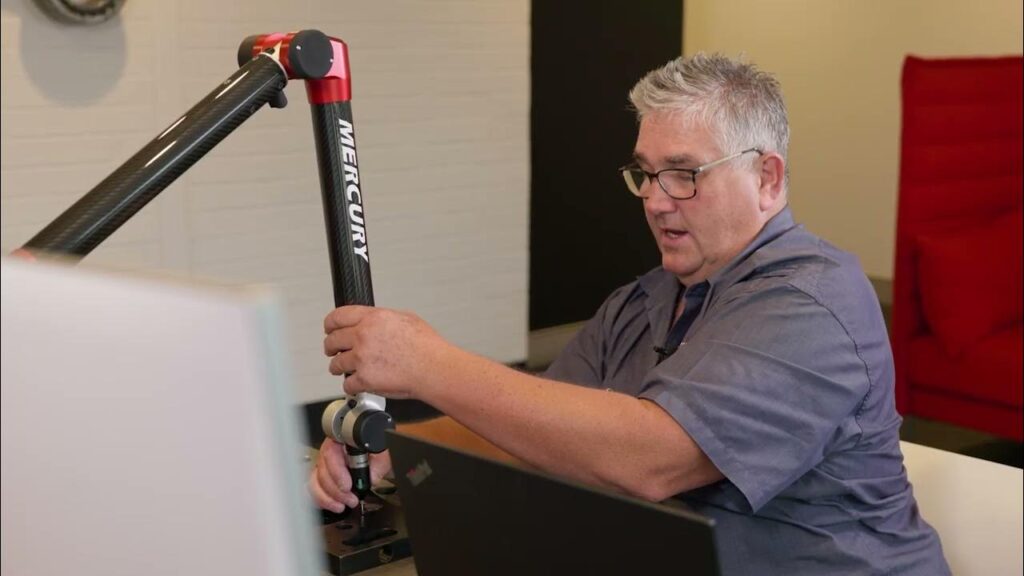

Tomelleri Mercury compact portable measuring arm

The Tomelleri Mercury is compact and sturdy and delivers ultra-high accuracy even in the smallest spaces. Features include:

  • Available in both 1.3-metre and 1.8-metre models.
  • The counterbalance system means a user doesn’t need to affix the arm to a table surface. Place it on a sturdy tabletop or solid interface, like a steel or aluminium base, with three support points, and it is ready for use.
  • Works seamlessly with leading metrology software platforms, including Aberlink and the Geomagic software suite.
  • Thermally compensated, meaning it can maintain high accuracy regardless of temperature change throughout the day.
Tomelleri Mercury
