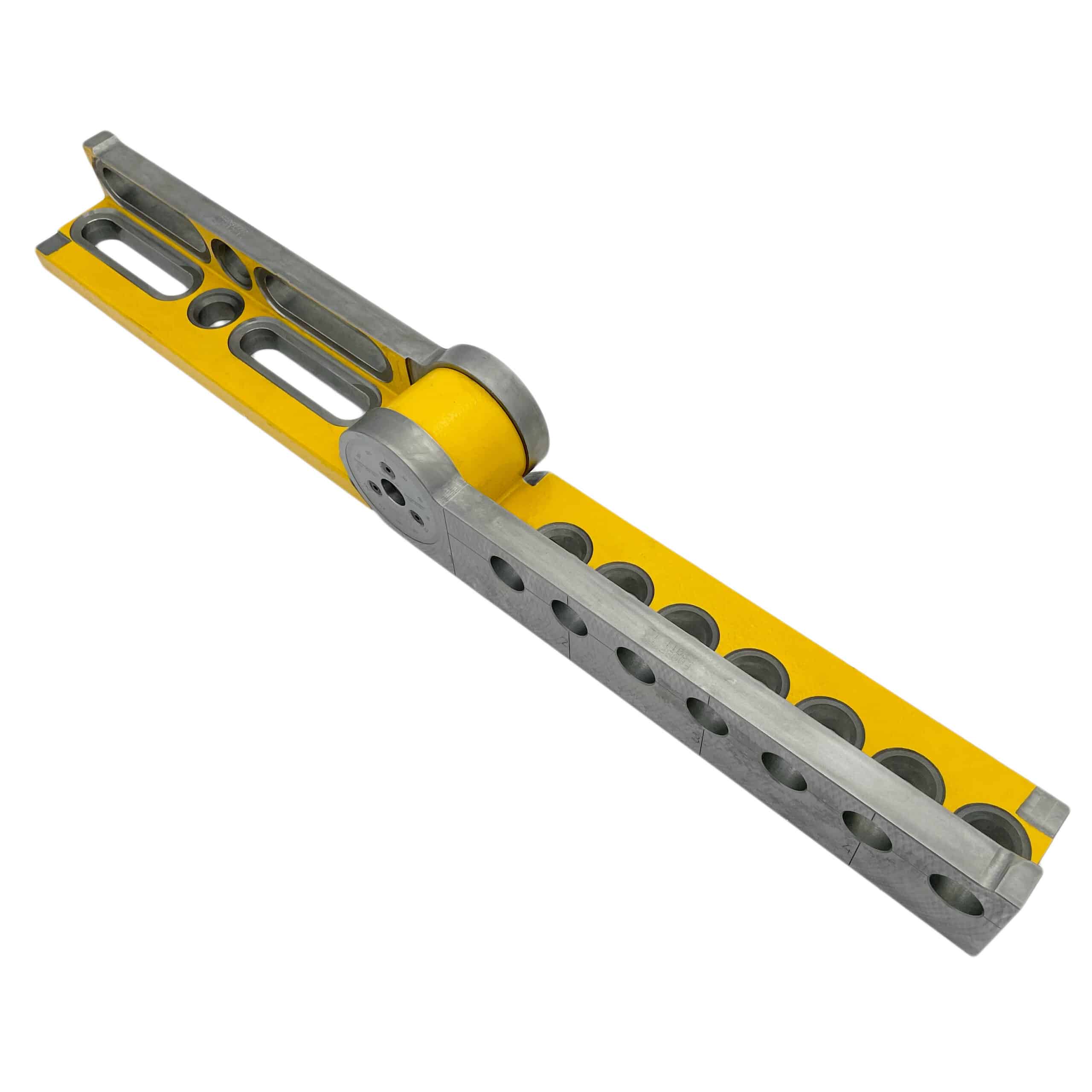

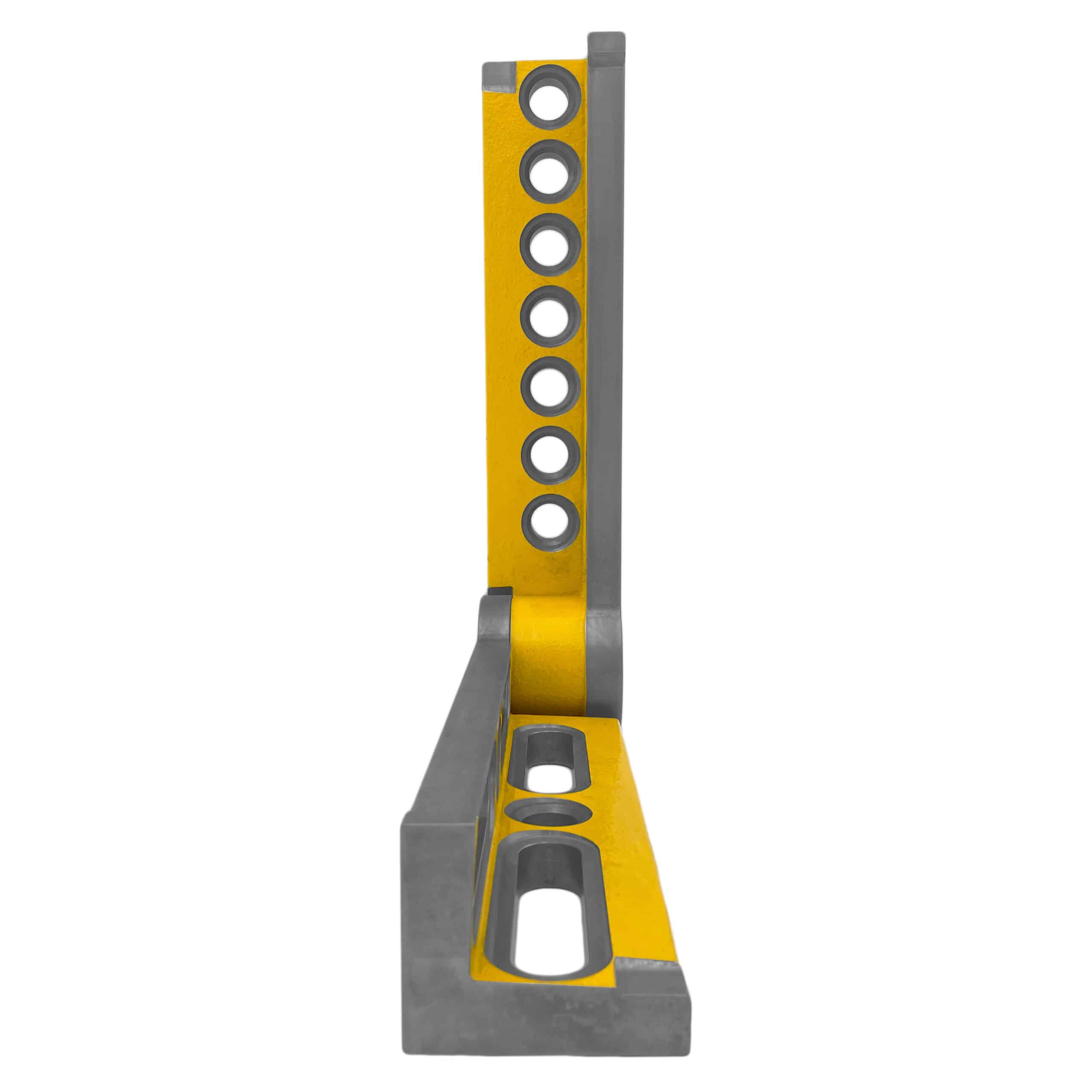

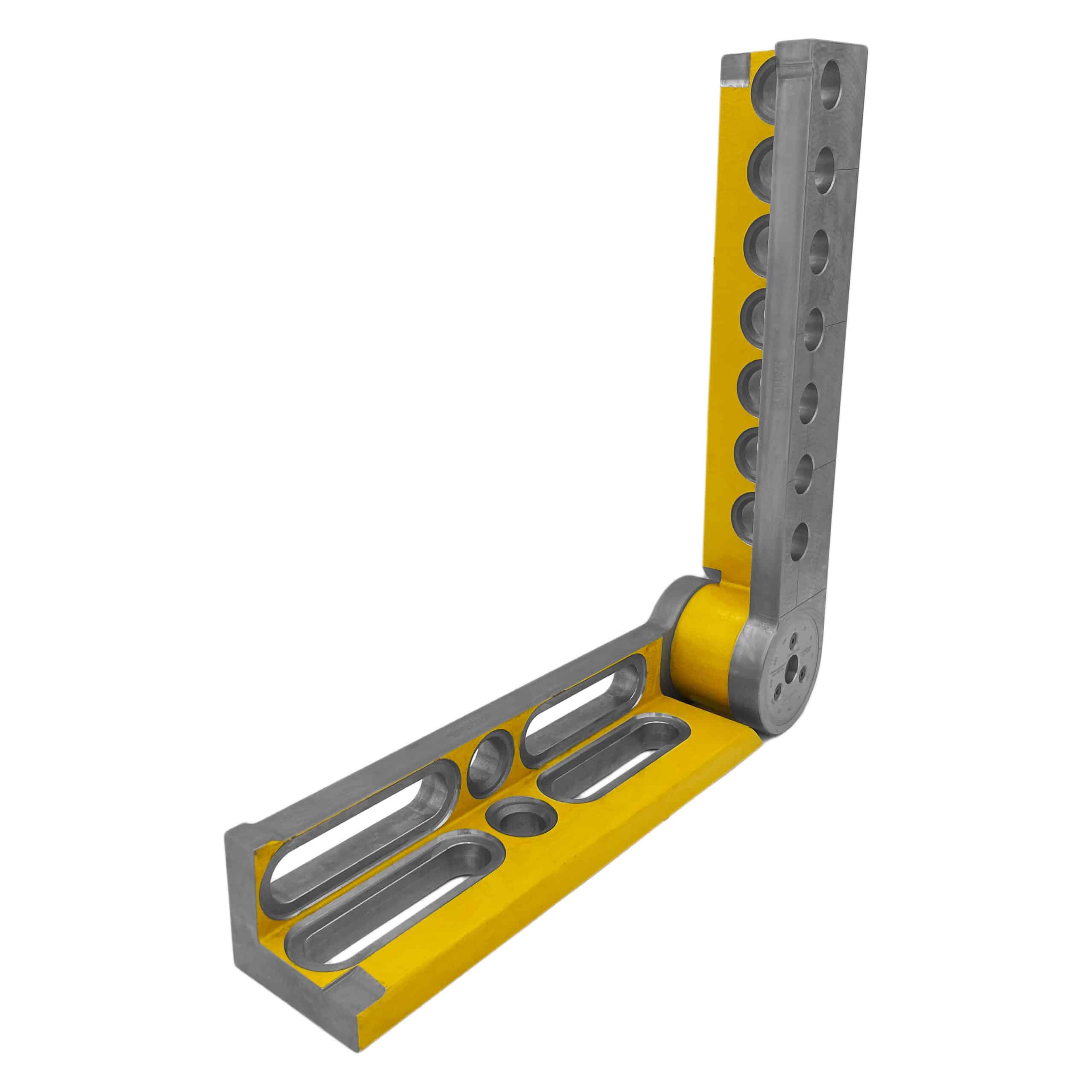

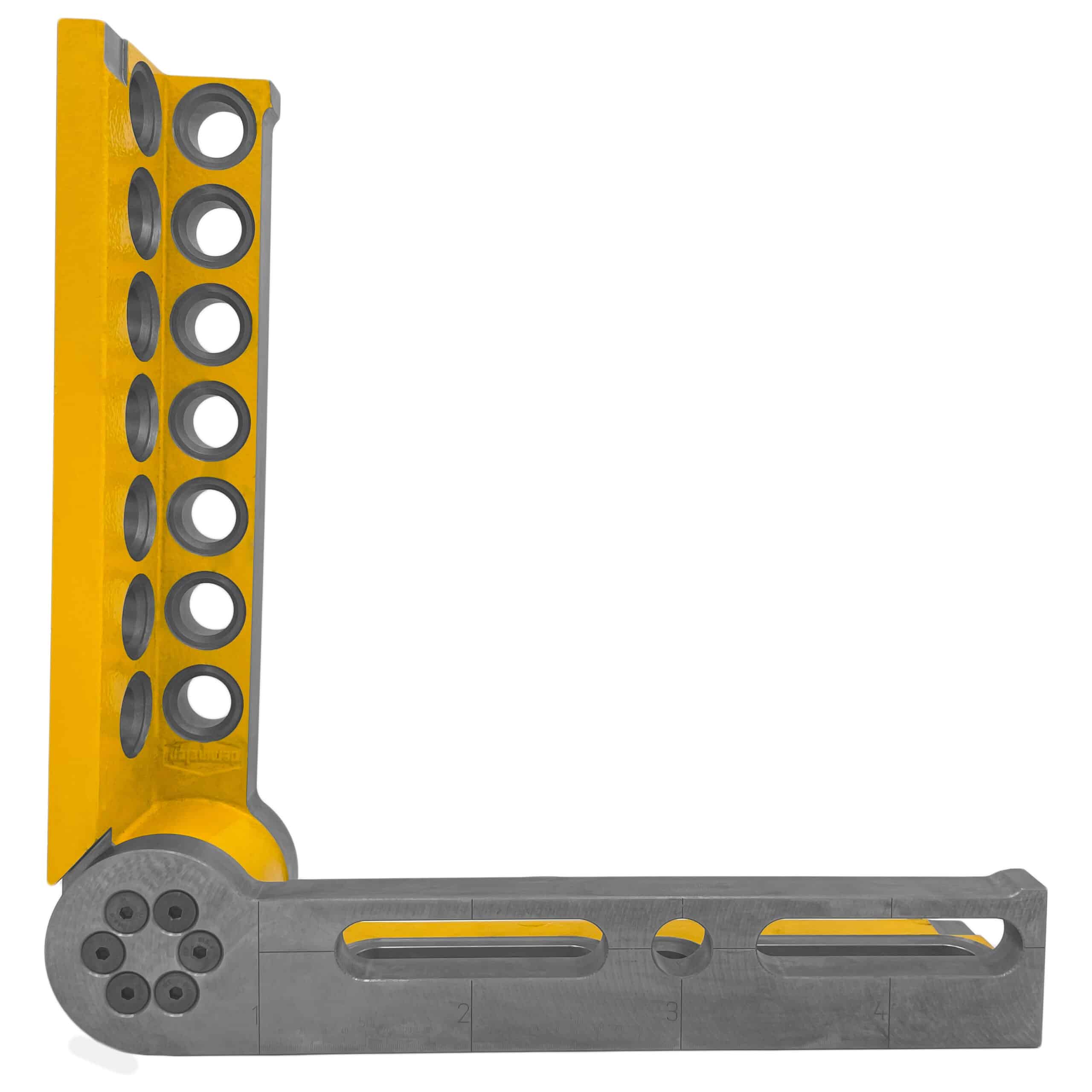

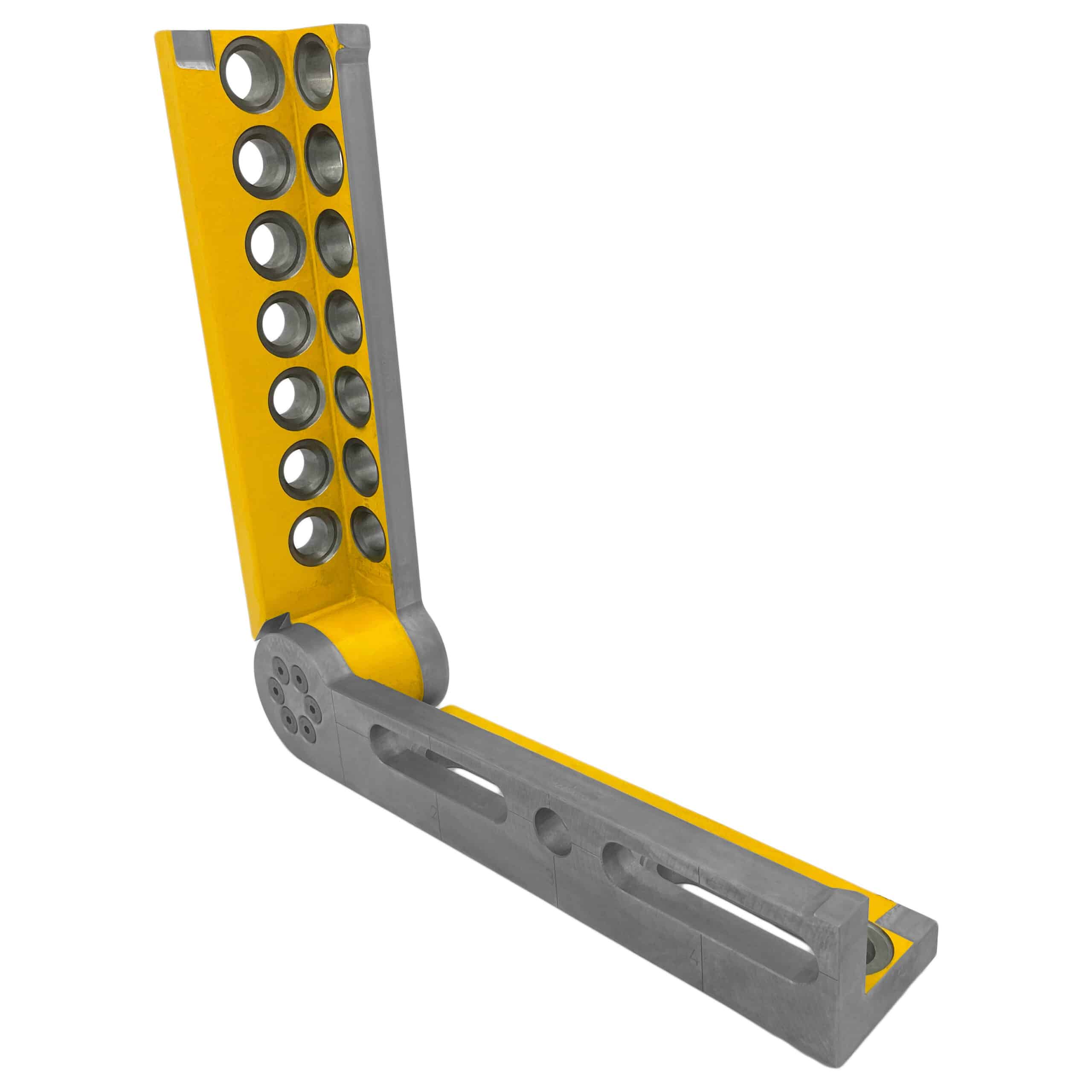

The Universal Pivot & Tilt Angle (RH) is engineered for versatile positioning with a continuously adjustable range between 0° and 225°. It features 1mm precision scaling and grid lines for maximum precision clamping, allowing for accurate dimension adjustments on the 3D worktable. The hydromechanical clamping system supports up to 1600Nm torque and is maintenance-free, ensuring reliable performance. Its combination of system bores and oblong holes offers numerous application possibilities. With the ability to be used both horizontally and vertically, and larger dimensions than part 3008 for added versatility and stability, it is a robust choice for demanding tasks. The hex screw allows for precise angle adjustments using a 14mm Allen key.
Length = 425mm
Width = 100mm
Weight = 22kg
