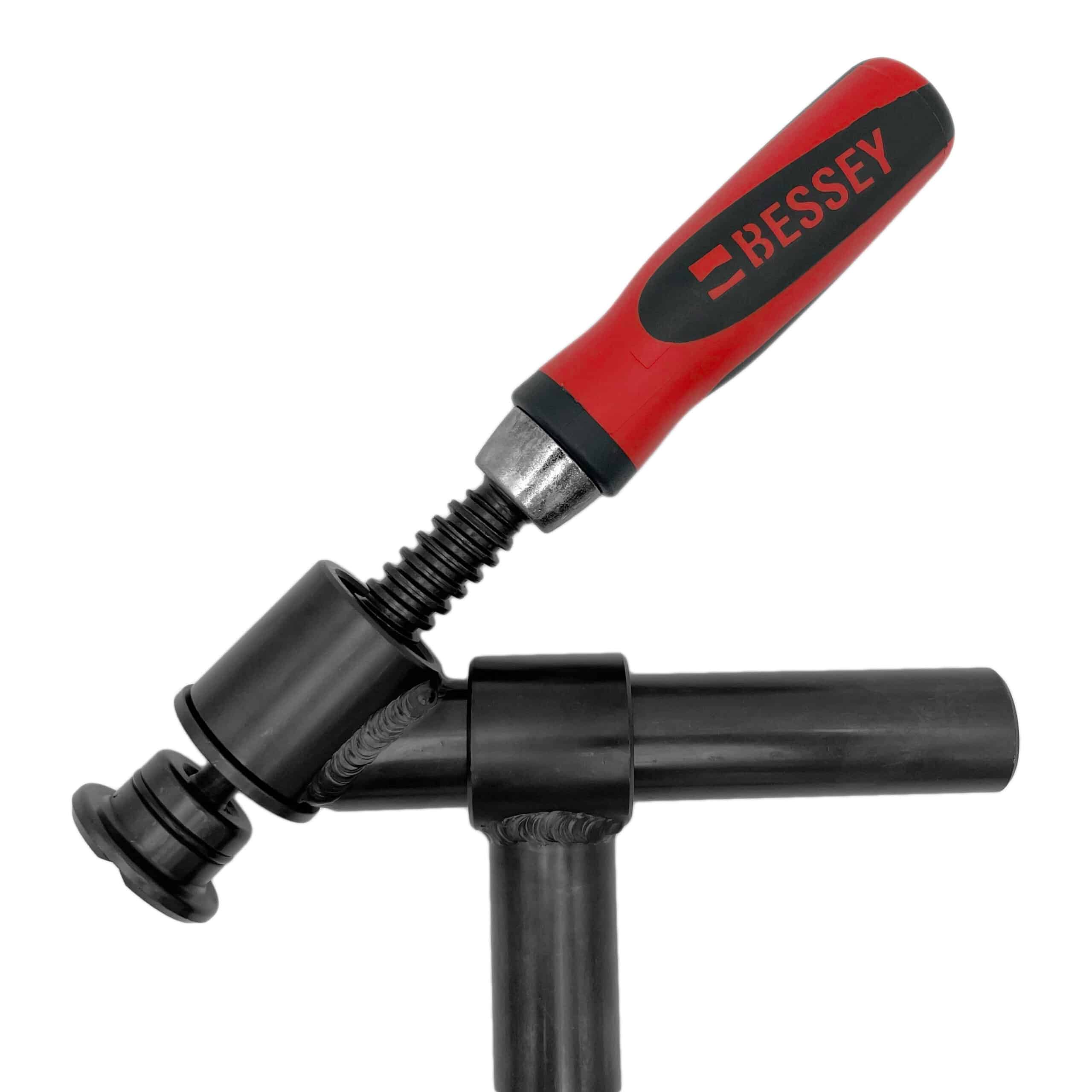

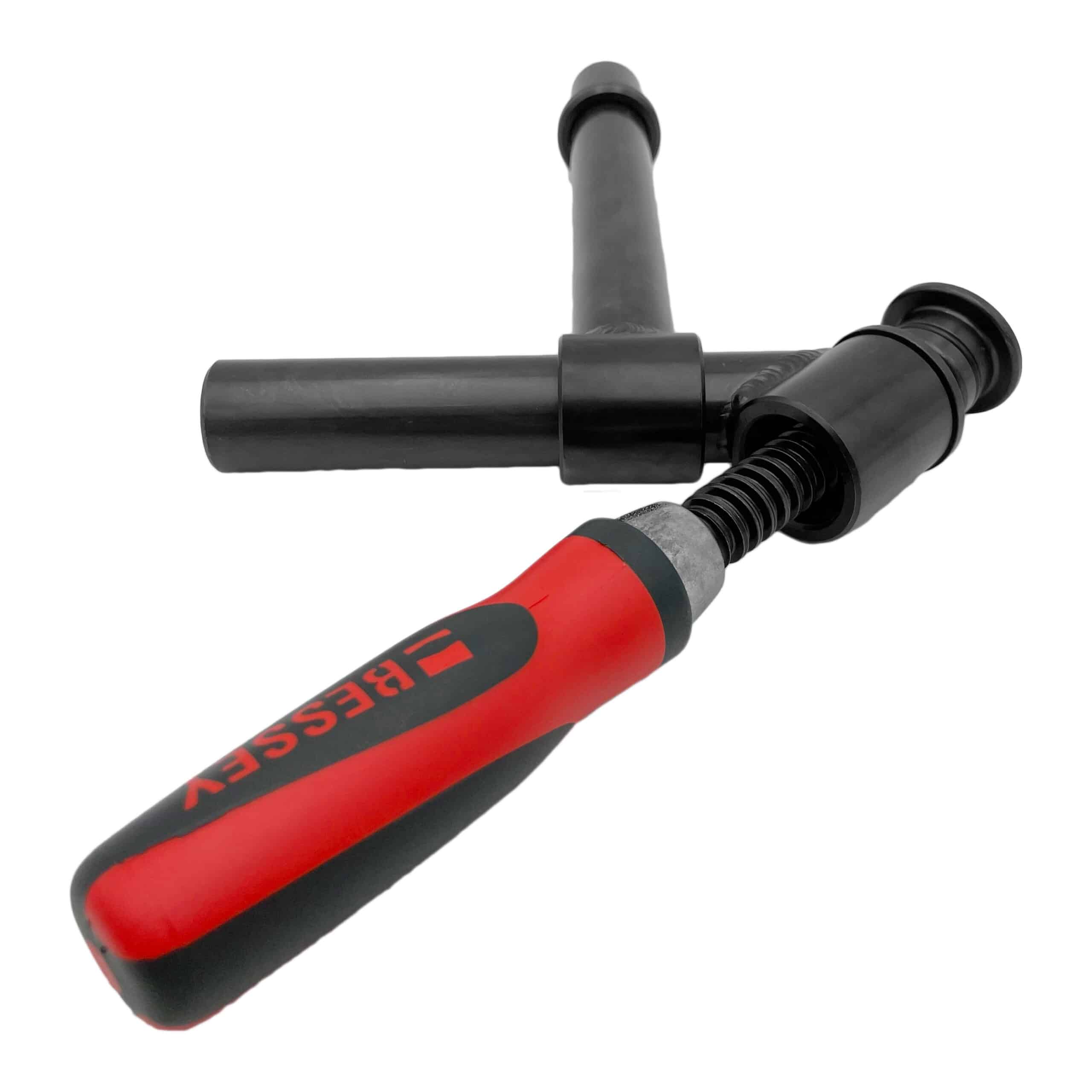

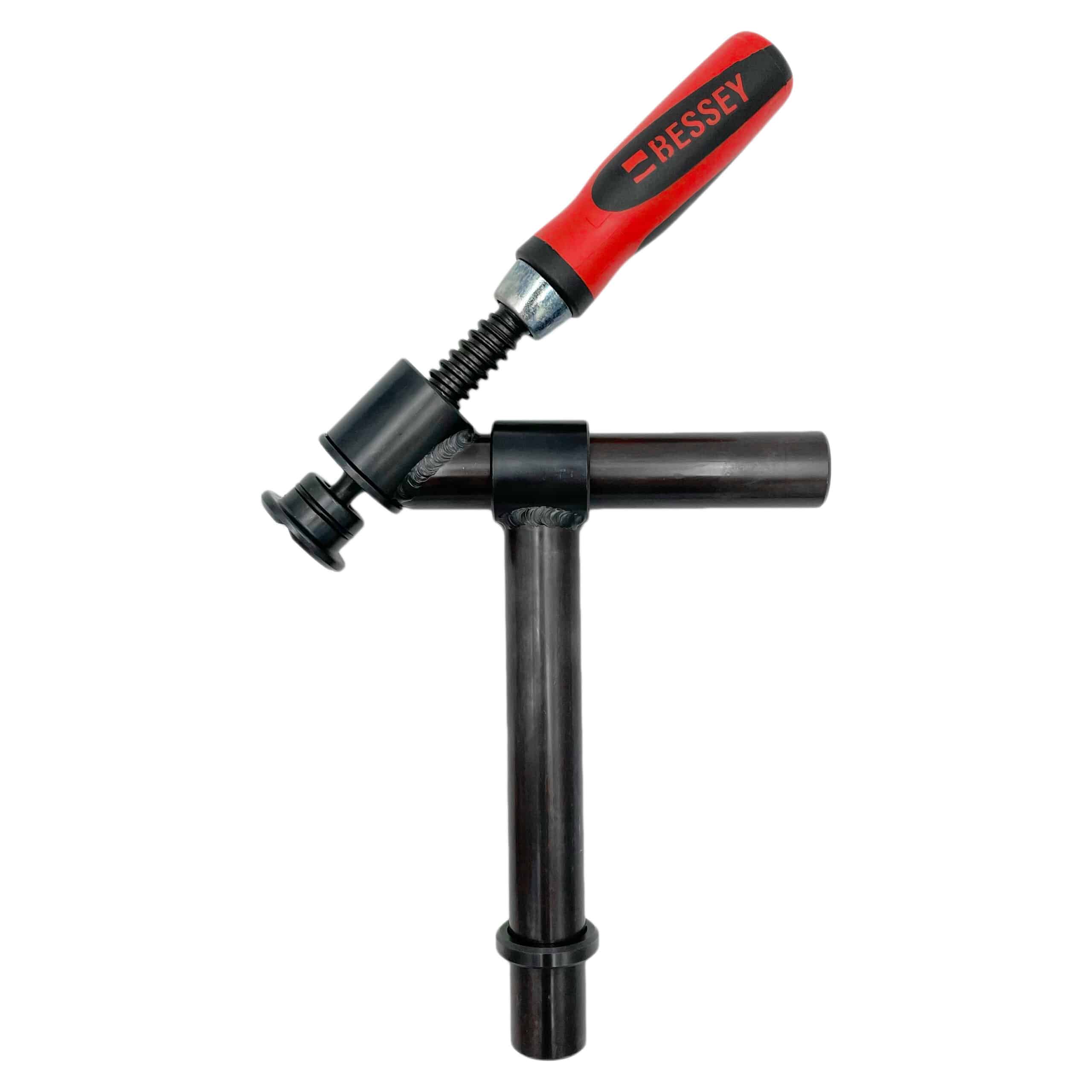

“The Clamp – Angled 45° Spindle delivers fast, powerful, and precise clamping for various workpieces, especially prismatic ones. With a 45° orientation to the system bore, it offers flexible and efficient clamping solutions. The spindle, clamping pad, and clamping tubes are all interchangeable, expanding the range of applications.

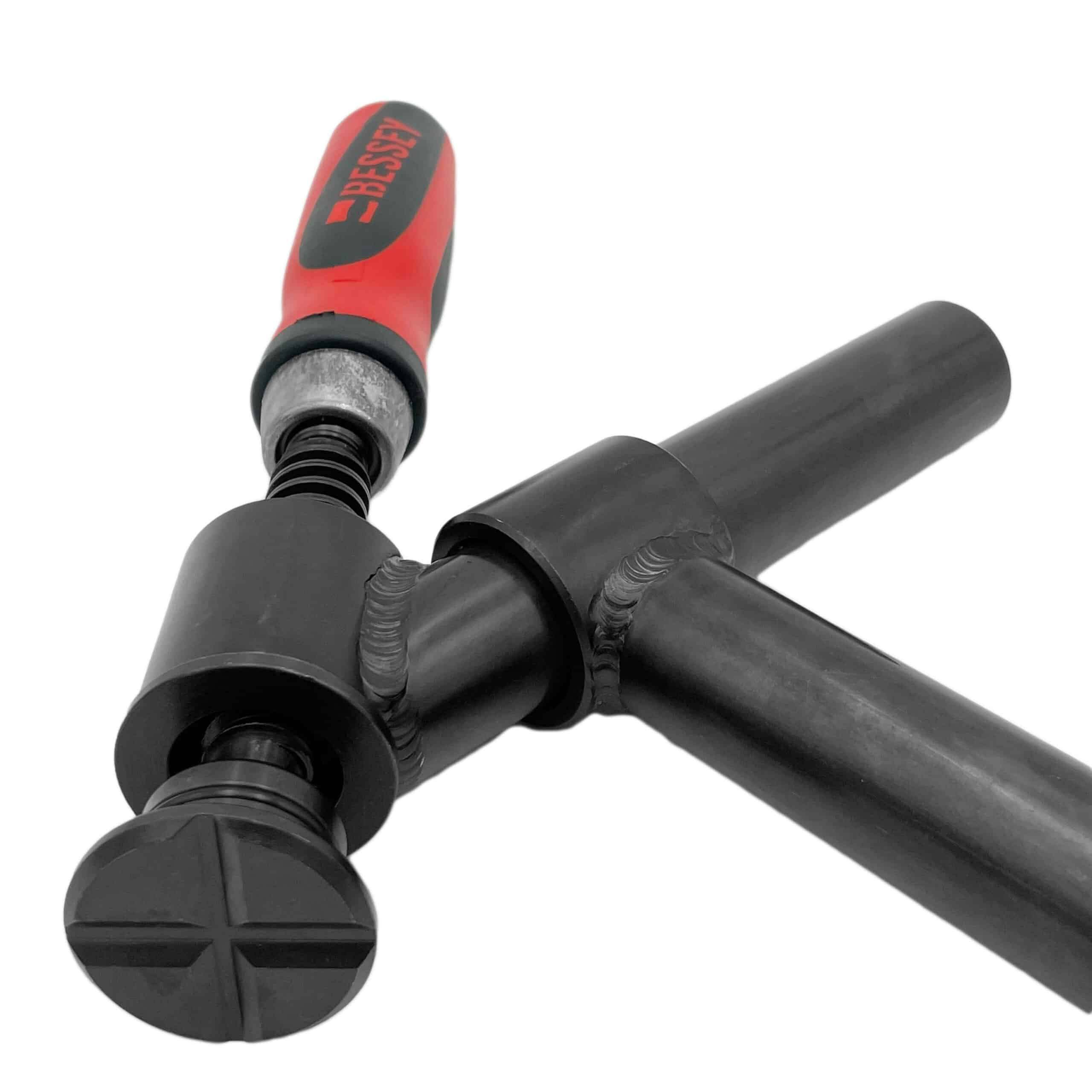

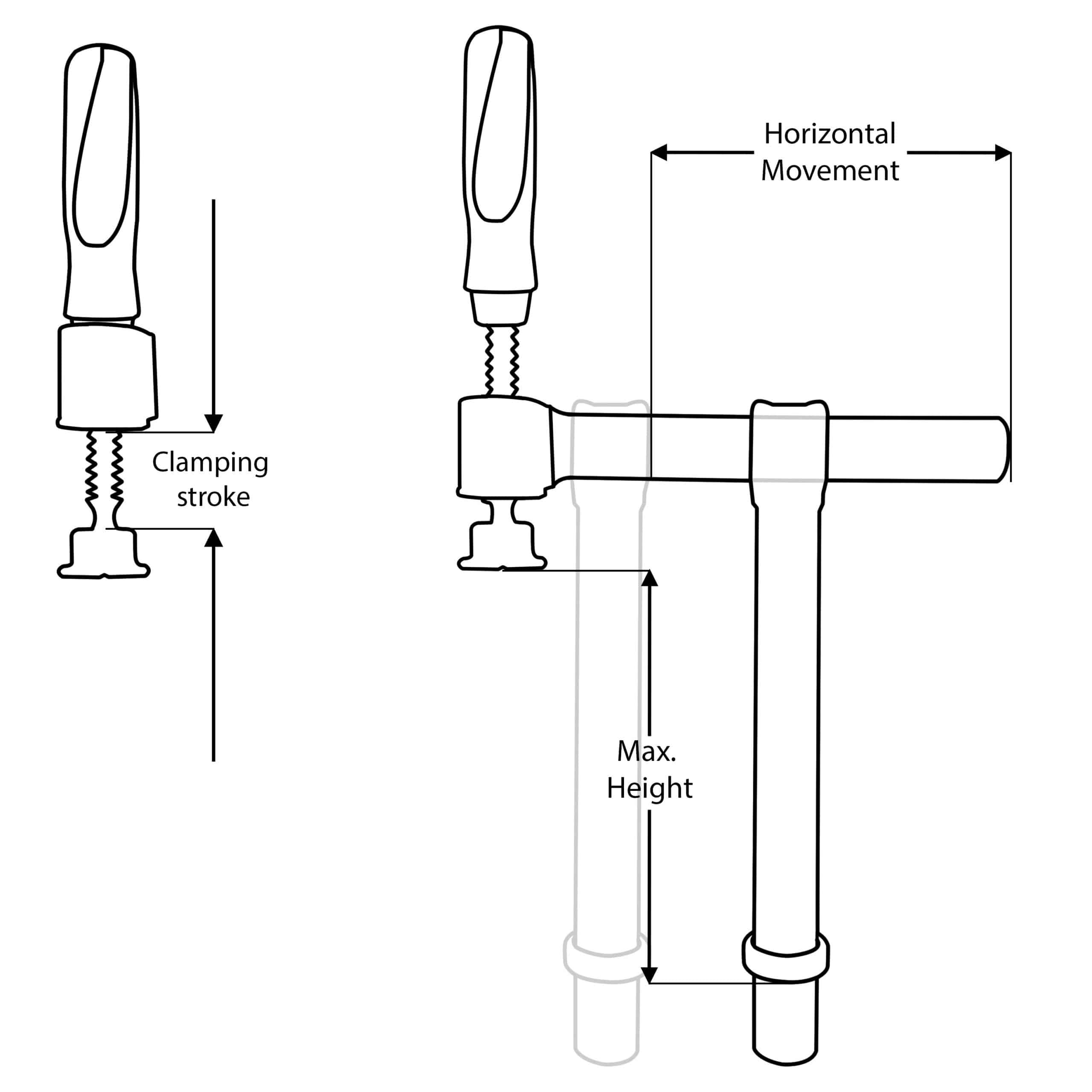

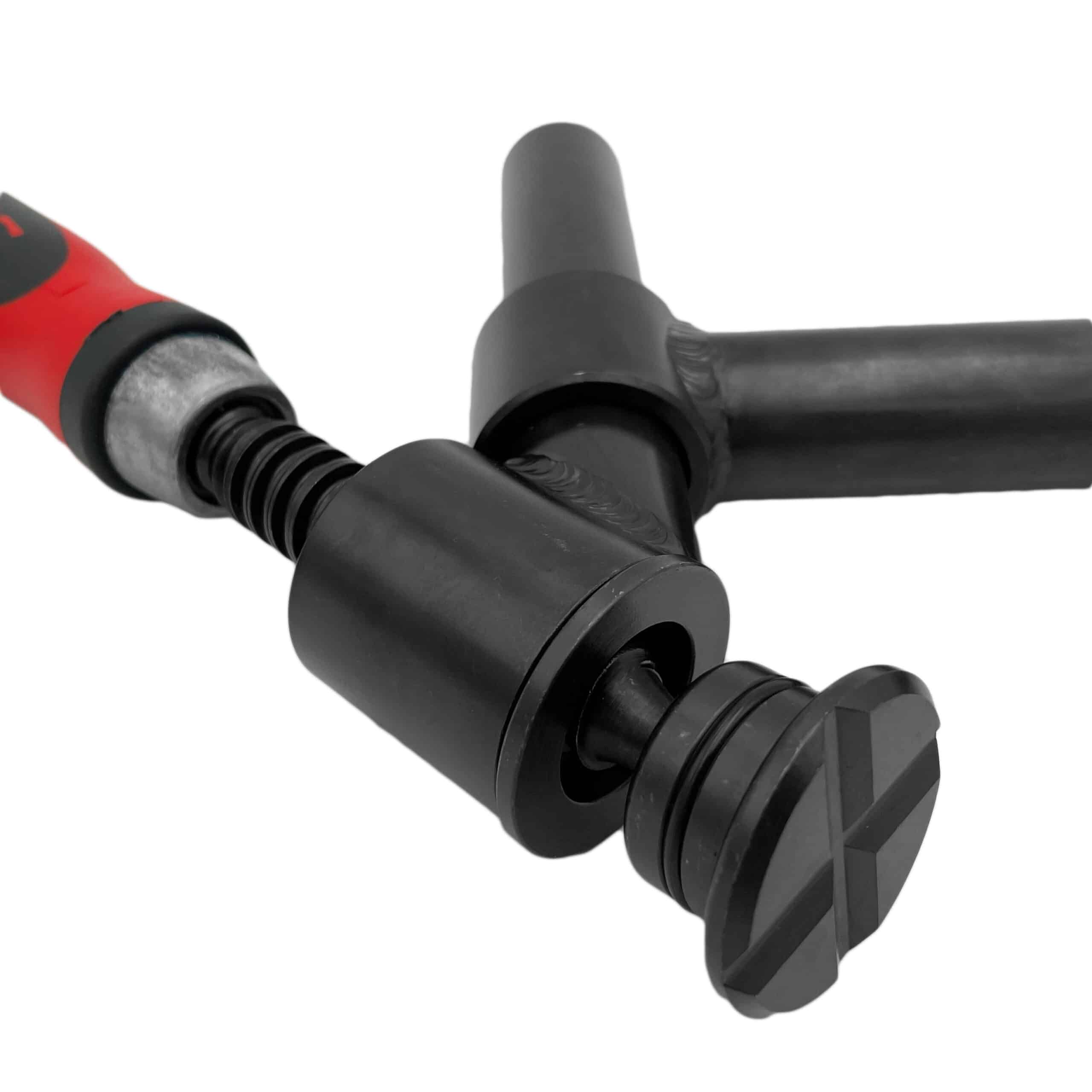

The clamping pad can double as a workpiece support, stop, or small V-block when used in any D28 system bore. It provides 80mm of horizontal movement, with a maximum height of 160mm and a clamping stroke of 50mm. A stop ring ensures accurate height fixation, while the spindle features a slip-resistant rubberised handle for ease of use. The clamp also allows for the insertion of a clamping bridge to enhance versatility.

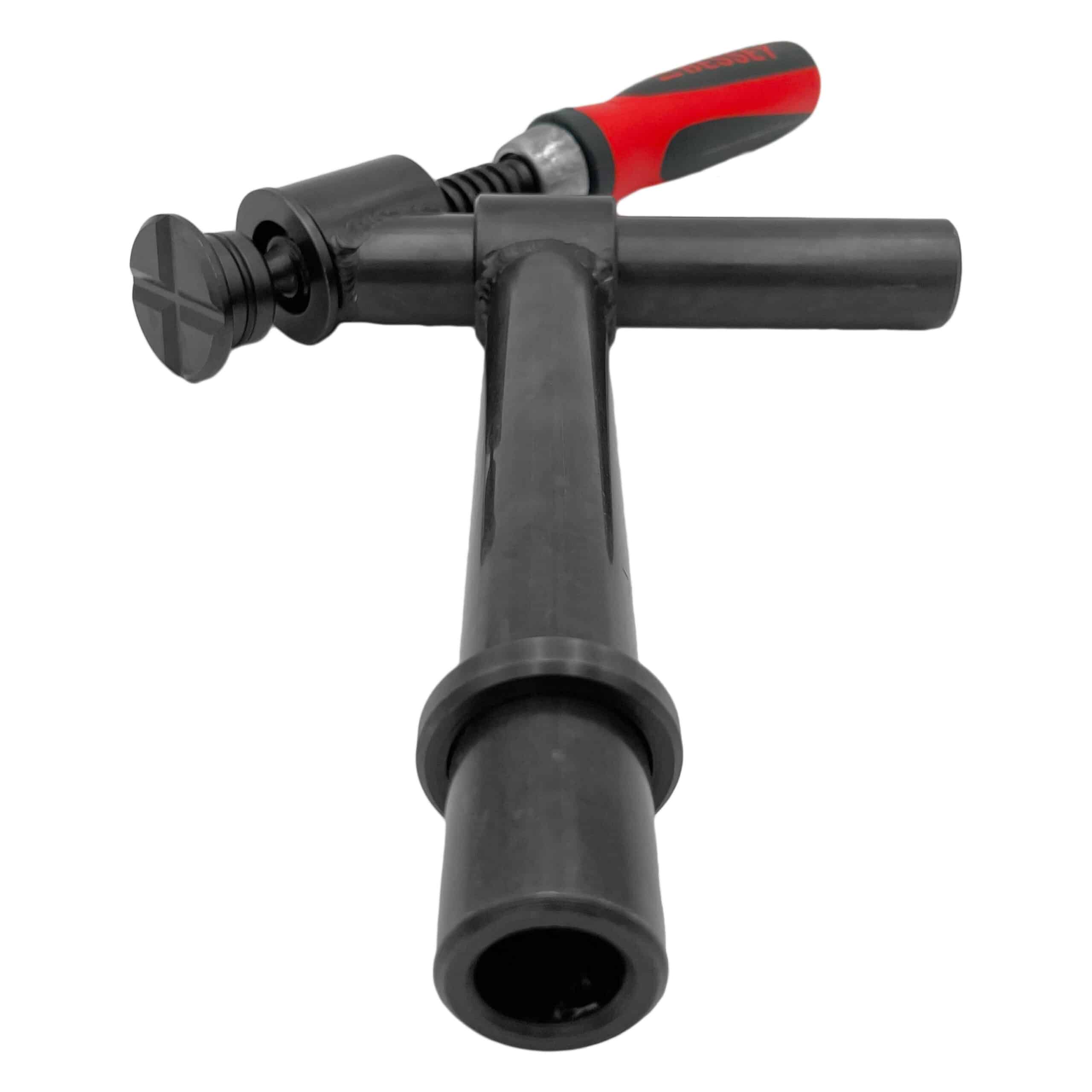

The thread bushing fits all D28 system bores, and the graphite-impregnated thread ensures maintenance-free durability. Blackened clamping tubes further enhance durability, making this tool ideal for clamping prismatic or uniquely shaped workpieces with precision and efficiency.”
