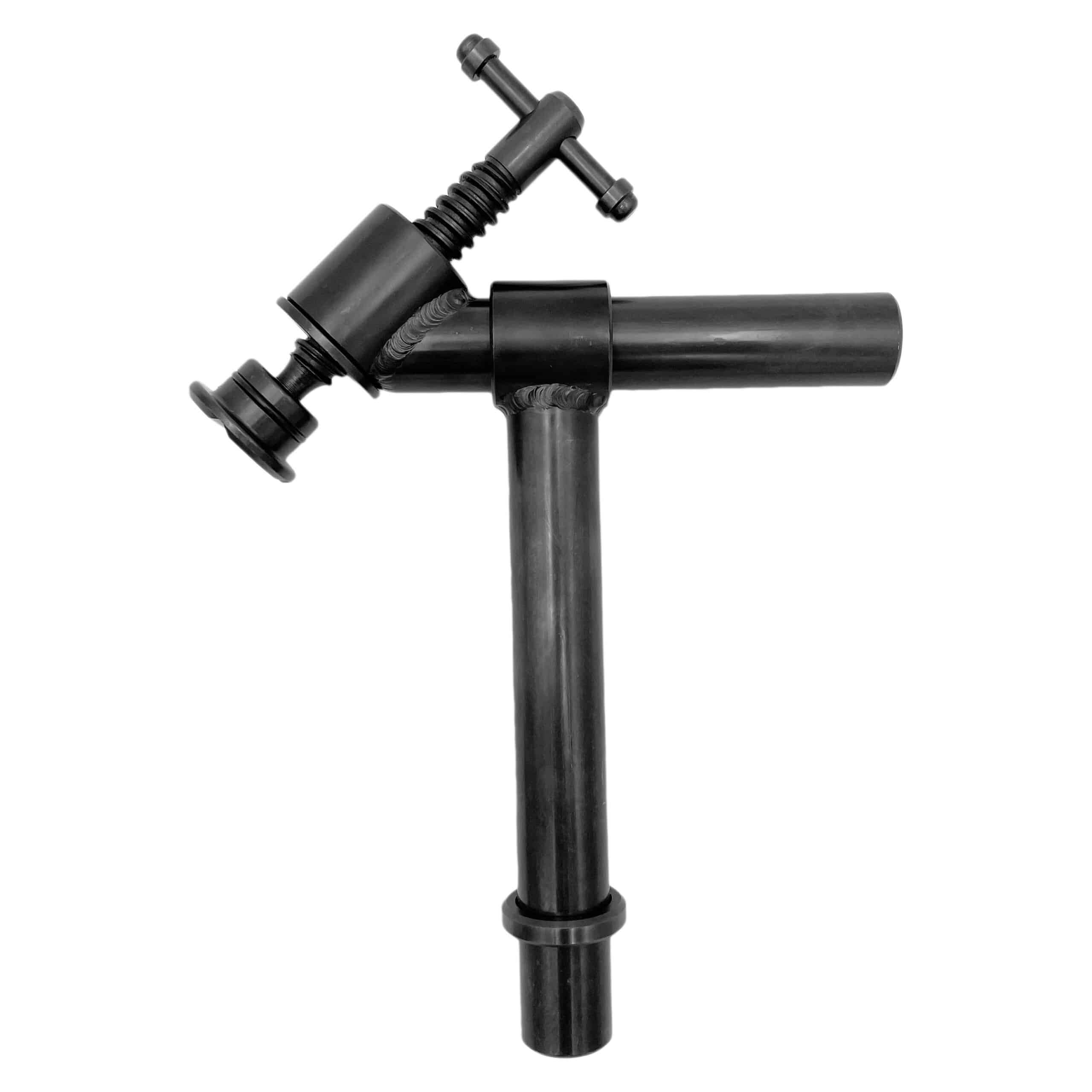

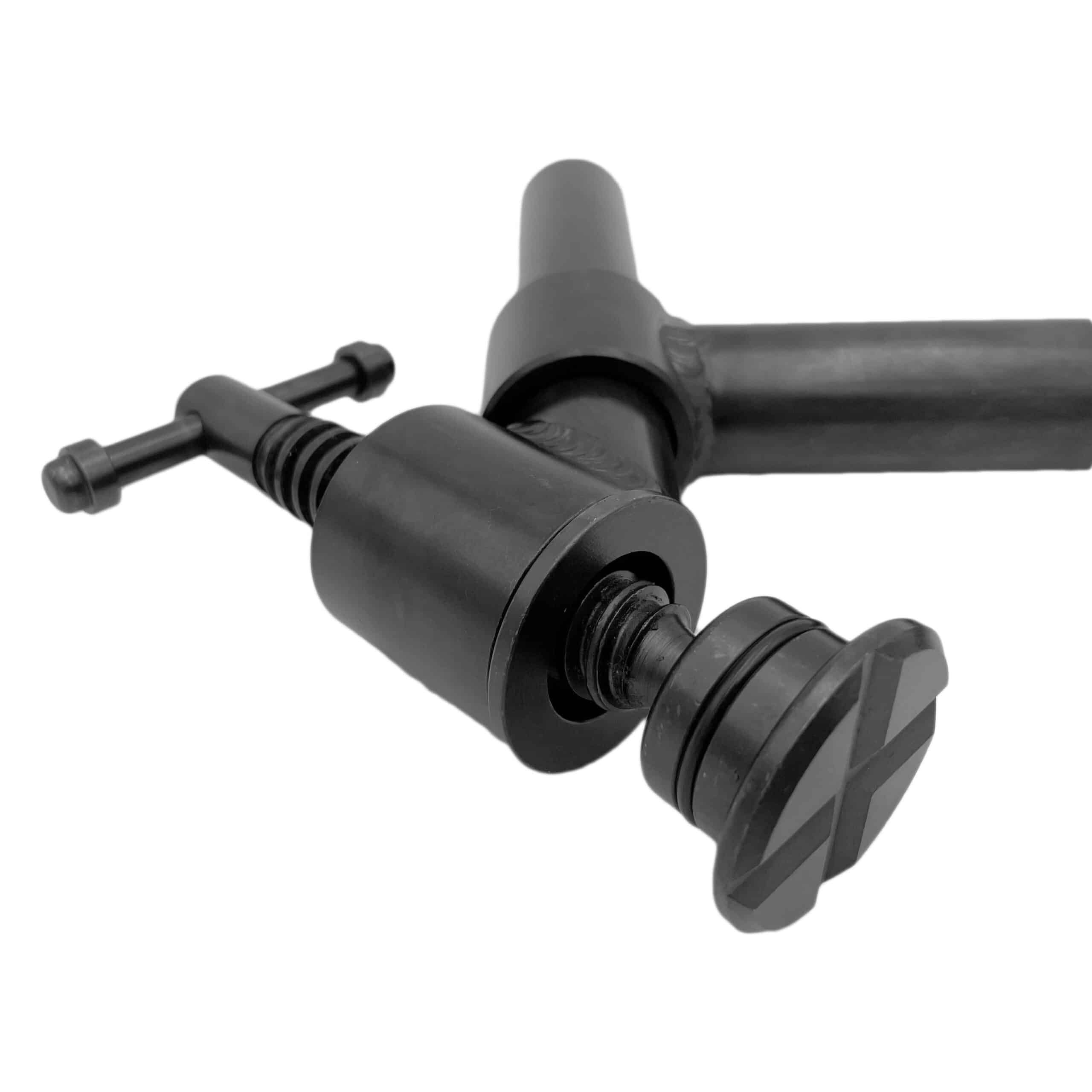

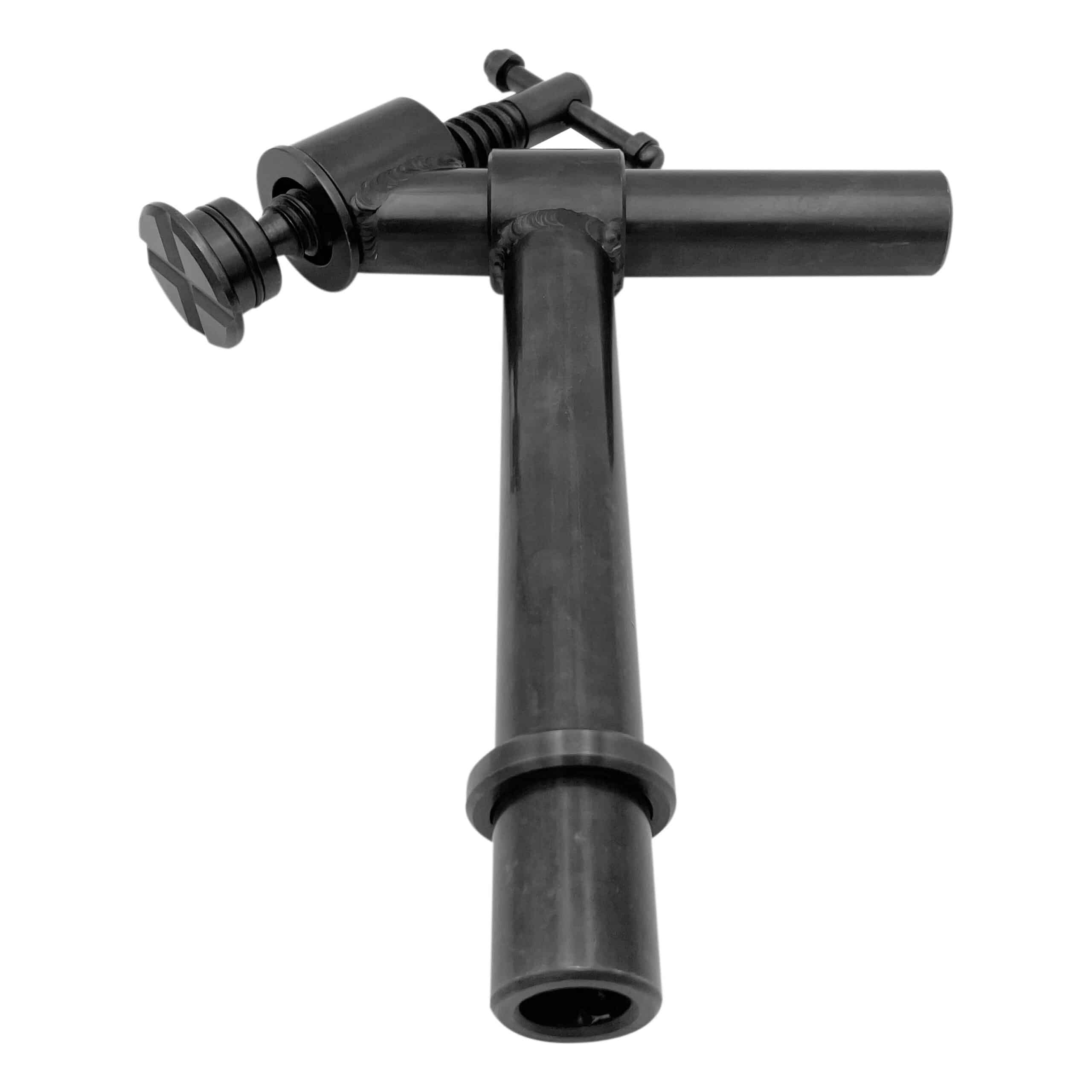

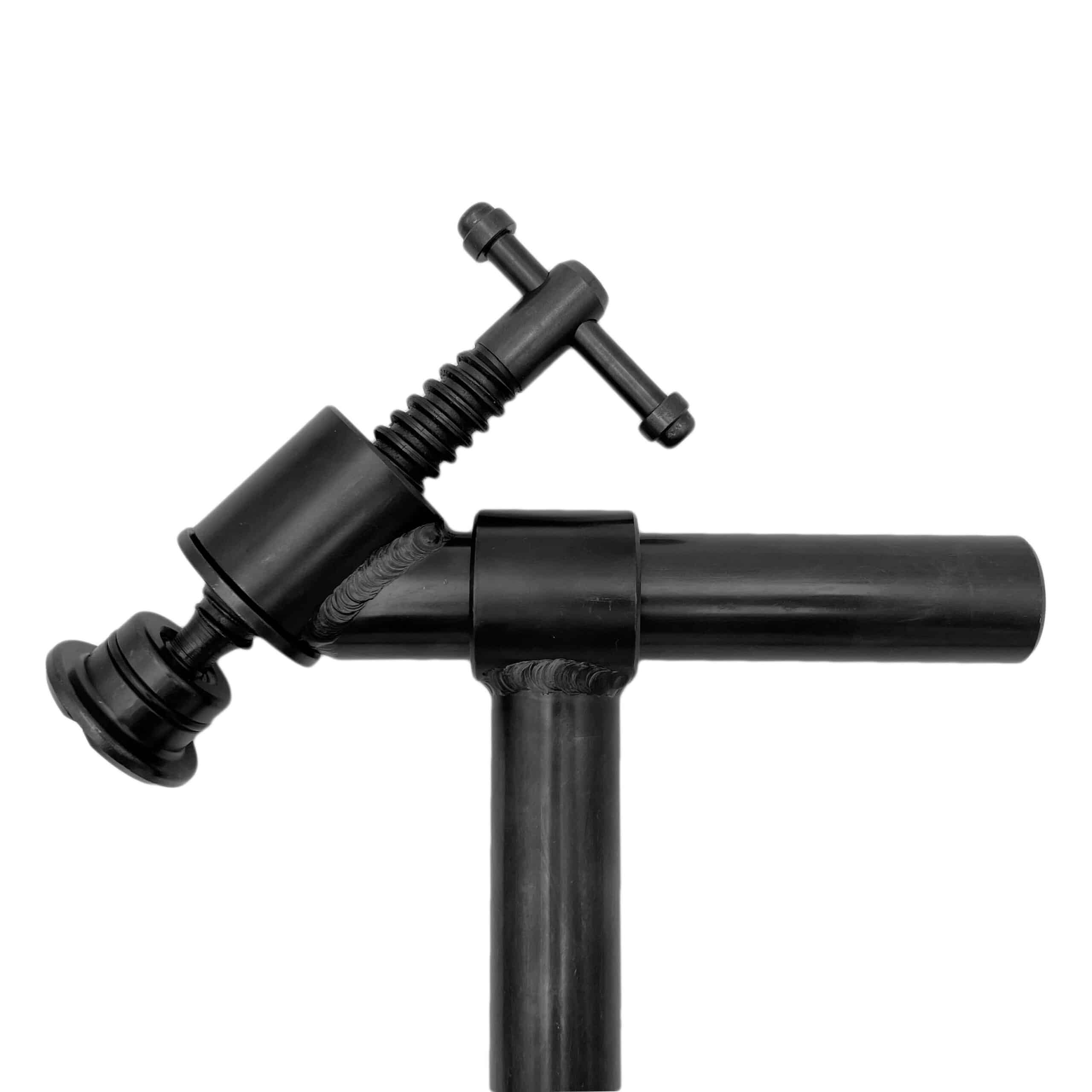

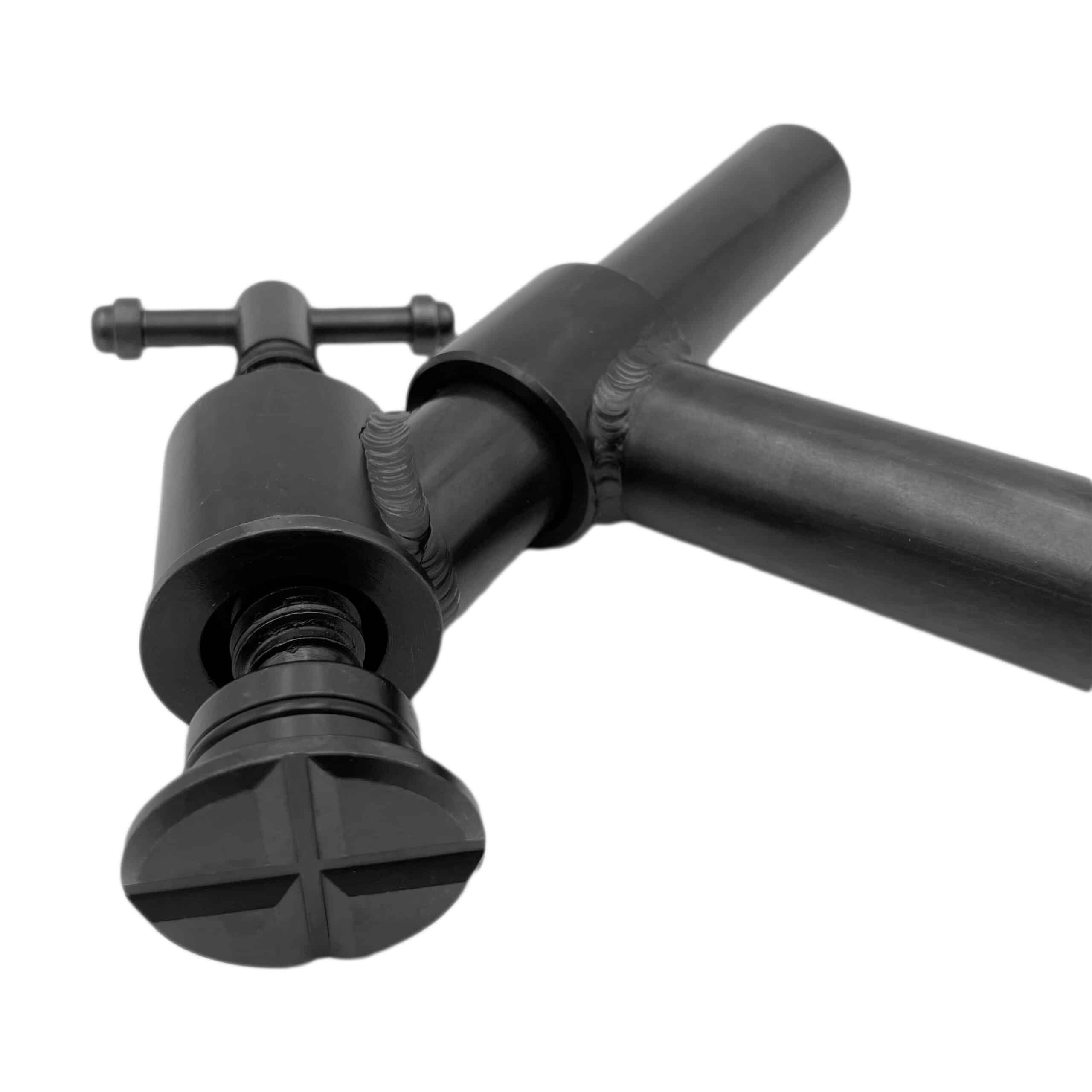

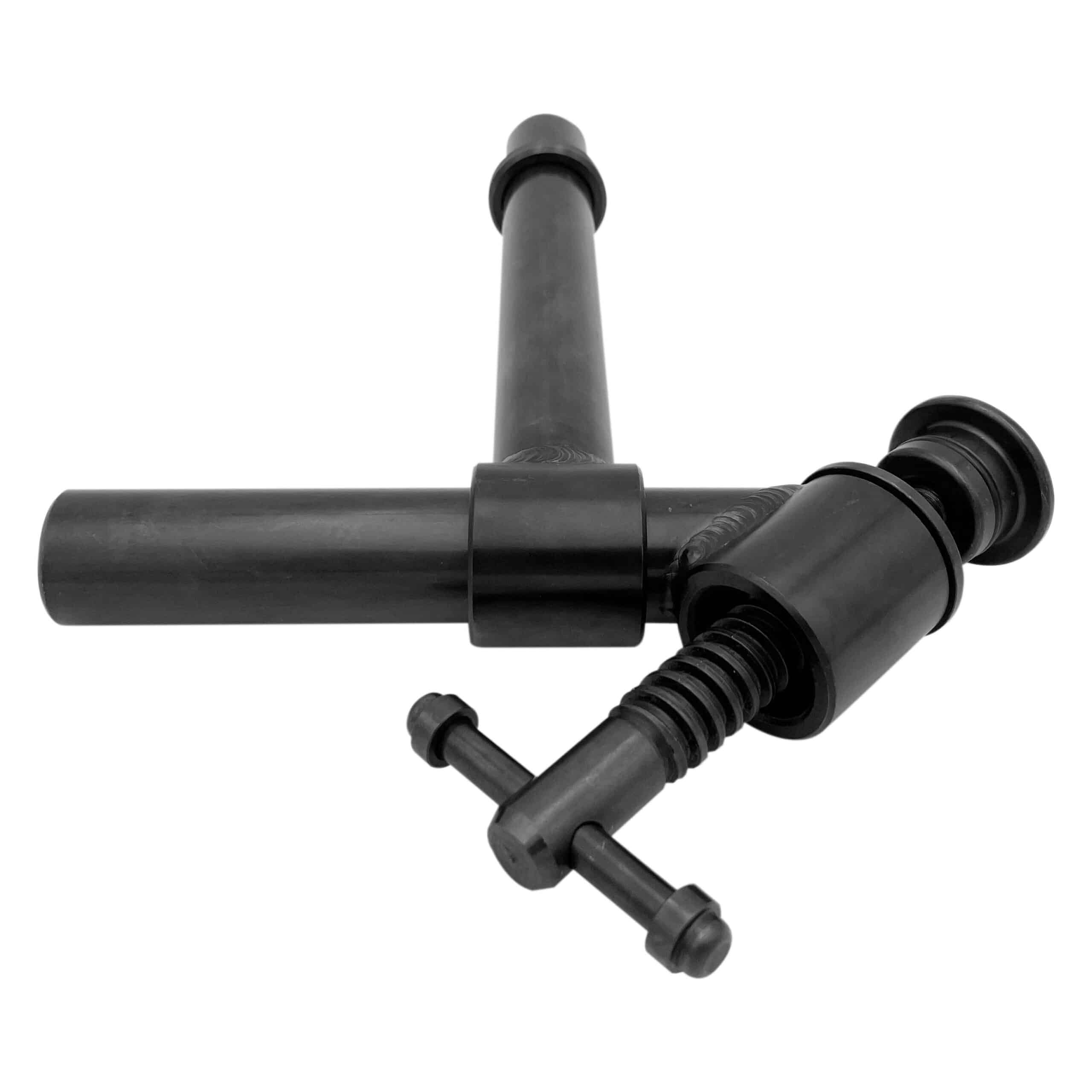

Clamp – Angled 45° T-Handle

7009-T

SKU: 7009-T Category:

“The Clamp Angled 45° T-Handle provides fast, powerful, and precise clamping for a wide variety of workpieces, especially prismatic ones. With a 45° orientation to the system bore, it is ideal for angled clamping applications. The spindle, clamping pad, and clamping tubes are interchangeable, offering versatility and extending the range of use.

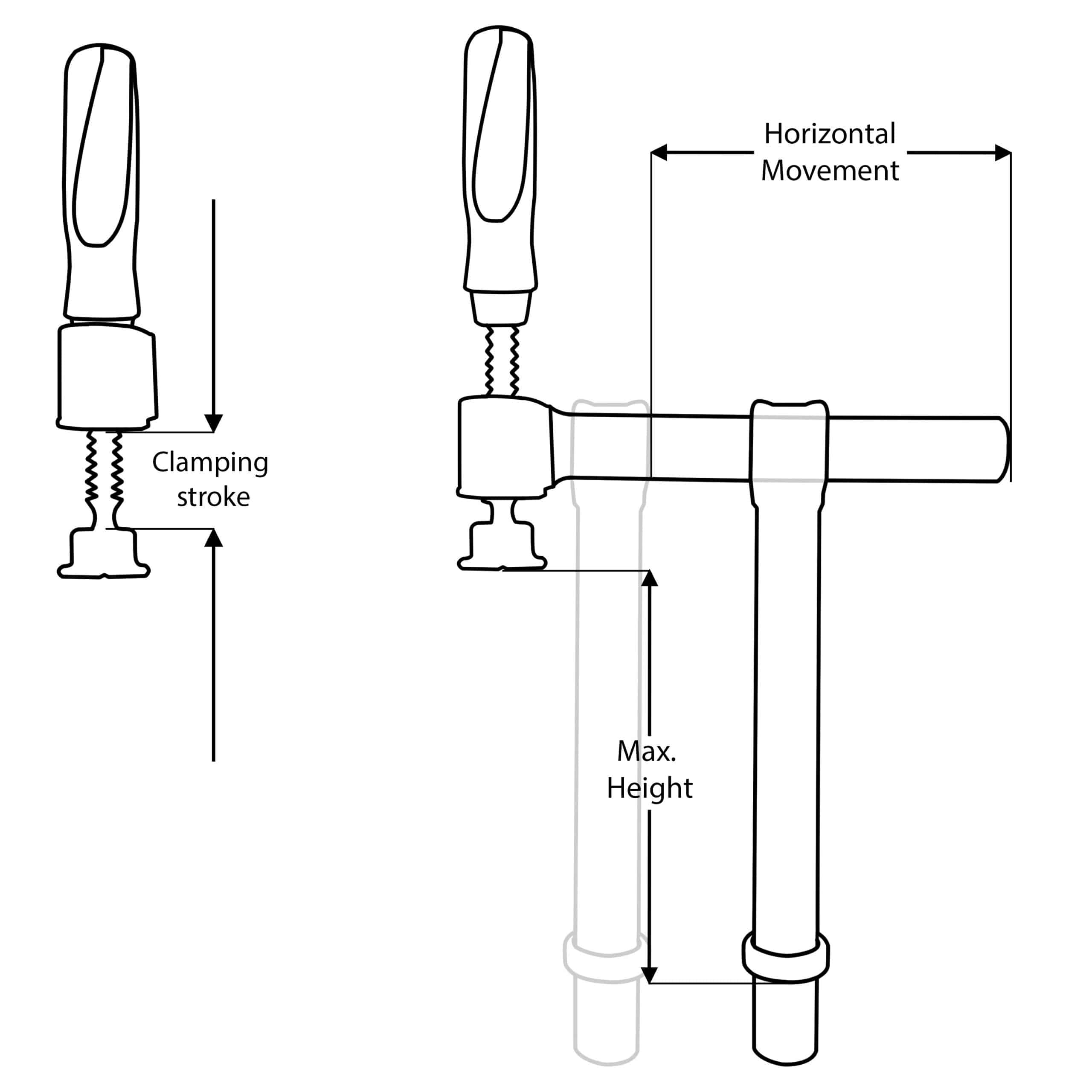

The clamping pad can serve as a workpiece support, stop, or small V-block when fitted in any D28 system bore. It provides 80mm of horizontal movement, with a maximum height of 160mm and a clamping stroke of 60mm. The sliding T-handle offers extra torque when tightening for a secure grip, while a stop ring ensures precise height fixation. The tool also allows for the insertion of a clamping bridge, further expanding its functionality.

The graphite-impregnated thread ensures maintenance-free durability, and the thread bushing fits all D28 system bores. The blackened clamping tubes add to its durability, making this clamp ideal for demanding applications that require accuracy and reliability.”

$259.00(exc GST)

Clamp – Angled 45° T-Handle Tech Specs

Part No.

7009-T
