Clamp – Compensating Swing Spindle – Expertline (Fixed)

7002

SKU: 7002 Category:

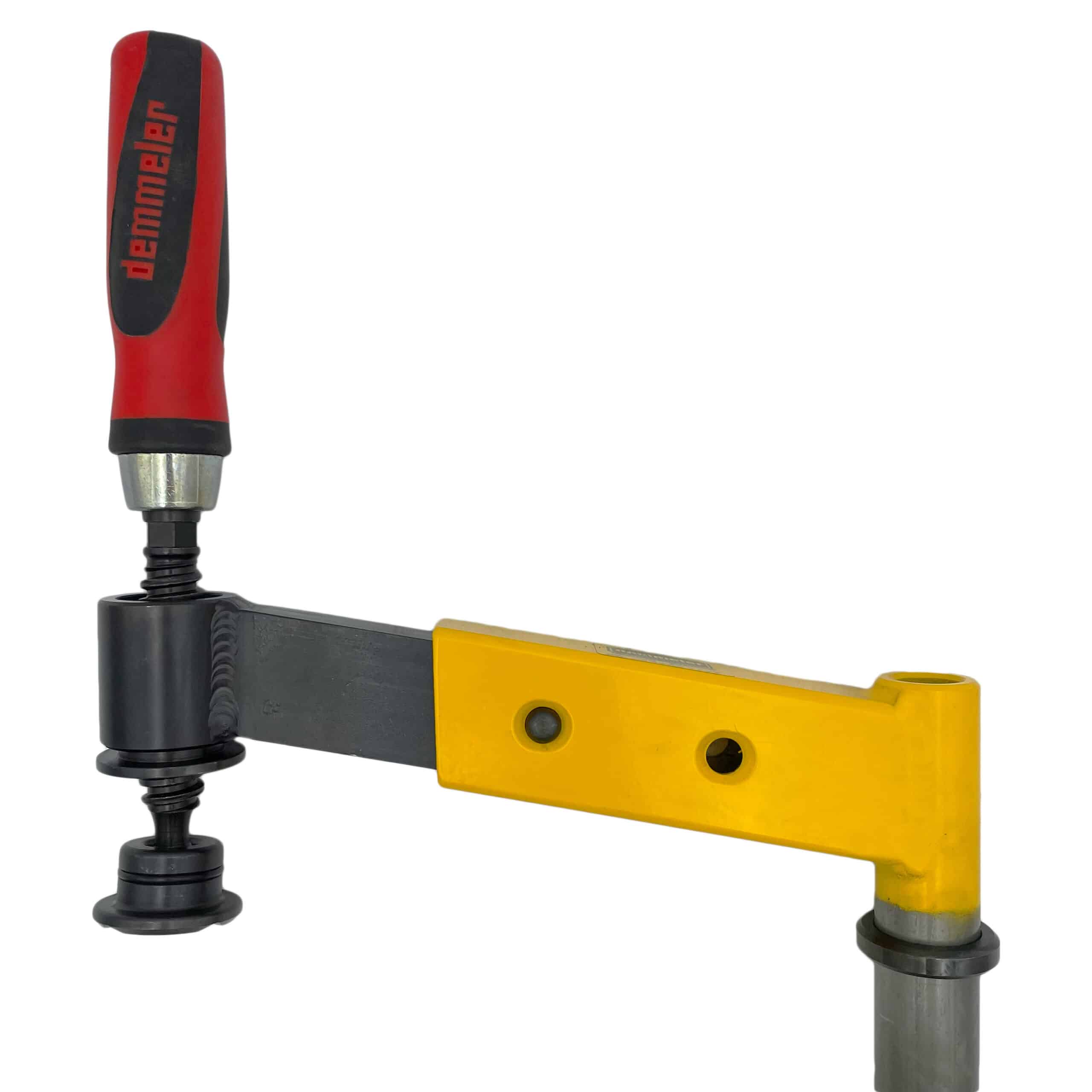

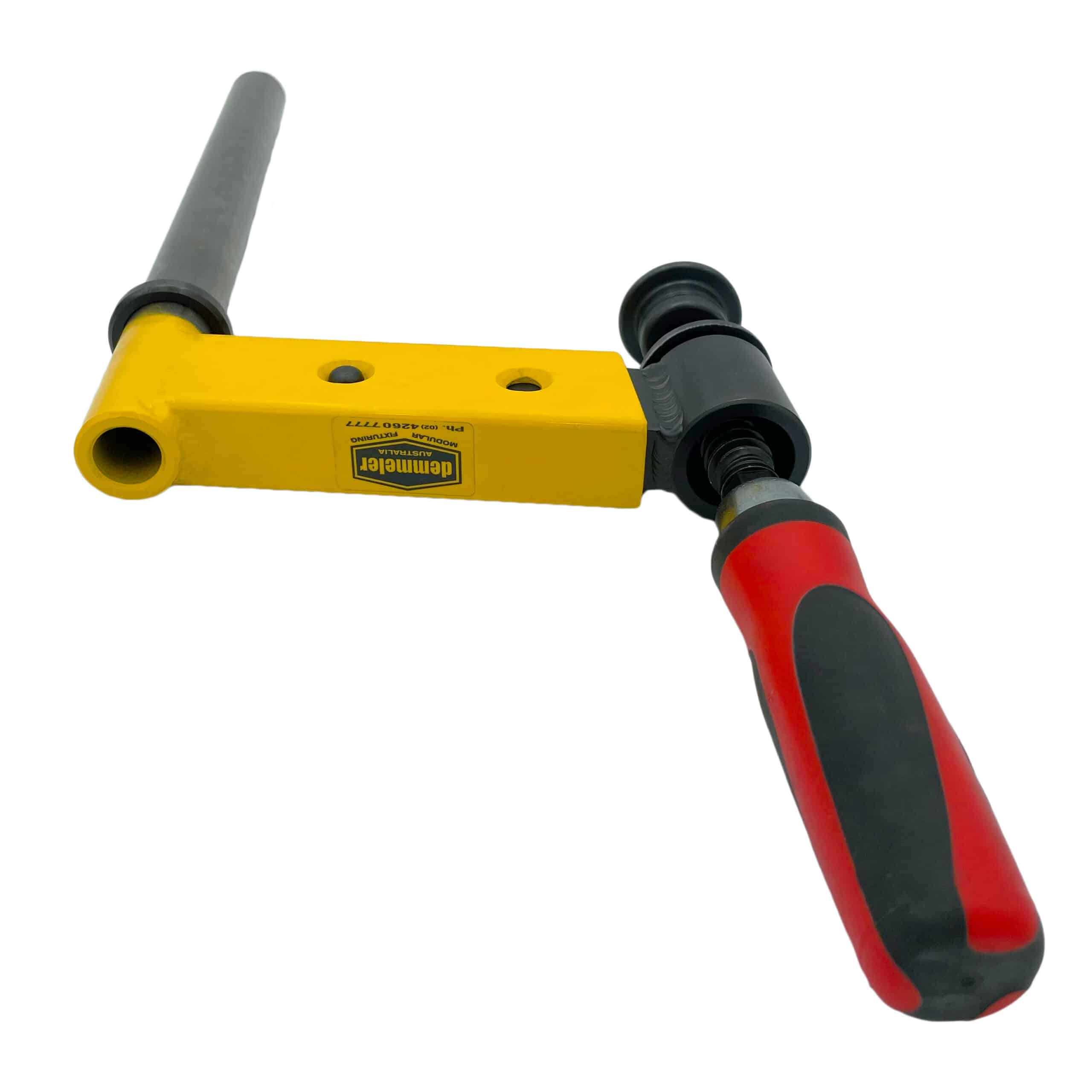

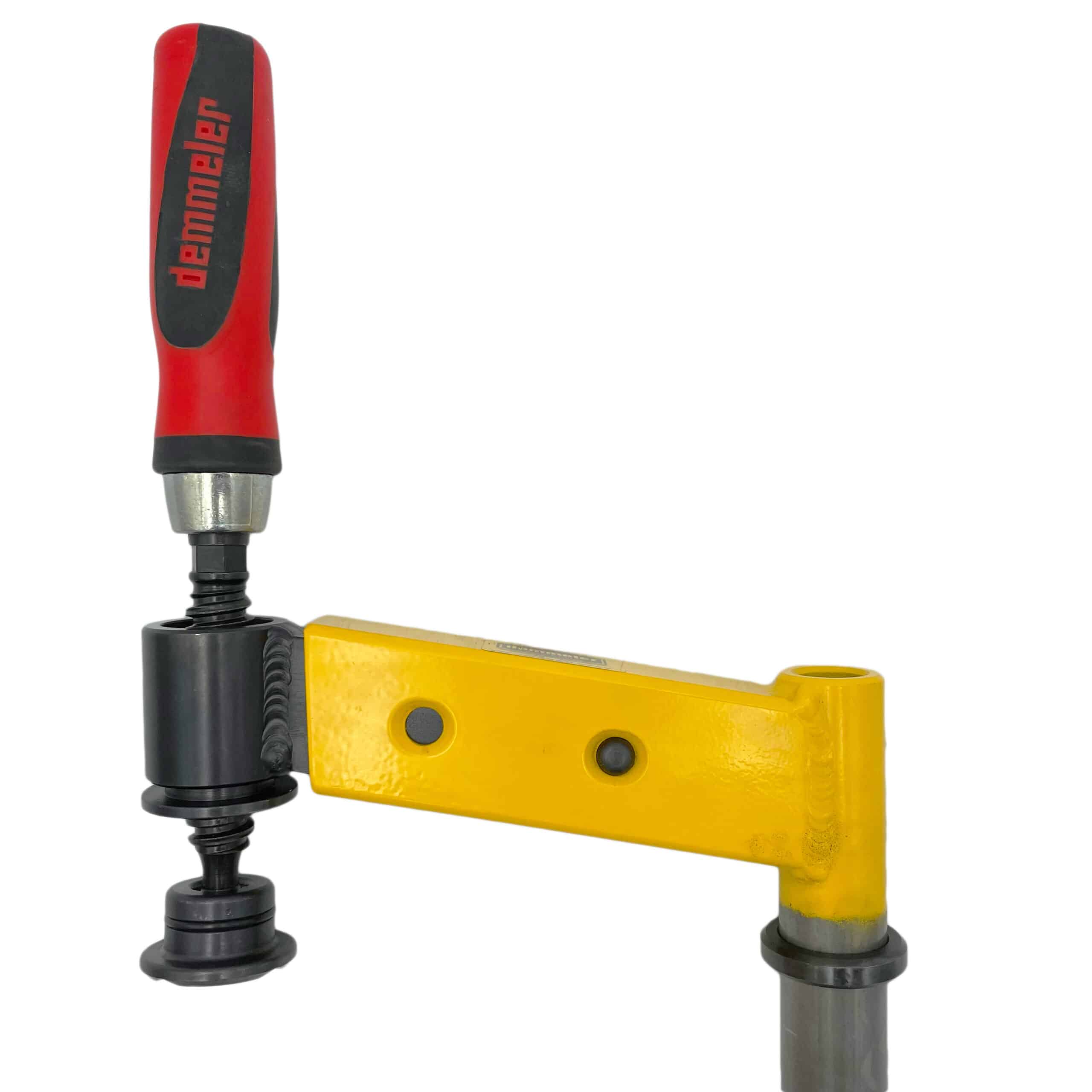

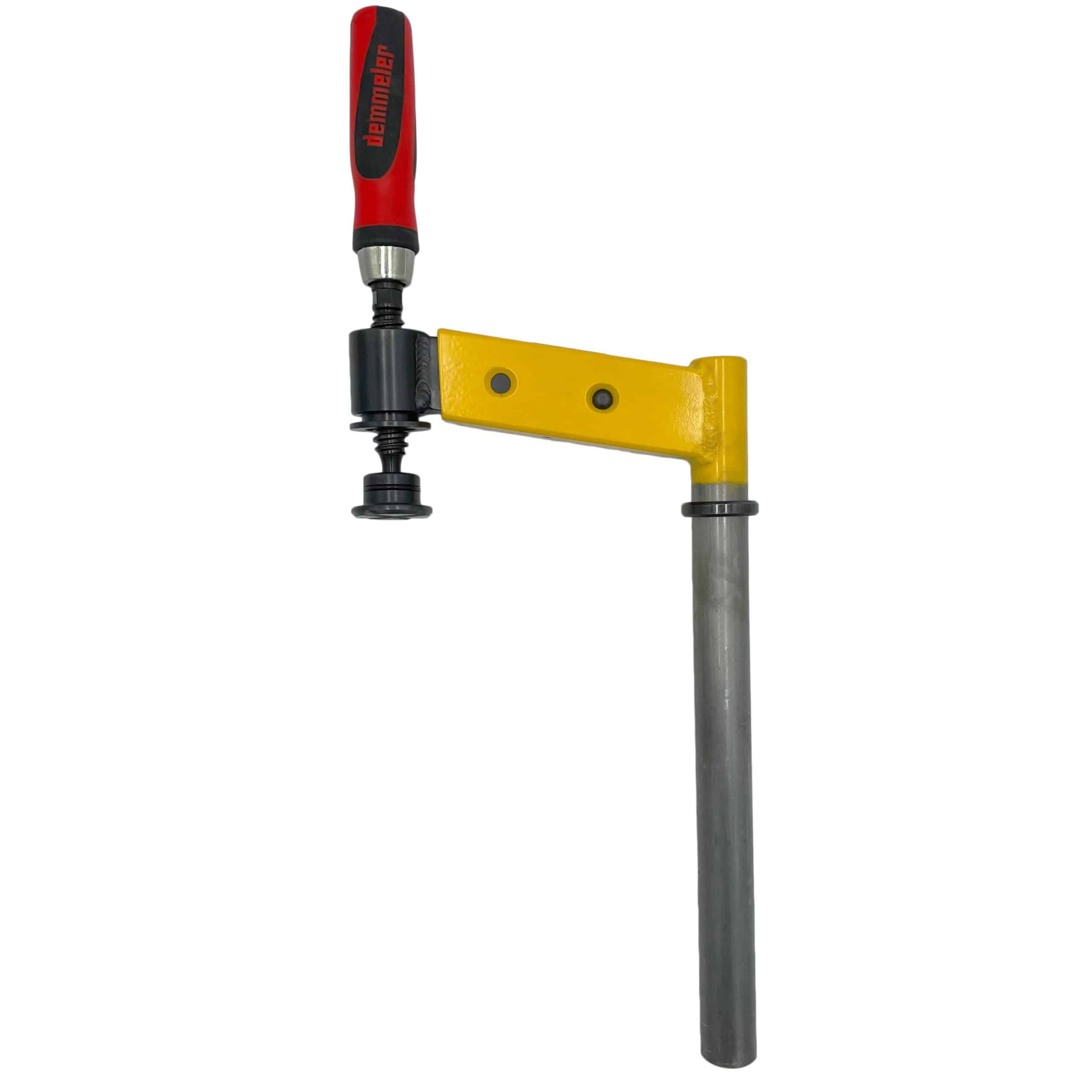

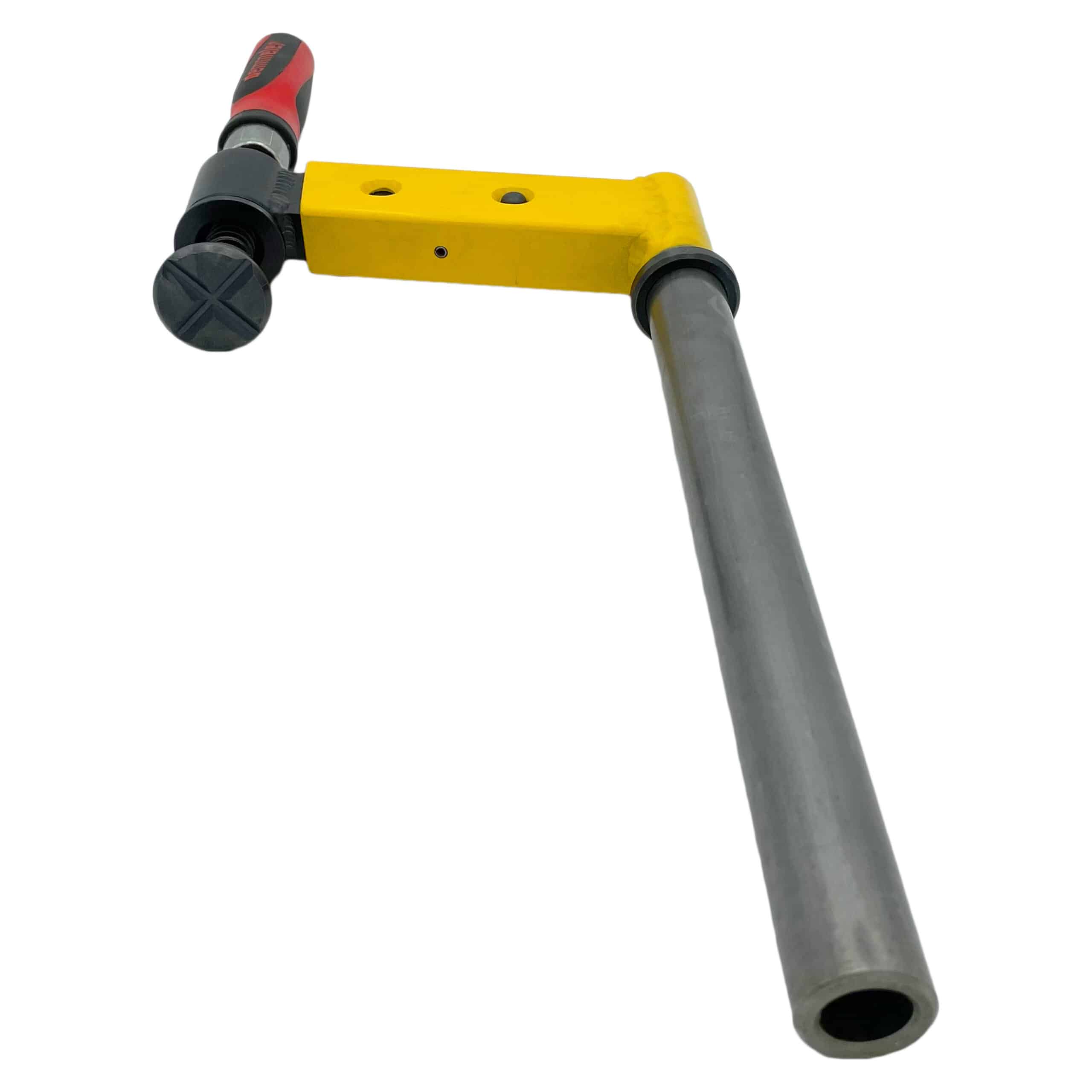

The Compensating Swing Spindle – ExpertLine (Fixed) provides fast, powerful, and precise clamping for a variety of workpieces. Utilizing difference equalisation technology, it ensures accurate orientation and positioning of clamped items. The spring-loaded design offers a reach of 150mm to 200mm, suitable for a broad range of applications.

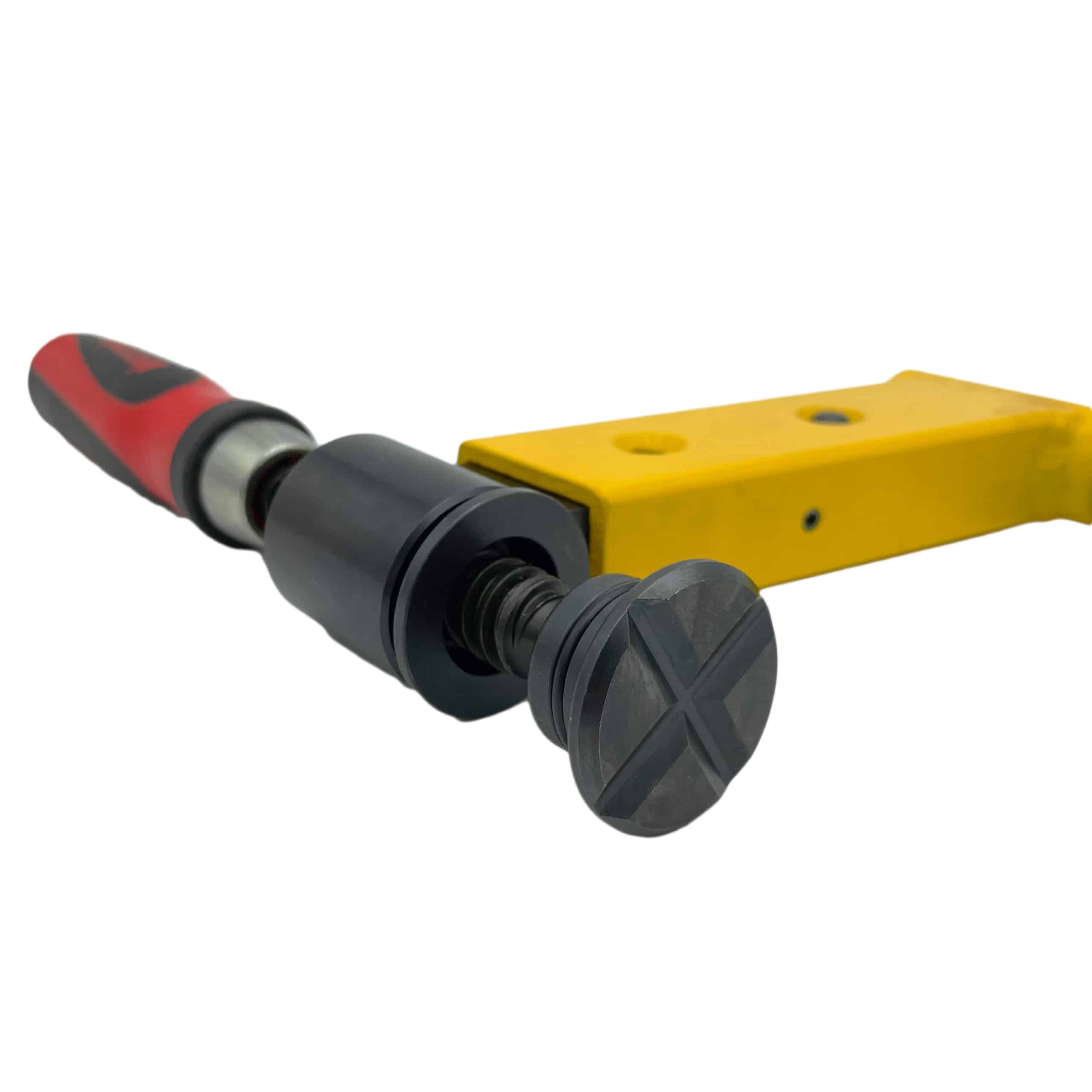

The interchangeable spindle and clamping pad enhance the clamp’s versatility, allowing it to be used as a workpiece support, stop, or small V-block when fitted into any D28 system bore. With a standard clamp height of 300mm and a clamping stroke of 60mm, it includes a stop ring for precise height fixation.

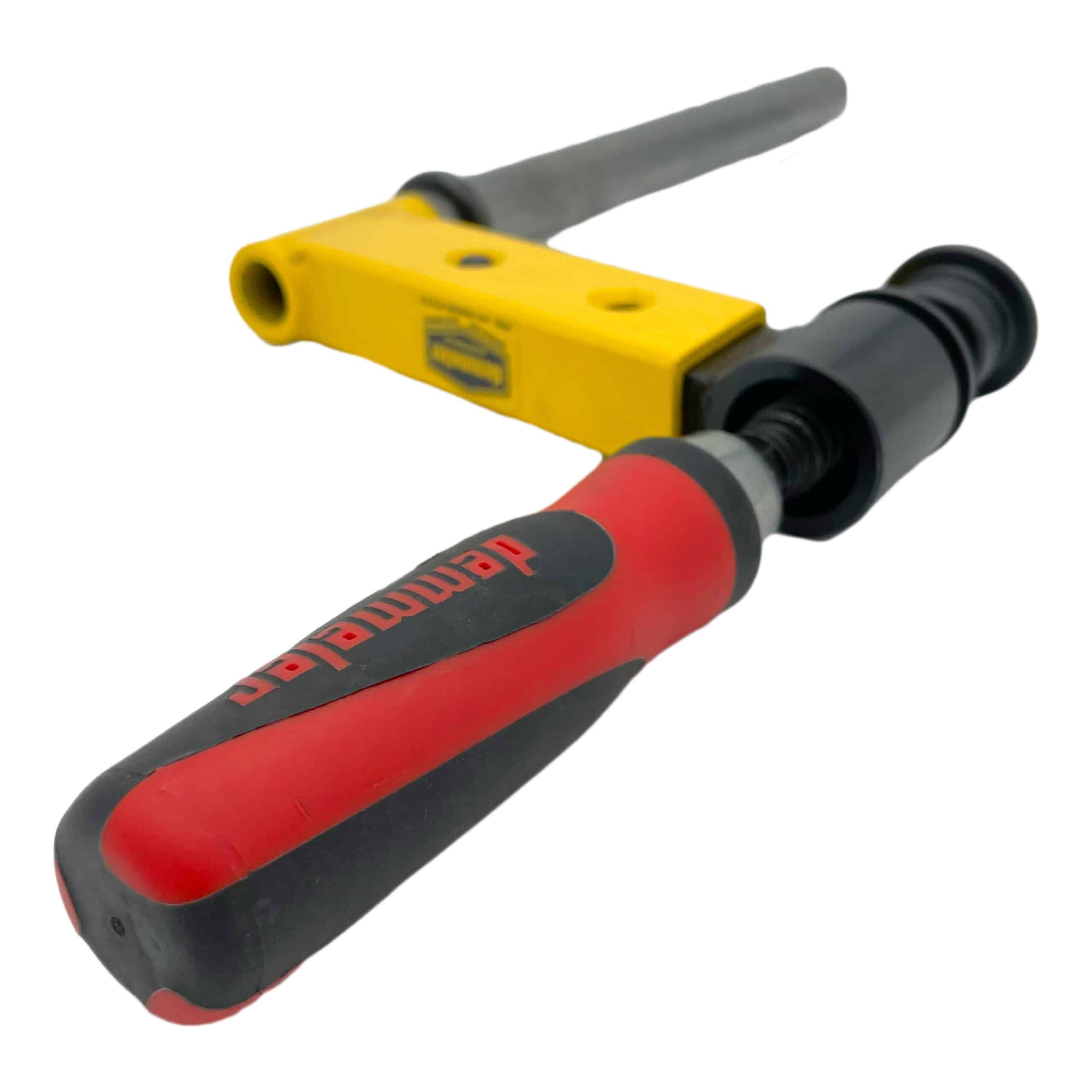

Featuring a slip-resistant rubberised handle, the spindle ensures ease of use, while the graphite-impregnated thread guarantees maintenance-free durability. The thread bushing is compatible with all D28 system bores, making it a versatile choice for various clamping needs.

Reach = 150 – 200mm

$359.00(exc GST)



Clamp – Compensating Swing Spindle – Expertline (Fixed) Tech Specs

Part No.

7002
