Clamp – Horizontal Swing Spindle

7008

SKU: 7008 Category:

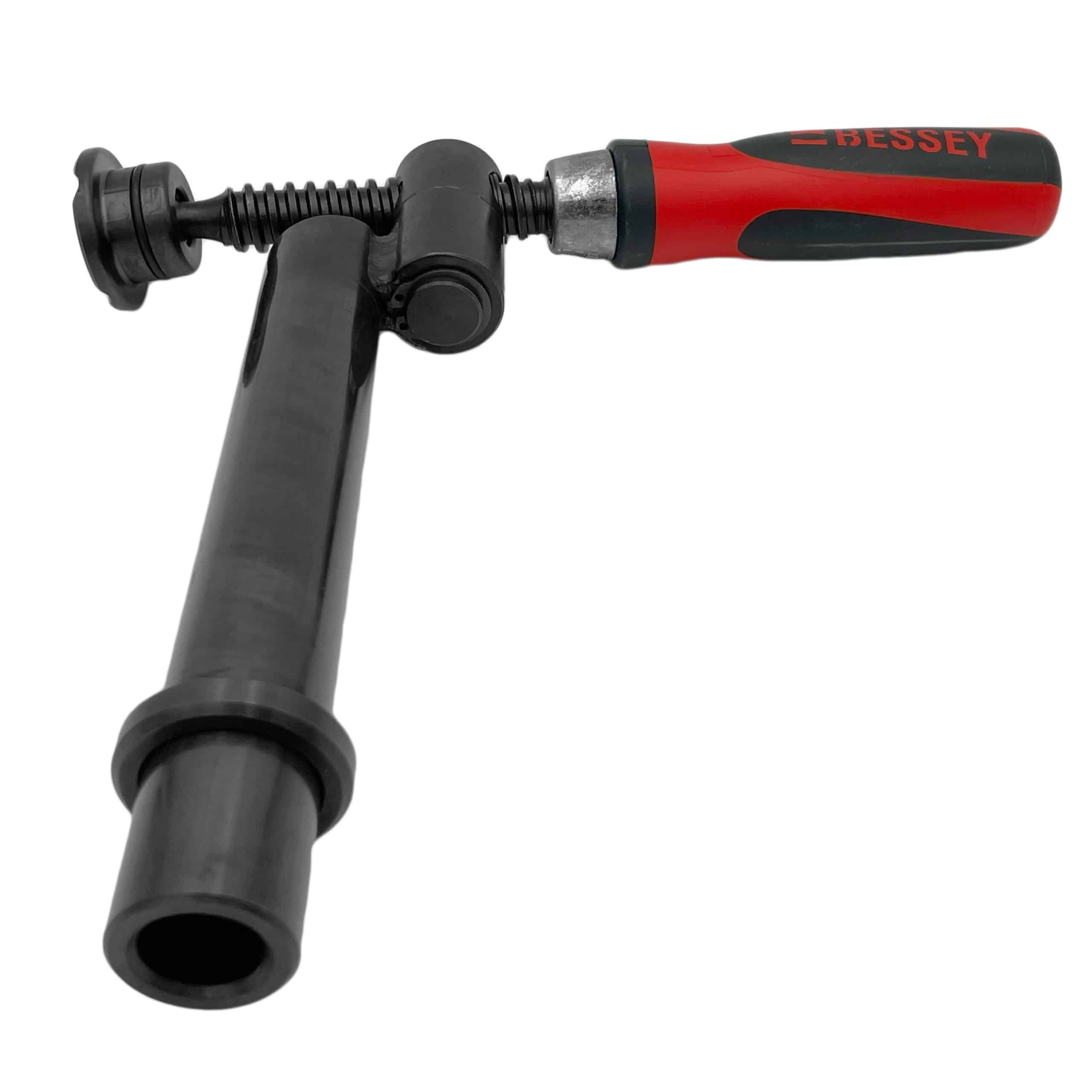

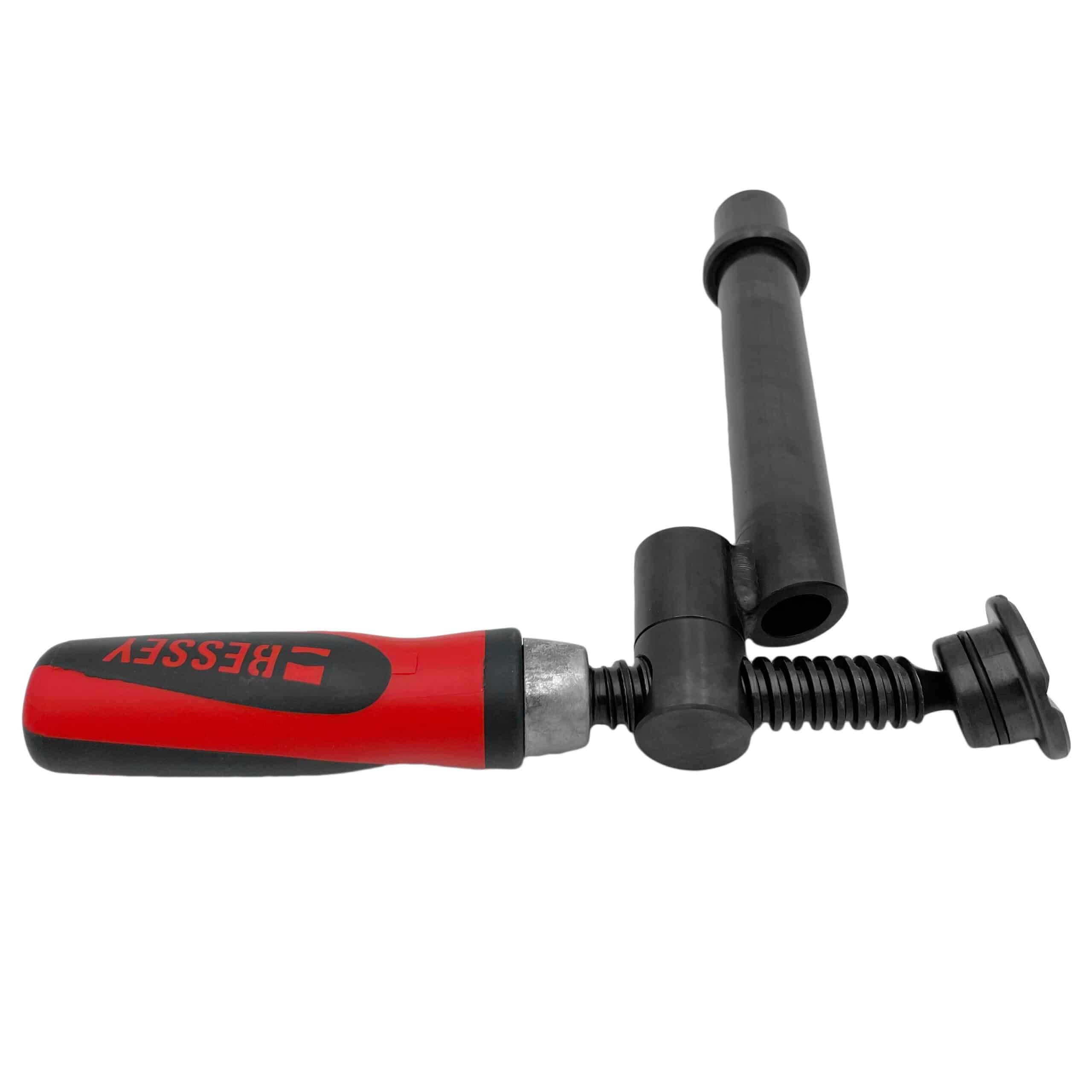

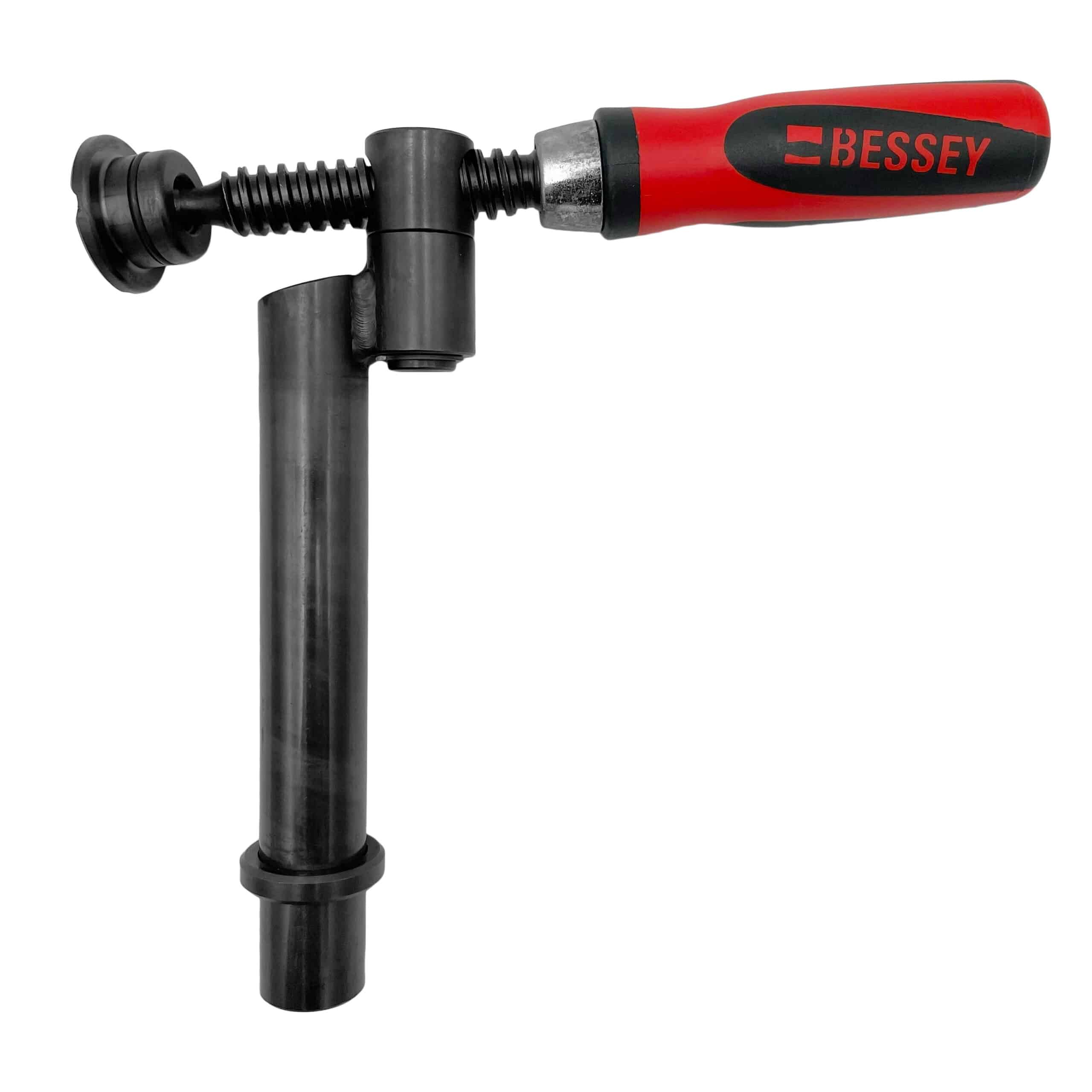

The Horizontal Swing Spindle Clamp combines speed, power, and precision to deliver effective clamping for a variety of workpieces. Designed with a unique 90° orientation to the system bore, it provides a distinctive pressure direction that enhances clamping efficiency.

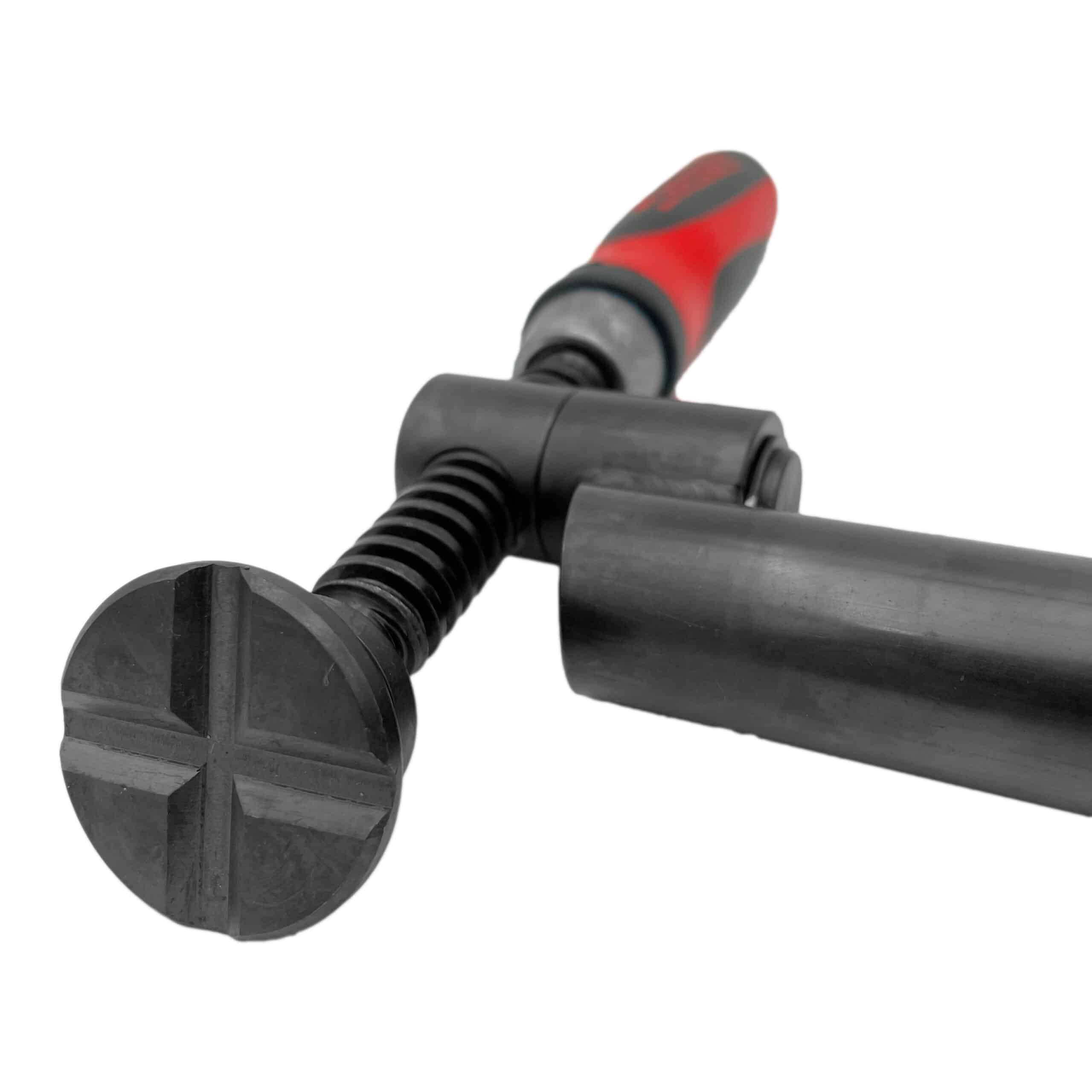

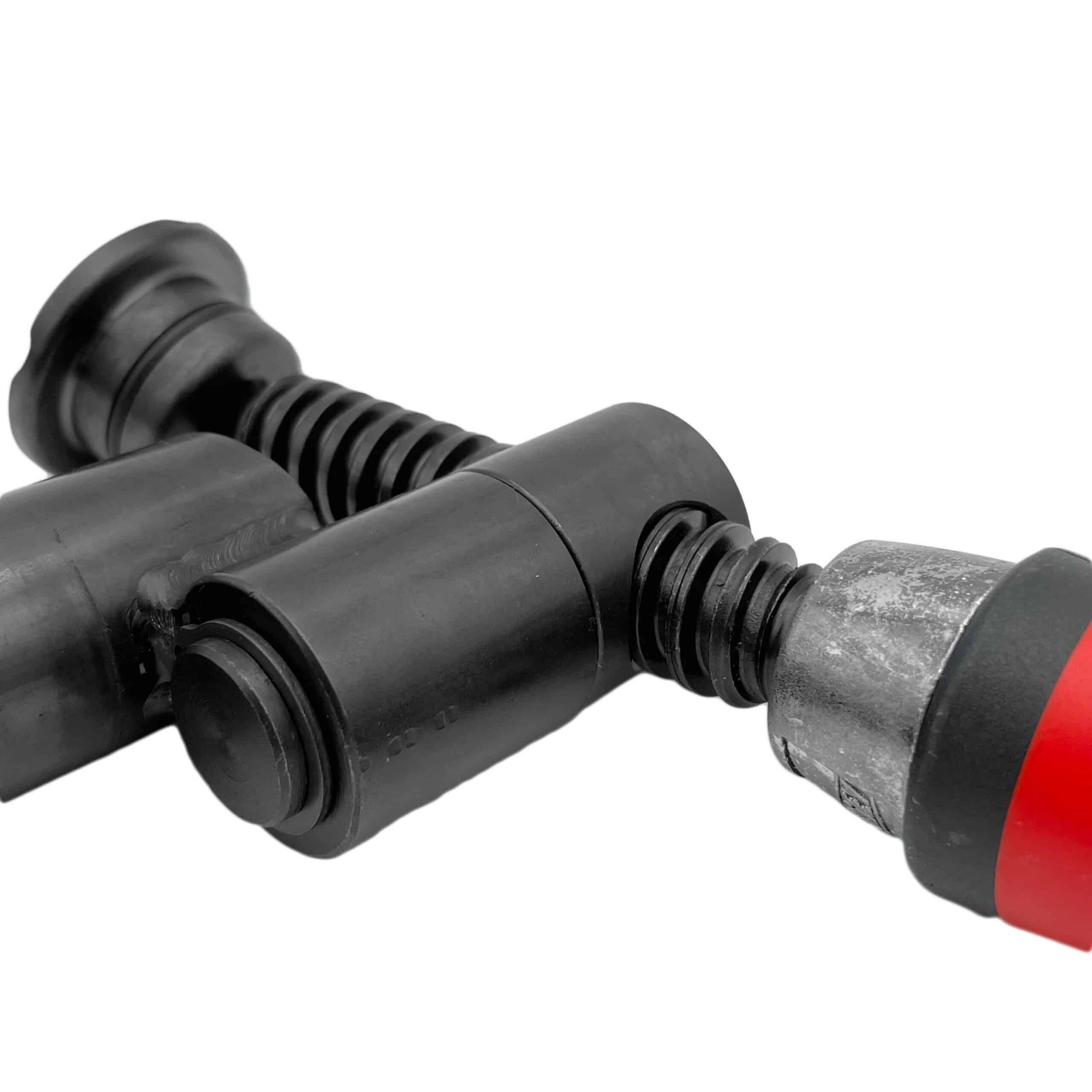

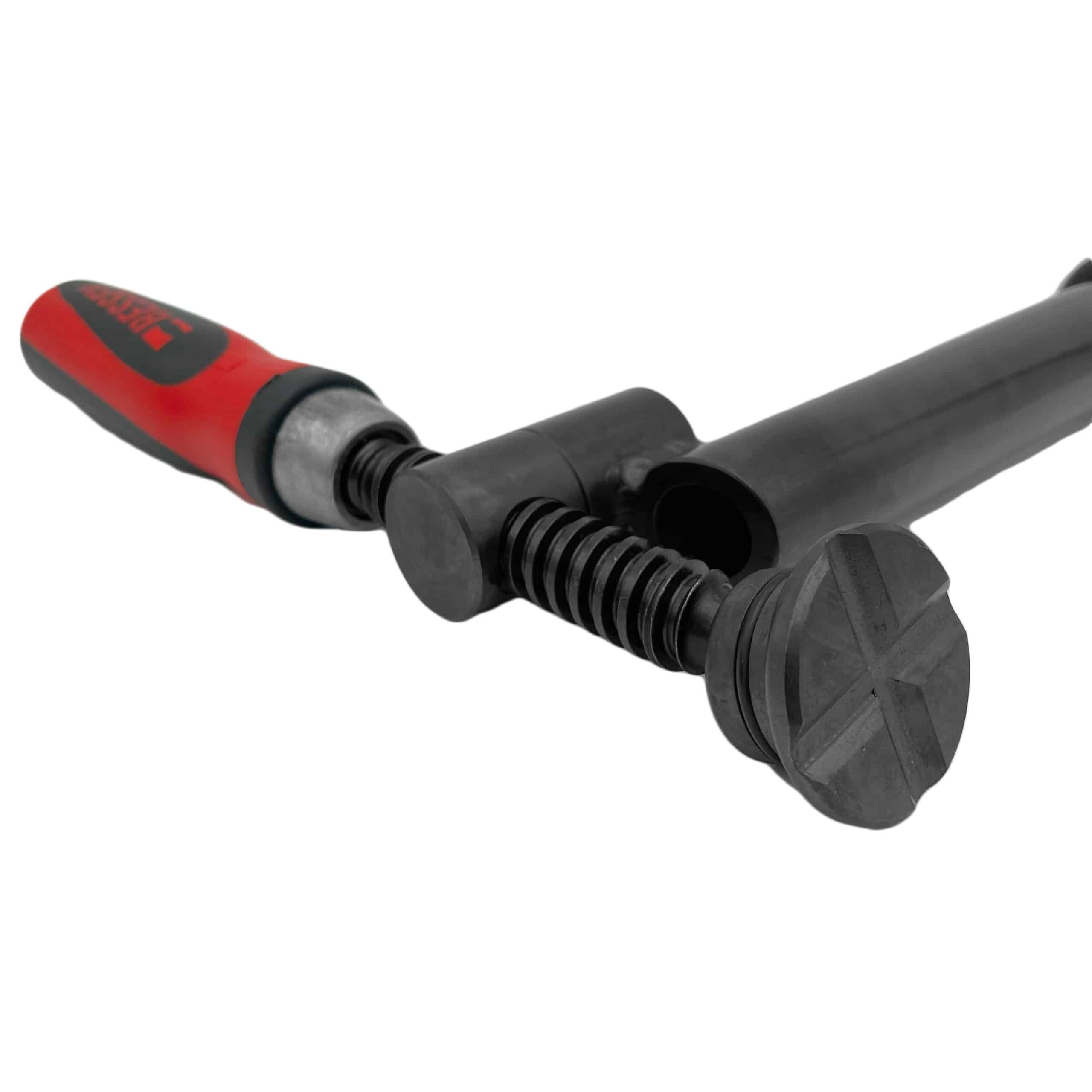

Featuring a 180° quick-action joint with a detent, this clamp offers an extended clamping range up to 120mm. The interchangeable spindle and clamping pad increase its versatility, allowing it to serve as a workpiece support, stop, or small V-block when used with any D28 system bore.

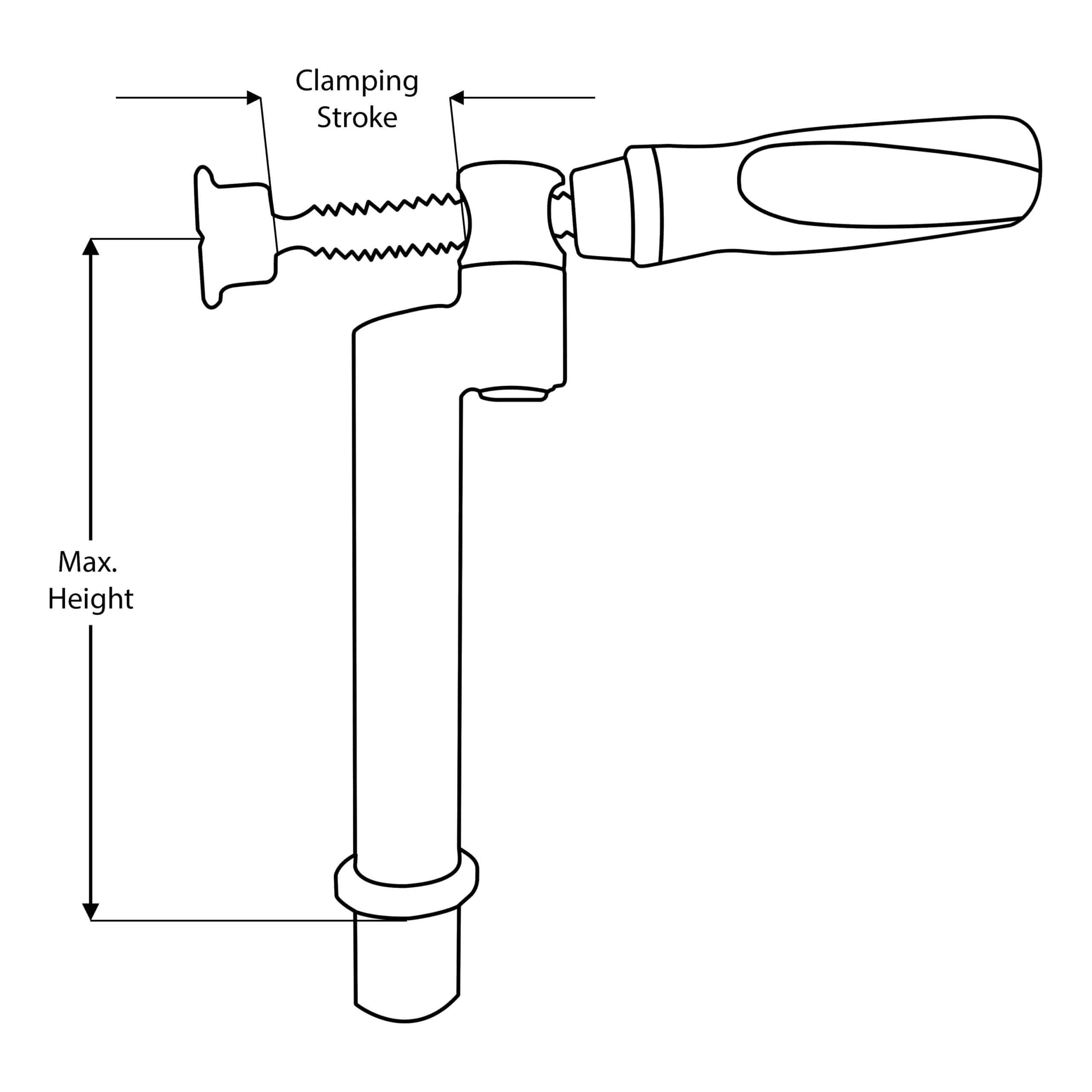

With a maximum height of 170mm and a clamping stroke of 60mm, the clamp is equipped for robust performance. The stop ring ensures precise height fixation, while the slip-resistant rubberized handle on the spindle enhances ease of use.

Additional features include the possibility for clamping bridge insertion, a graphite-impregnated thread for maintenance-free durability, and a blackened clamping tube for added strength. This clamp is ideal for applications requiring adaptable pressure direction and reliable clamping performance.

Weight = 1.22kg

$259.00(exc GST)



Clamp – Horizontal Swing Spindle Tech Specs

Weight 1.22 kg
Part No.

7008
