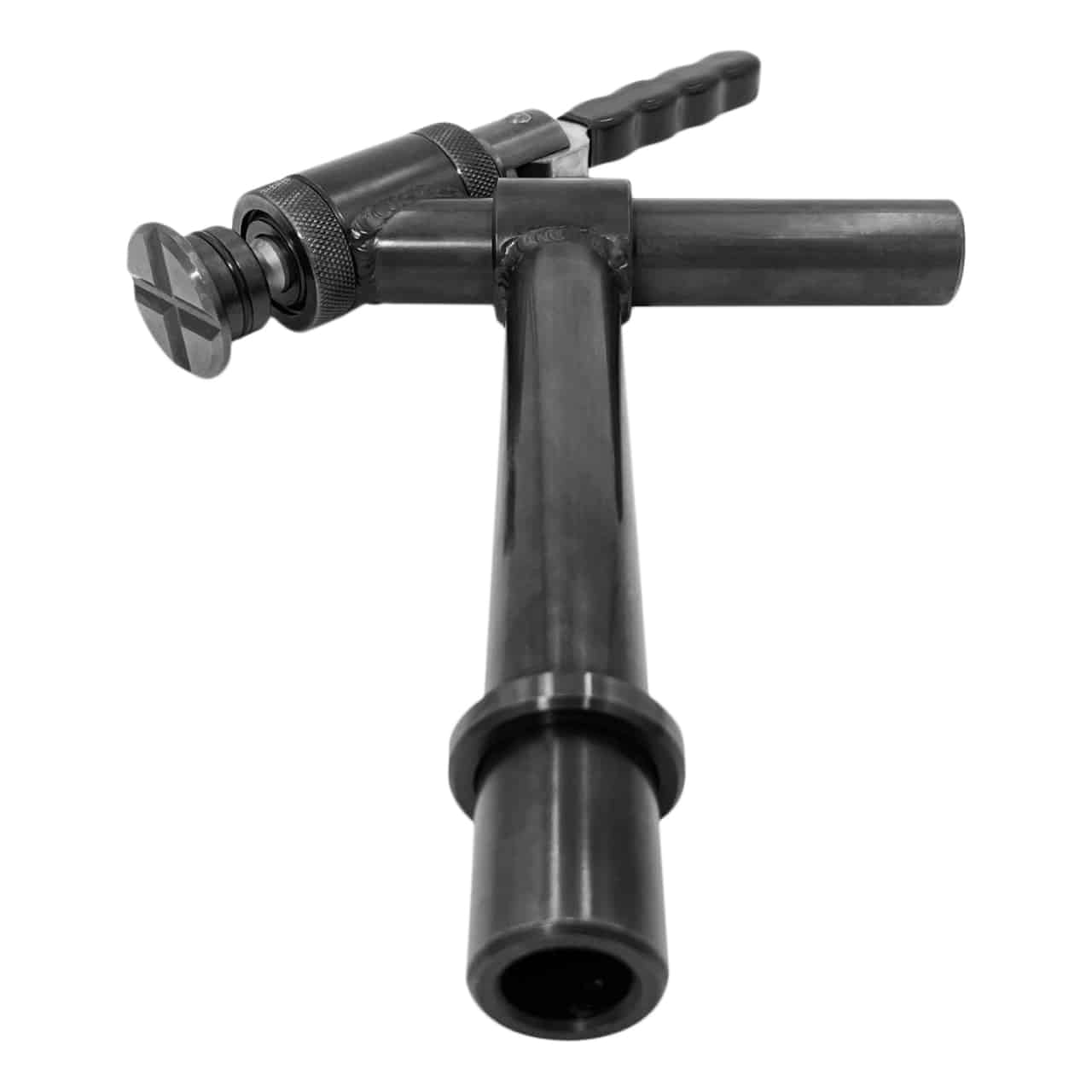

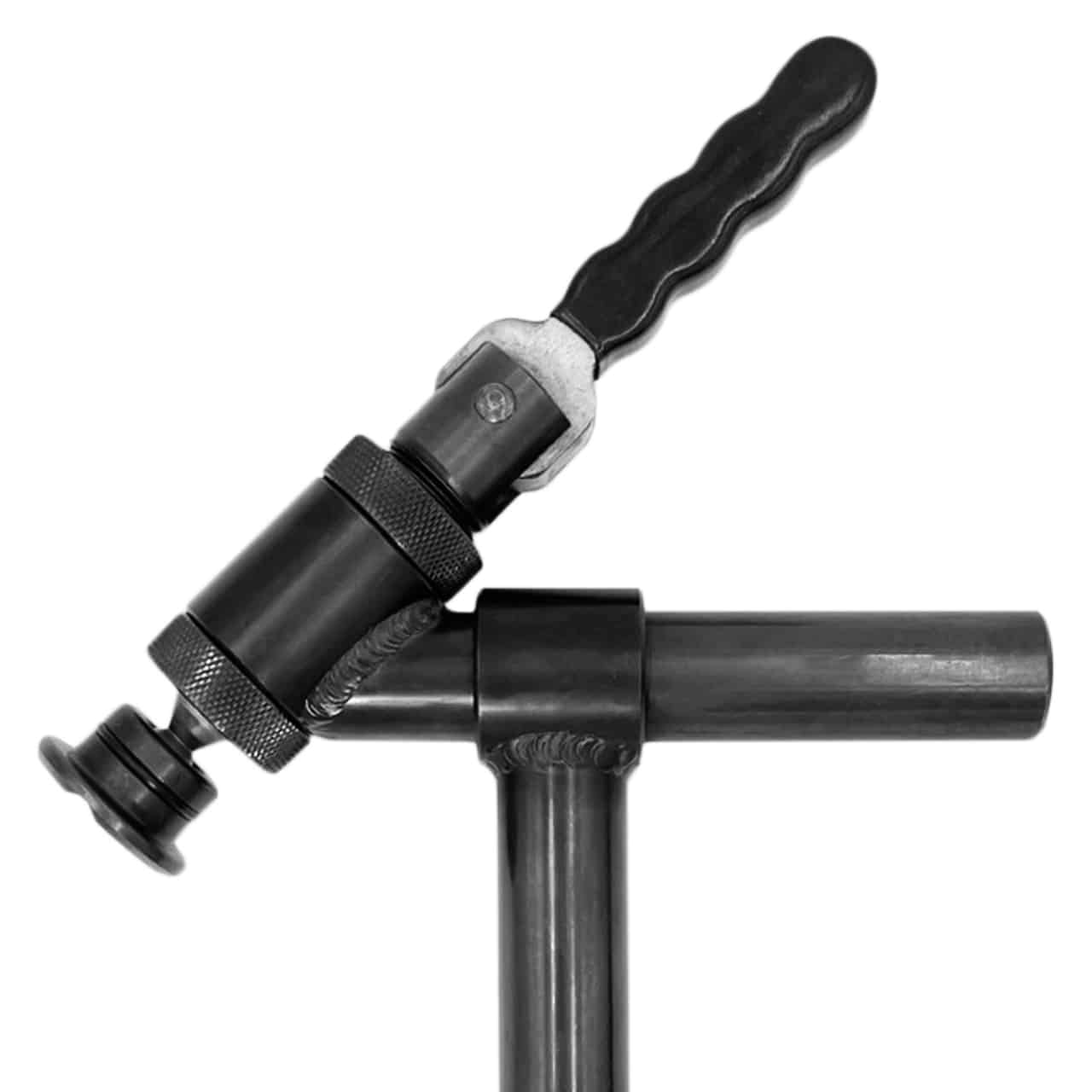

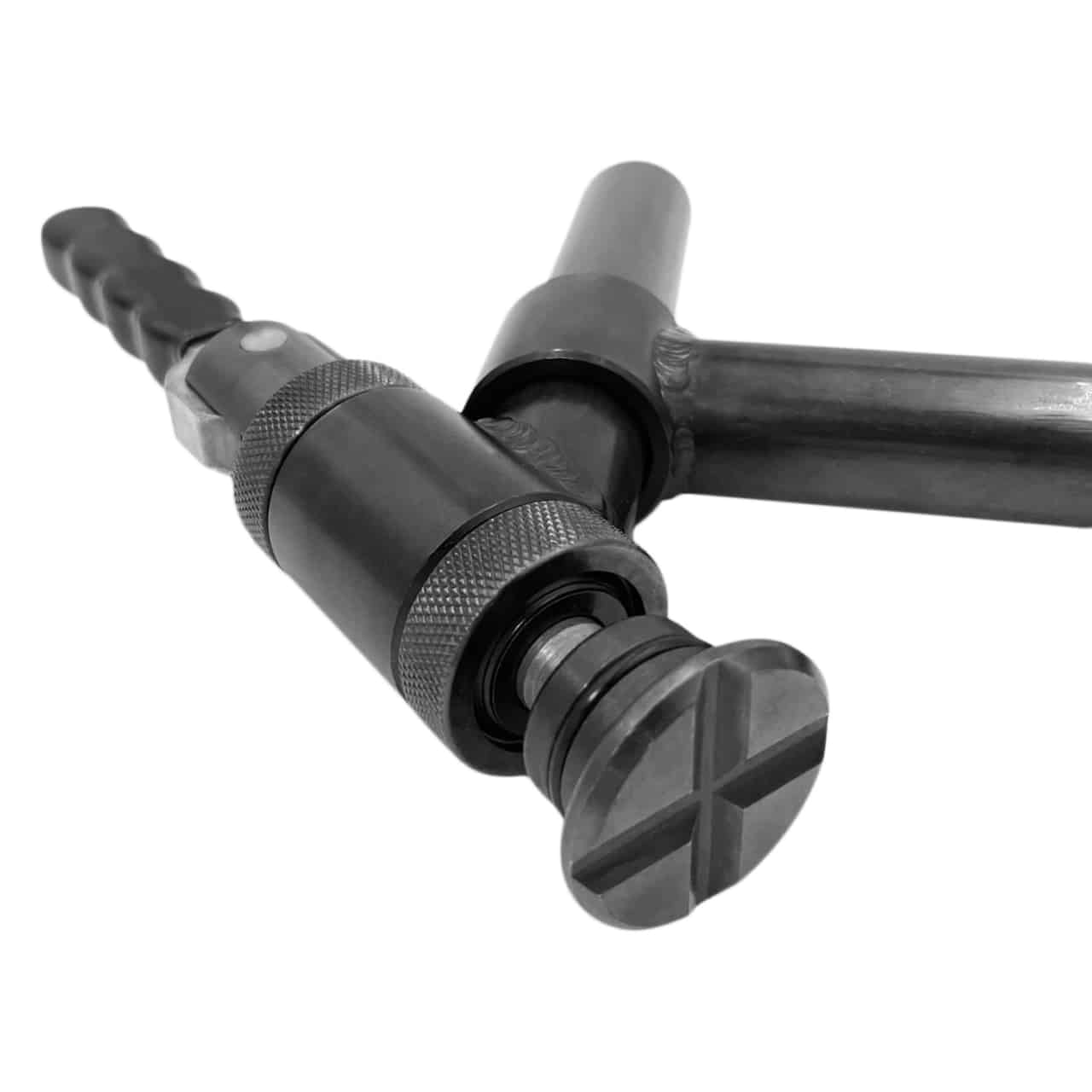

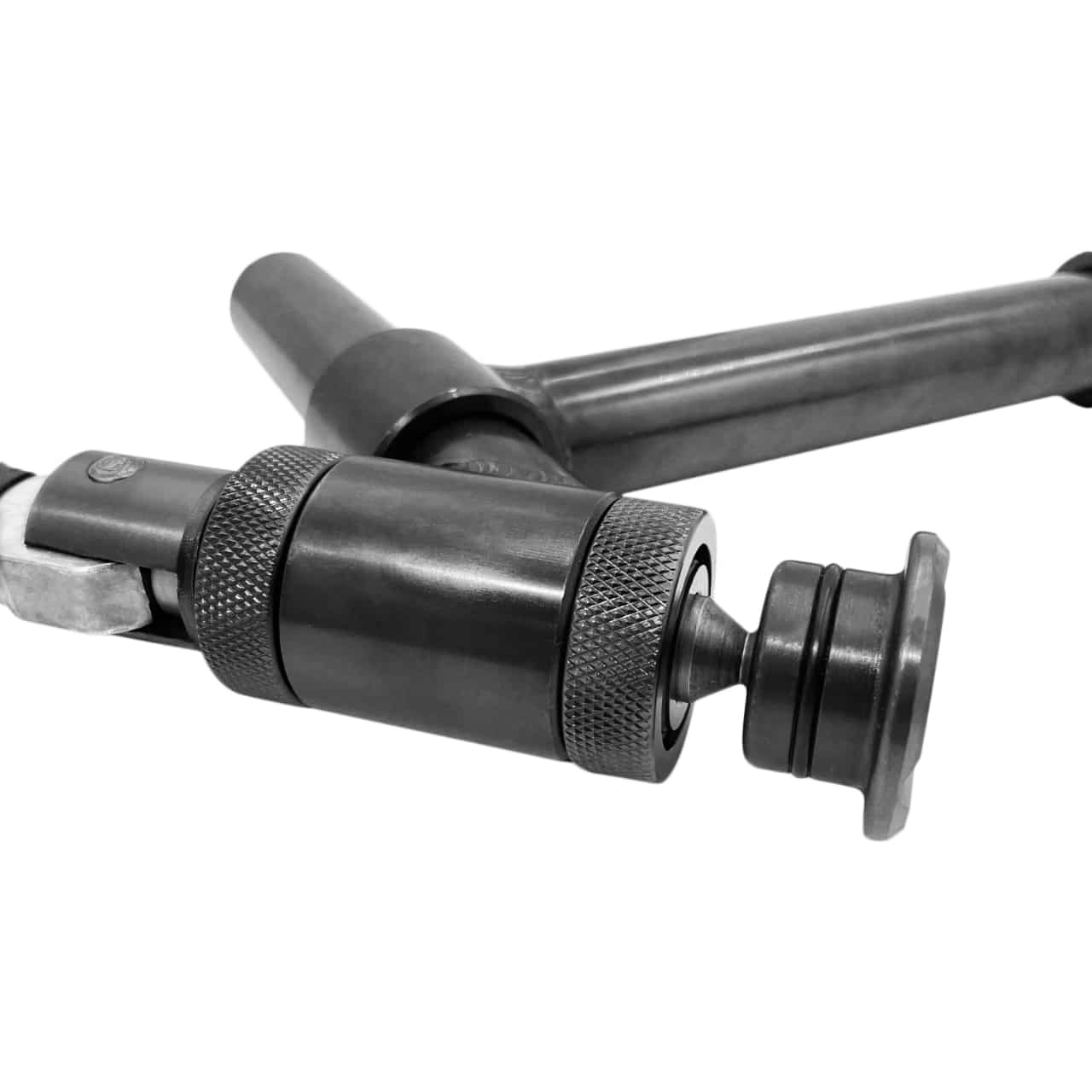

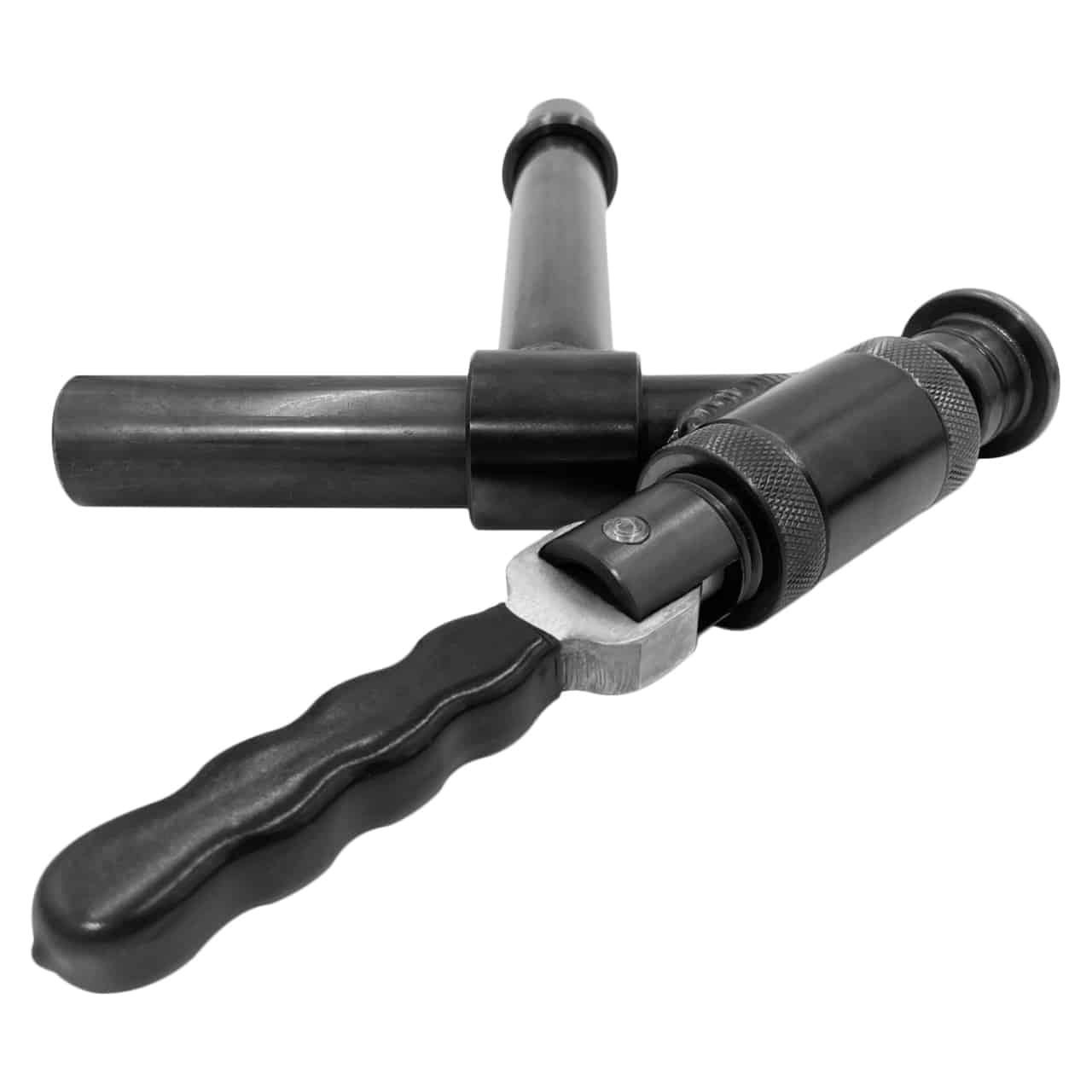

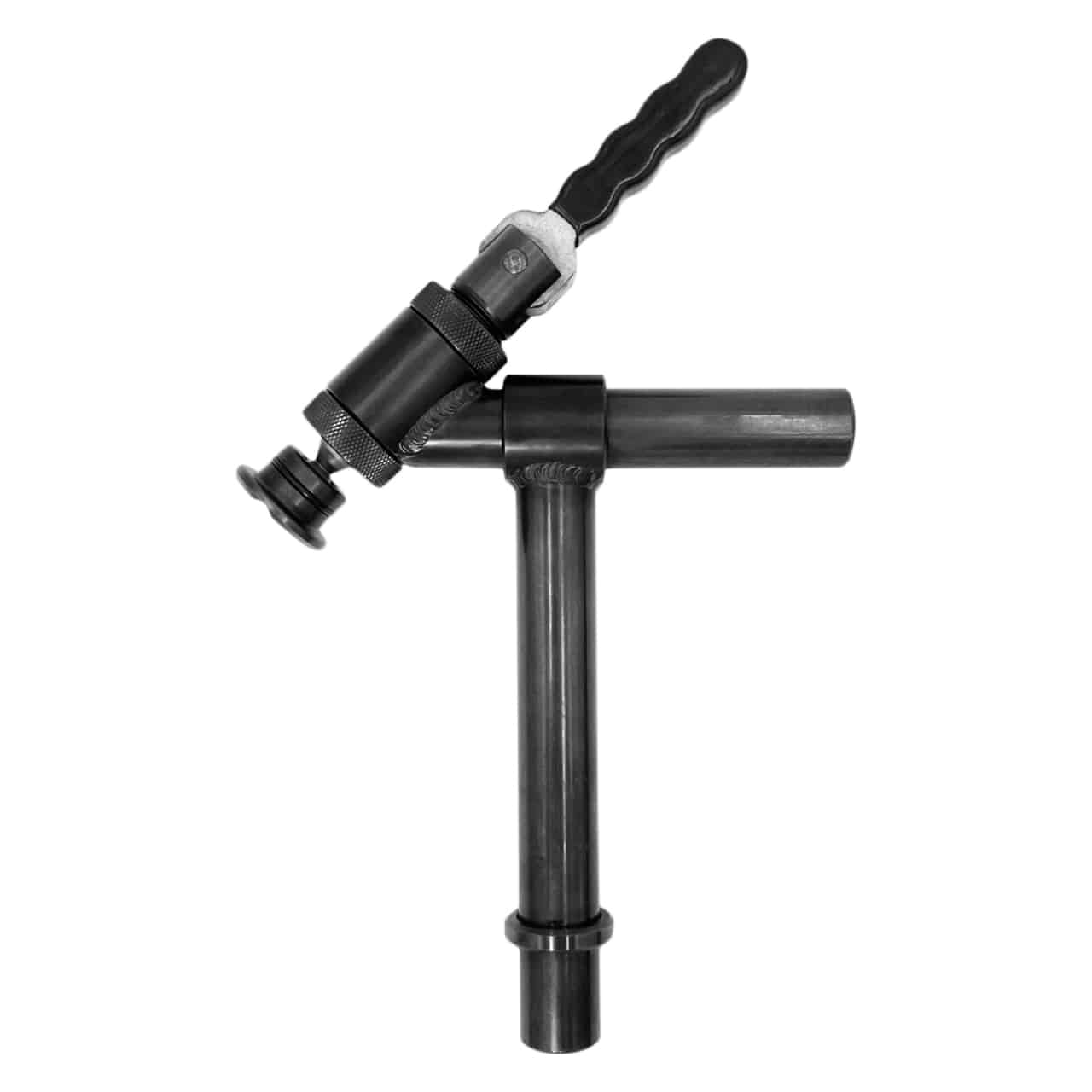

Clamp – Angled 45° Toggle Handle

7009_350_TOG

SKU: 7009_350_TOG Category:

“The Clamp Angled 45° Toggle Handle offers fast, powerful, and precise clamping for a wide range of workpieces, especially prismatic ones. Its 45° orientation to the system bore and fast toggle lever mechanism make clamping up to five times faster than conventional screw clamps. The tool features interchangeable components, including the toggle, clamping pad, and clamping tubes, allowing for versatile applications.

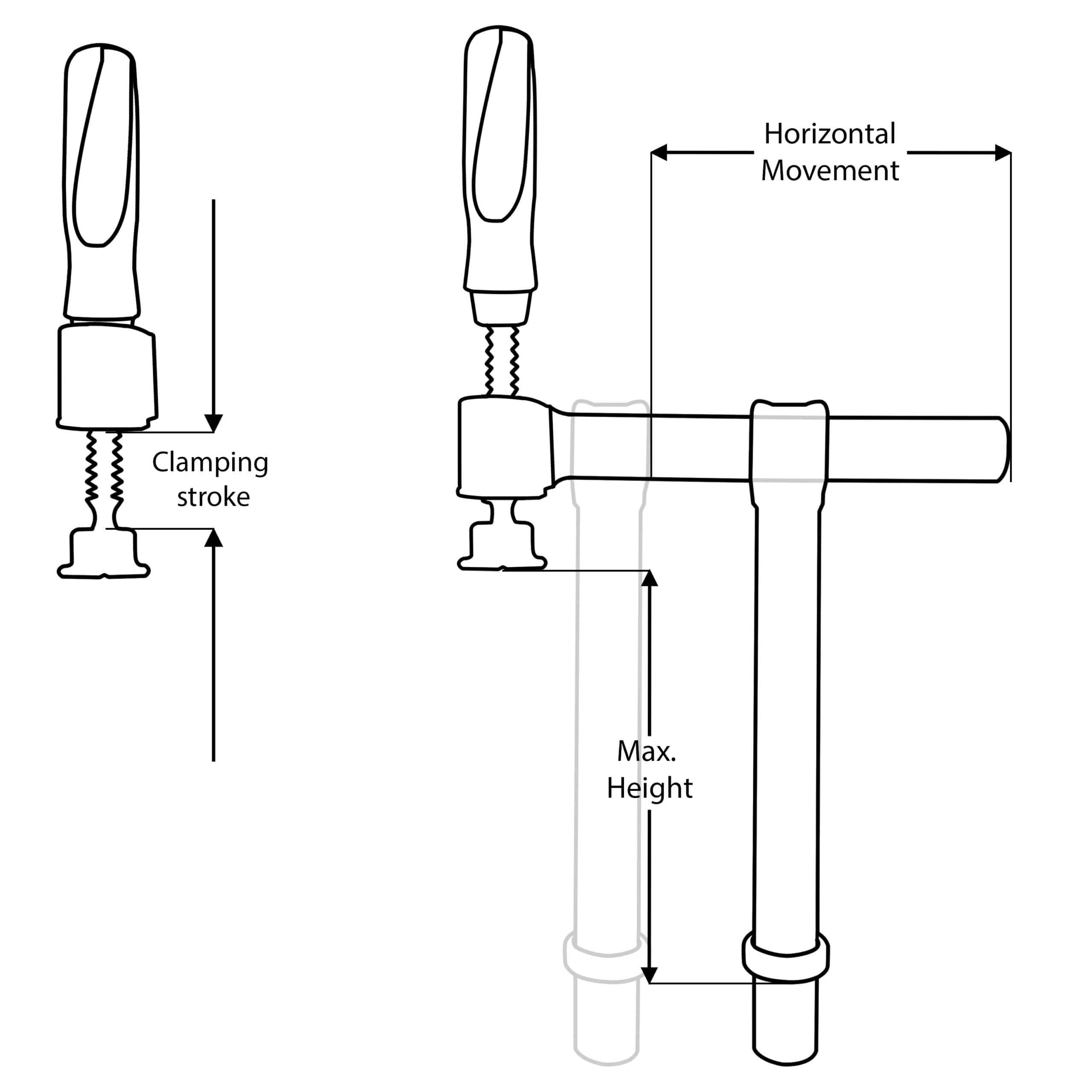

The clamping pad can also function as a workpiece support, stop, or small V-block when inserted into any D28 system bore. With 80mm of horizontal movement, a maximum height of 160mm, and a clamping stroke of 5mm, it provides secure and flexible clamping. The stop ring ensures accurate height fixation, and the slip-resistant rubberised handle offers comfort and ease of use.

Additional features include the option to insert a clamping bridge and the compatibility of its thread bushing with all D28 system bores. The blackened clamping tubes enhance durability, making this clamp ideal for quick and precise work in demanding applications.”

$379.00(exc GST)

Clamp – Angled 45° Toggle Handle Tech Specs

Part No.

7009-TOG
