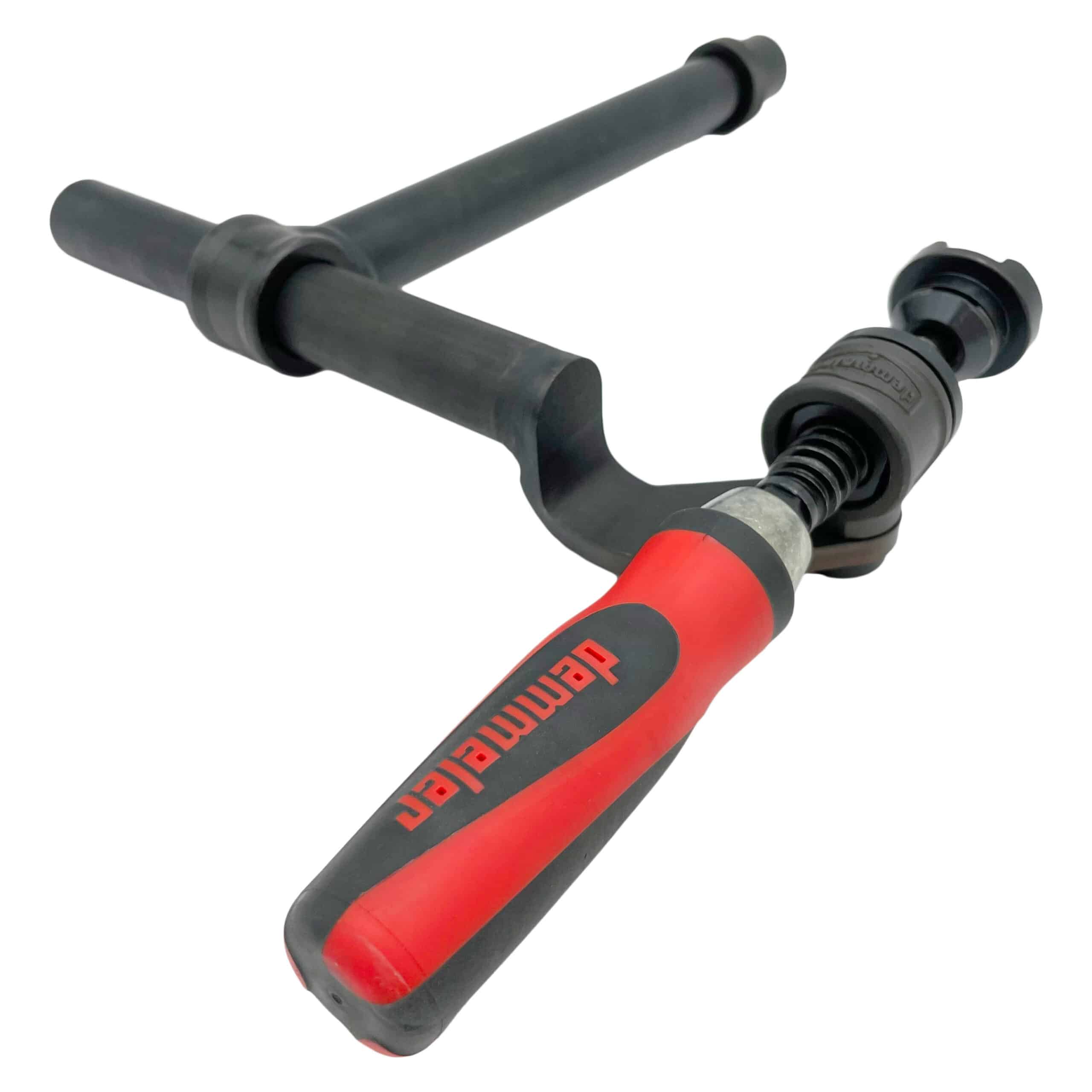

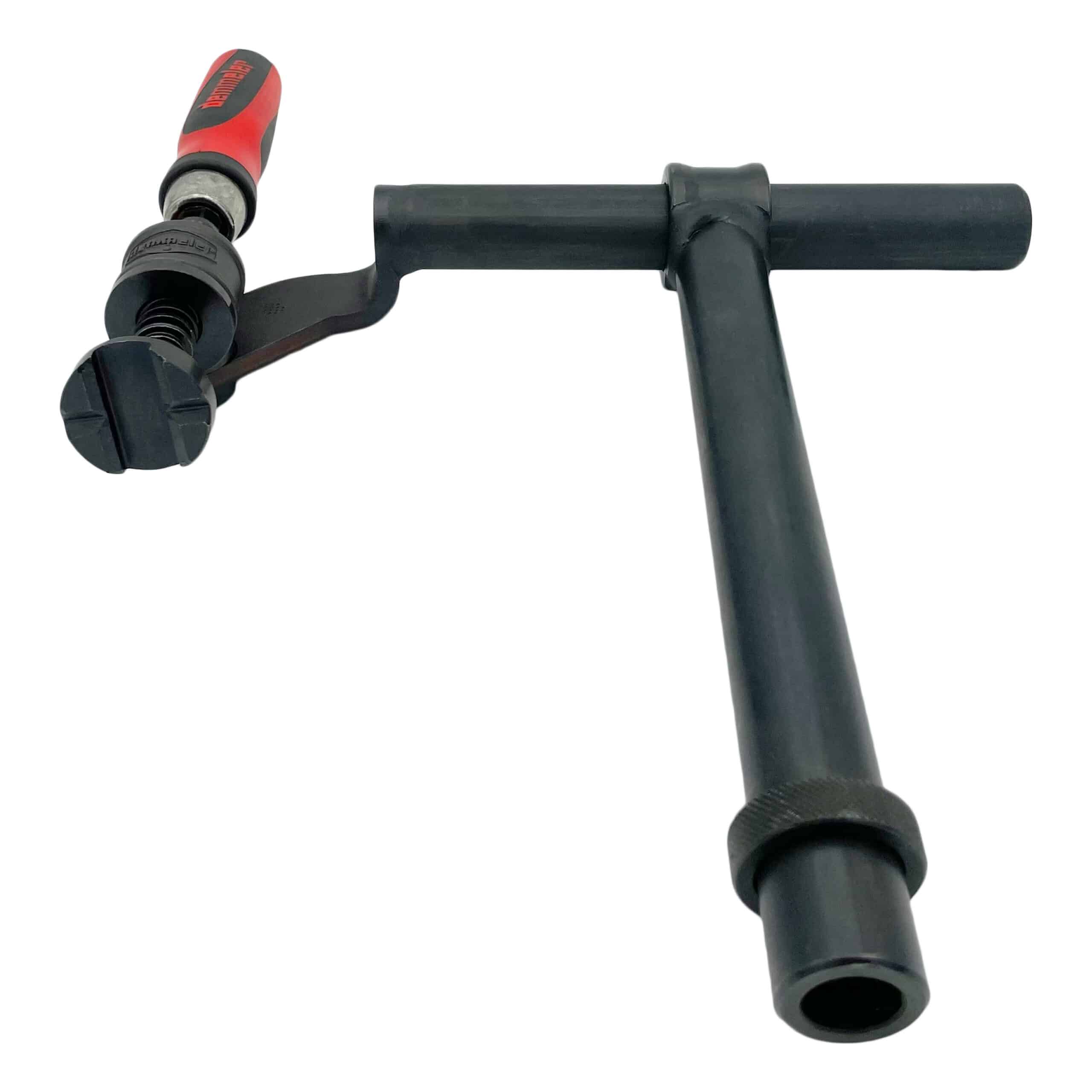

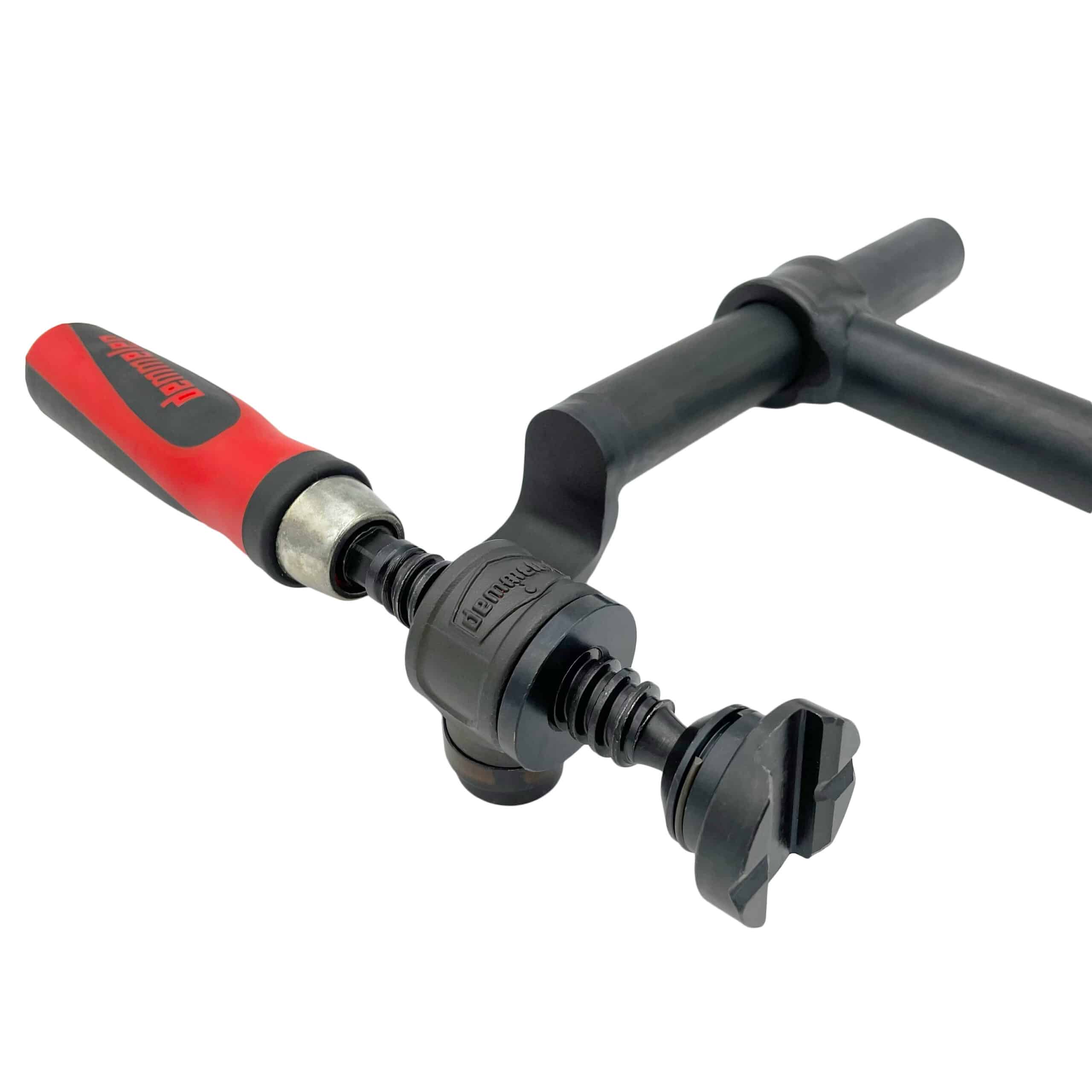

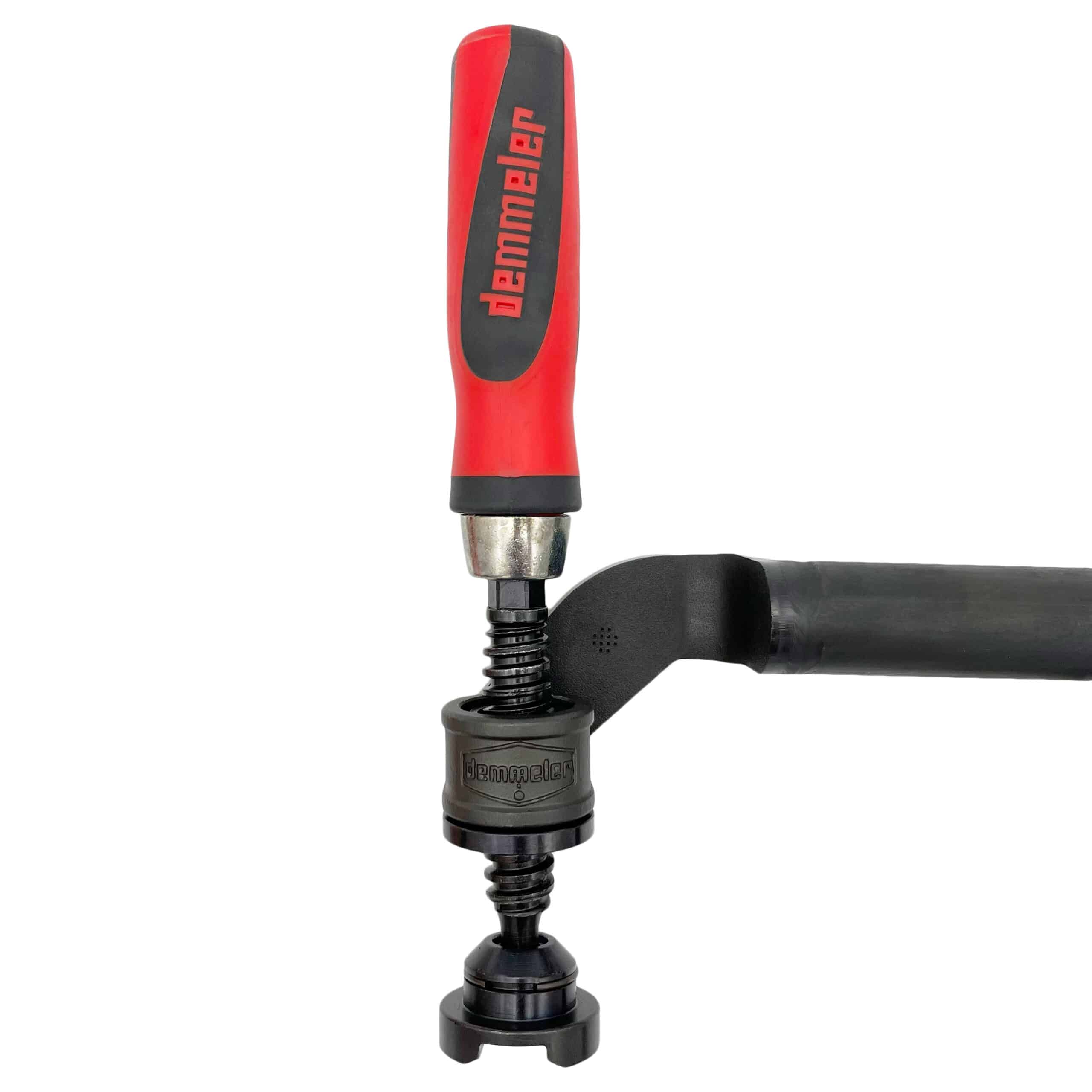

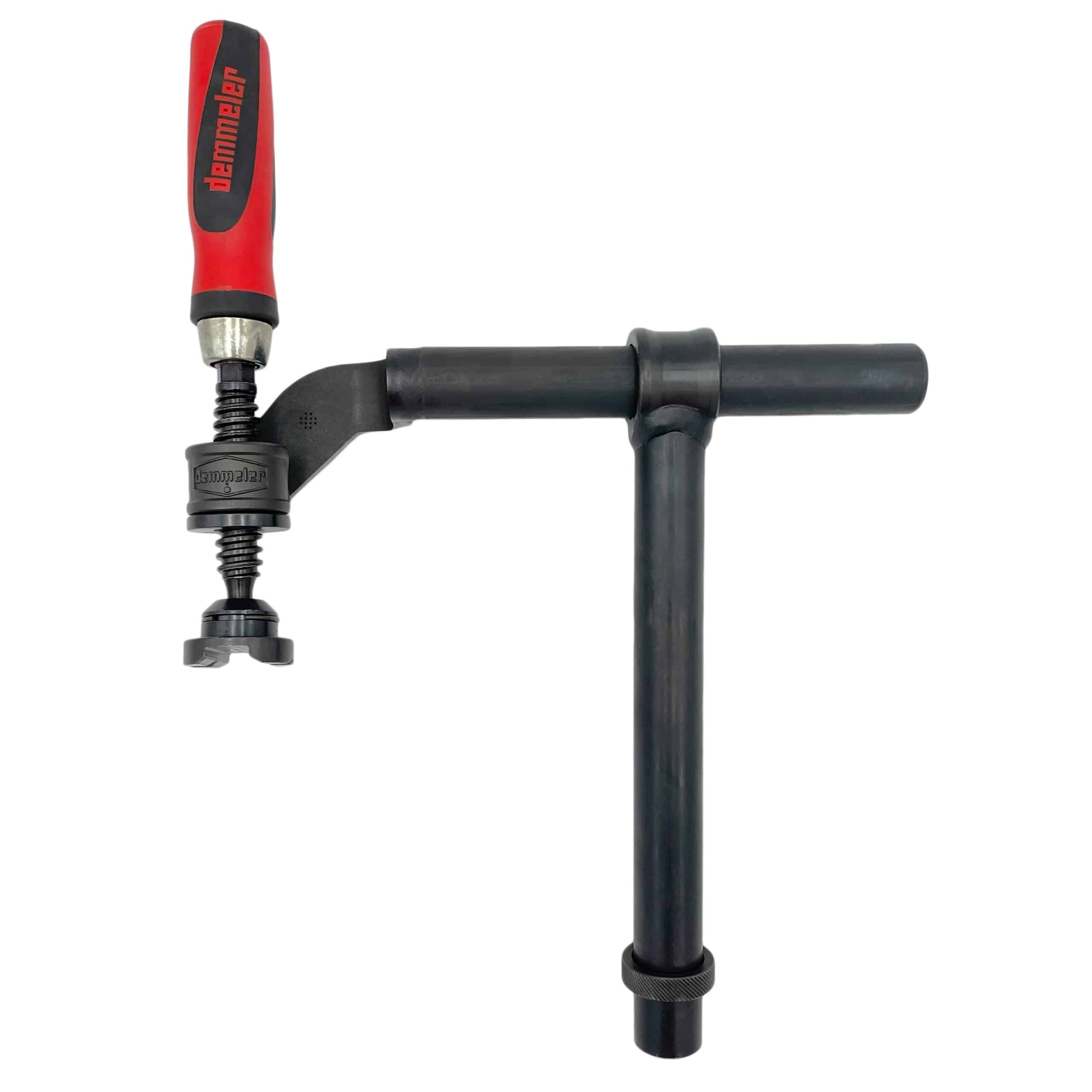

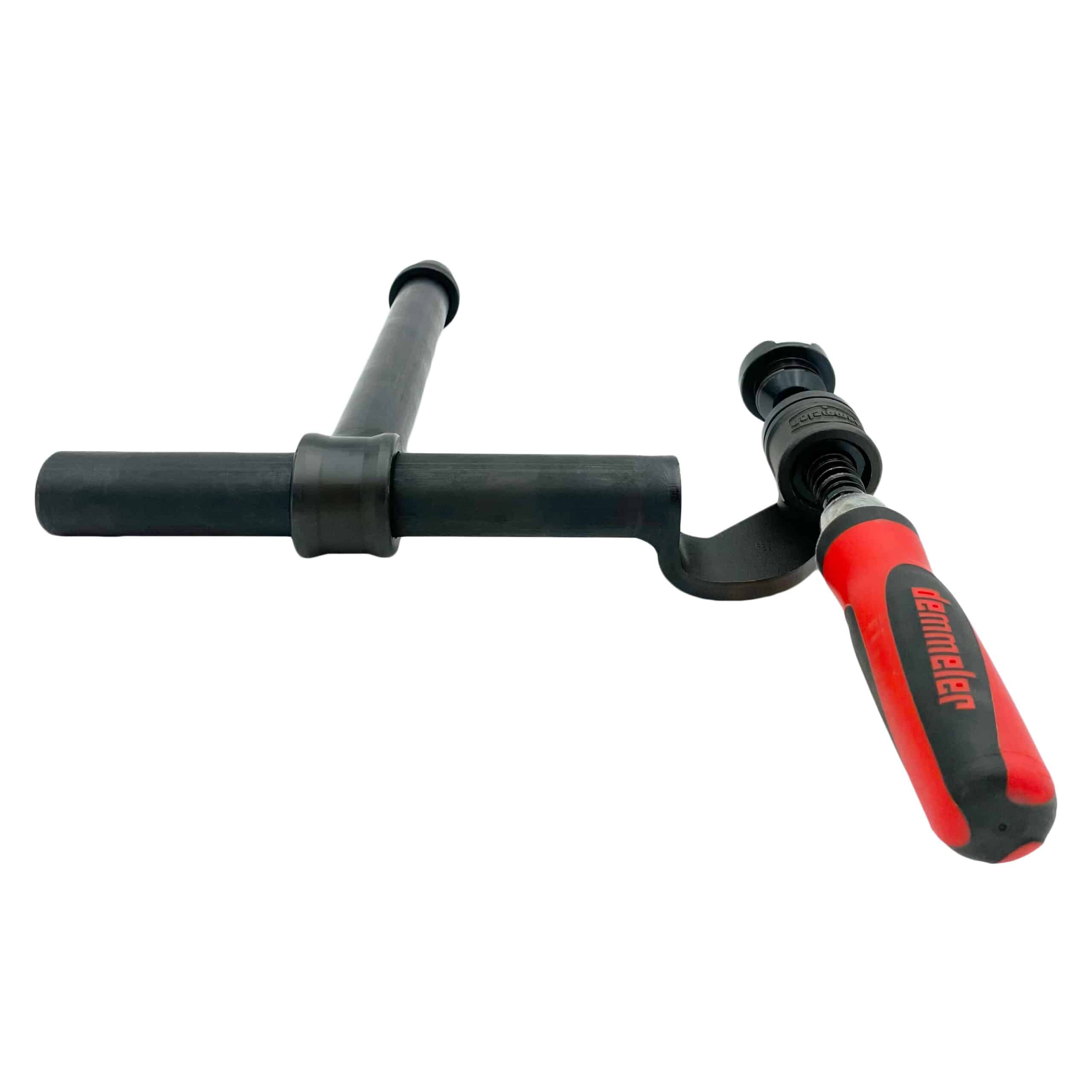

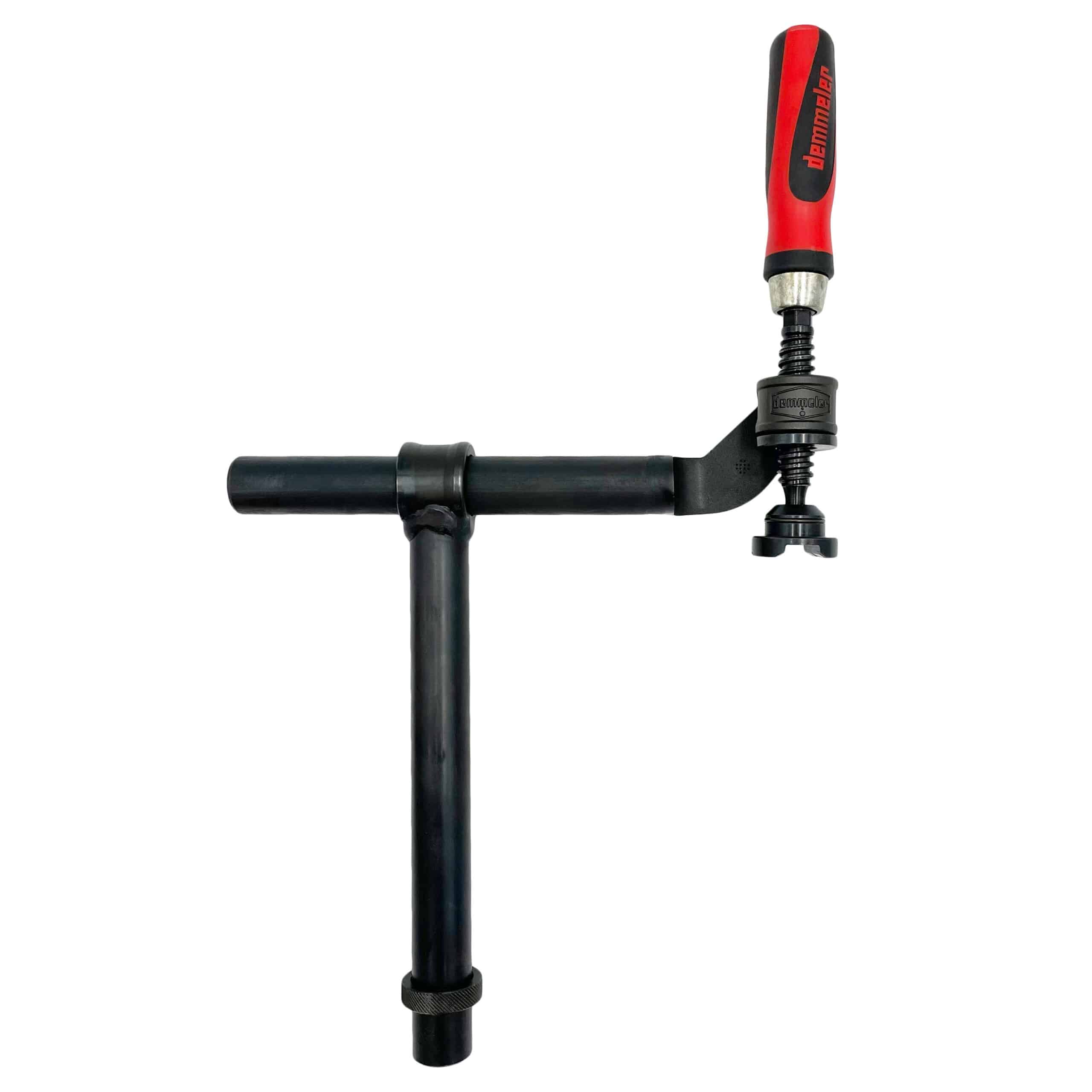

Clamp – Performance Screw Spindle

D28-07009-033

SKU: D28-07009-033 Category:

The Performance Screw Spindle is designed for fast, powerful, and precise clamping of various workpieces, offering versatility and efficiency in your clamping tasks. This clamp integrates the functions of 45°, 90°, and 180° swing clamps, providing exceptional adaptability for a wide range of applications.

Featuring continuously swivelling capabilities of ±50° and 360° rotation, the clamp allows for flexible positioning and clamping of workpieces at multiple angles. Its interchangeable spindle, clamping pad, and clamping tubes extend its application possibilities, making it a highly versatile tool for different clamping needs.

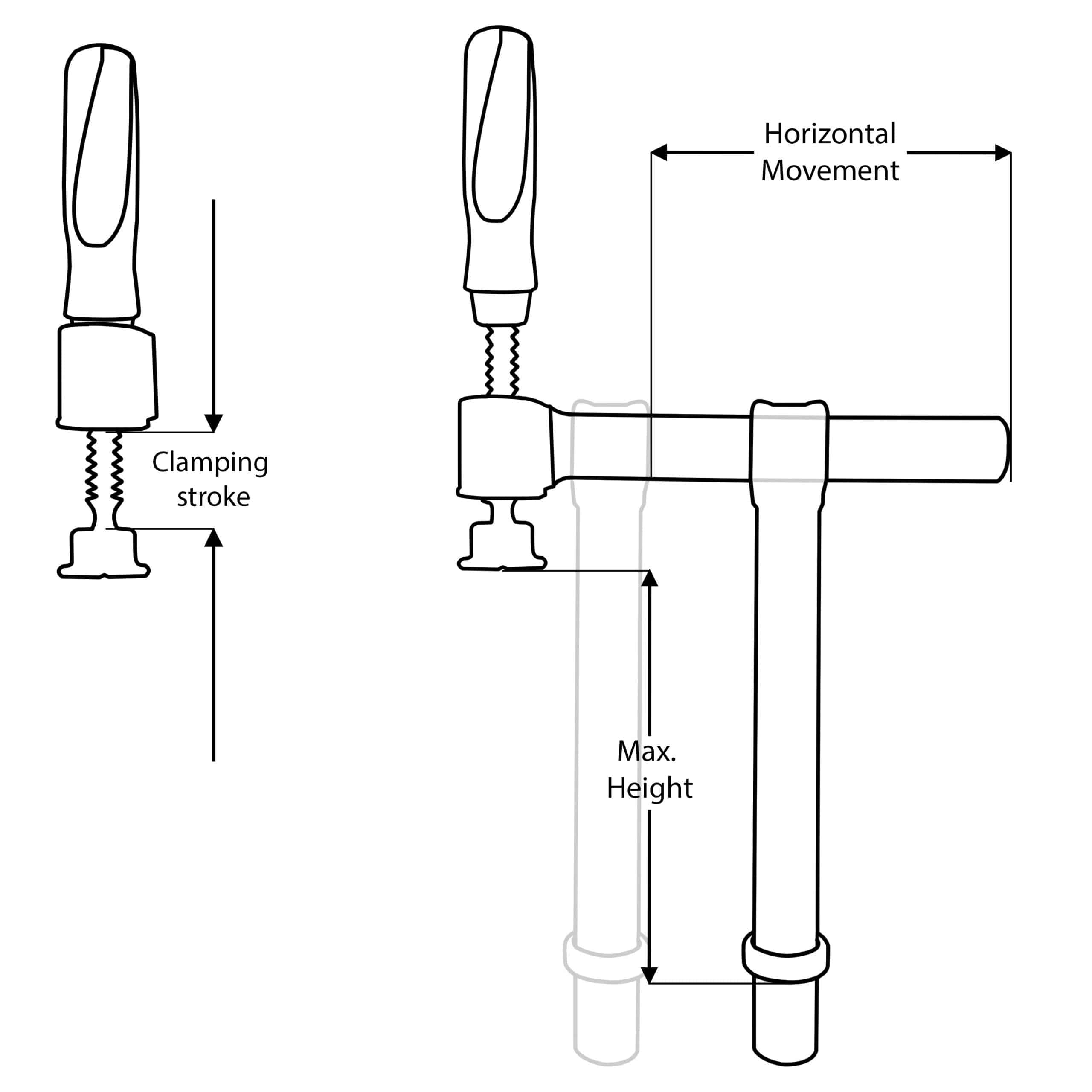

The clamping pad functions as a workpiece support, stop, or small V-block when fitted into any D28 system bore. With a horizontal movement range of 160mm and a maximum height of 180mm, the clamp accommodates various workpieces effectively. The clamping stroke of 60mm, combined with a stop ring for accurate height fixation, ensures precise and secure clamping.

The clamp is equipped with a slip-resistant, rubberised handle on the spindle for ease of use and comfort during operation. Its graphite-impregnated thread guarantees maintenance-free durability, while the thread bushing is compatible with all D28 system bores. Additionally, the blackened clamping tubes enhance the clamp’s durability, ensuring long-lasting performance.

Weight = 2.9kg

$258.75(exc GST)

Clamp – Performance Screw Spindle Tech Specs

Weight 2.9 kg
Part No.

D28-07009-033
