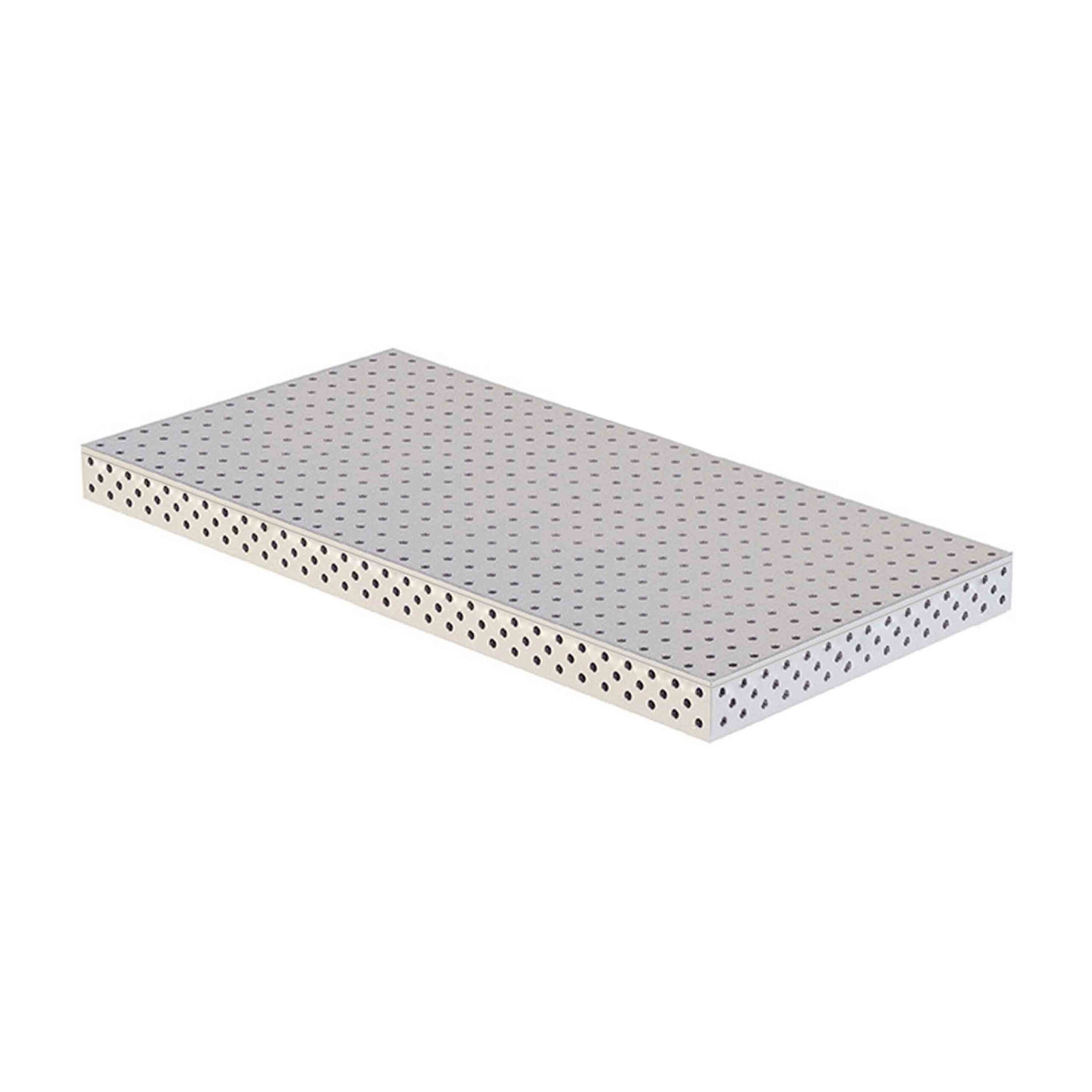

Demmeler ExpertLine 3D Worktable – 3m x 1.5m – 4 hole

1004

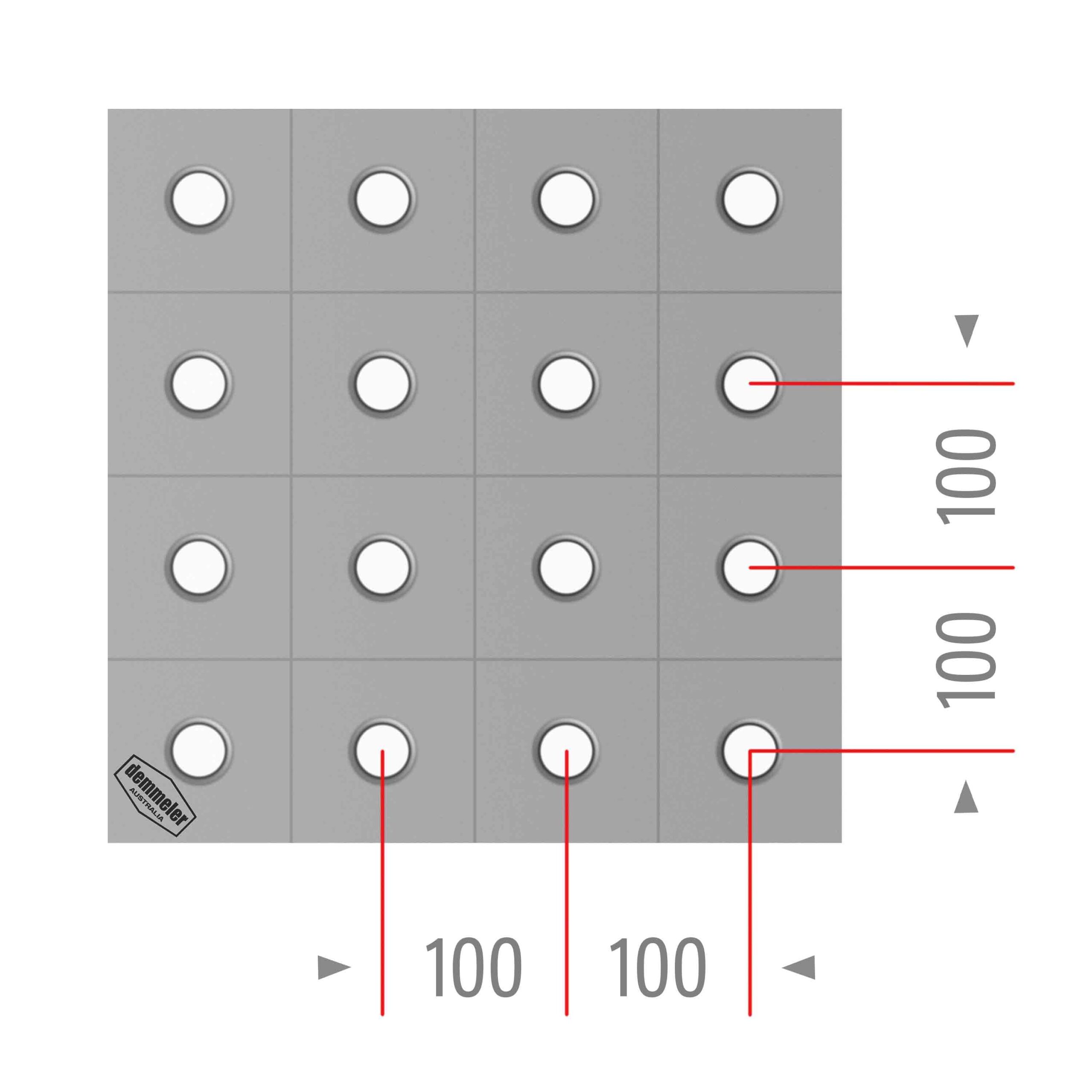

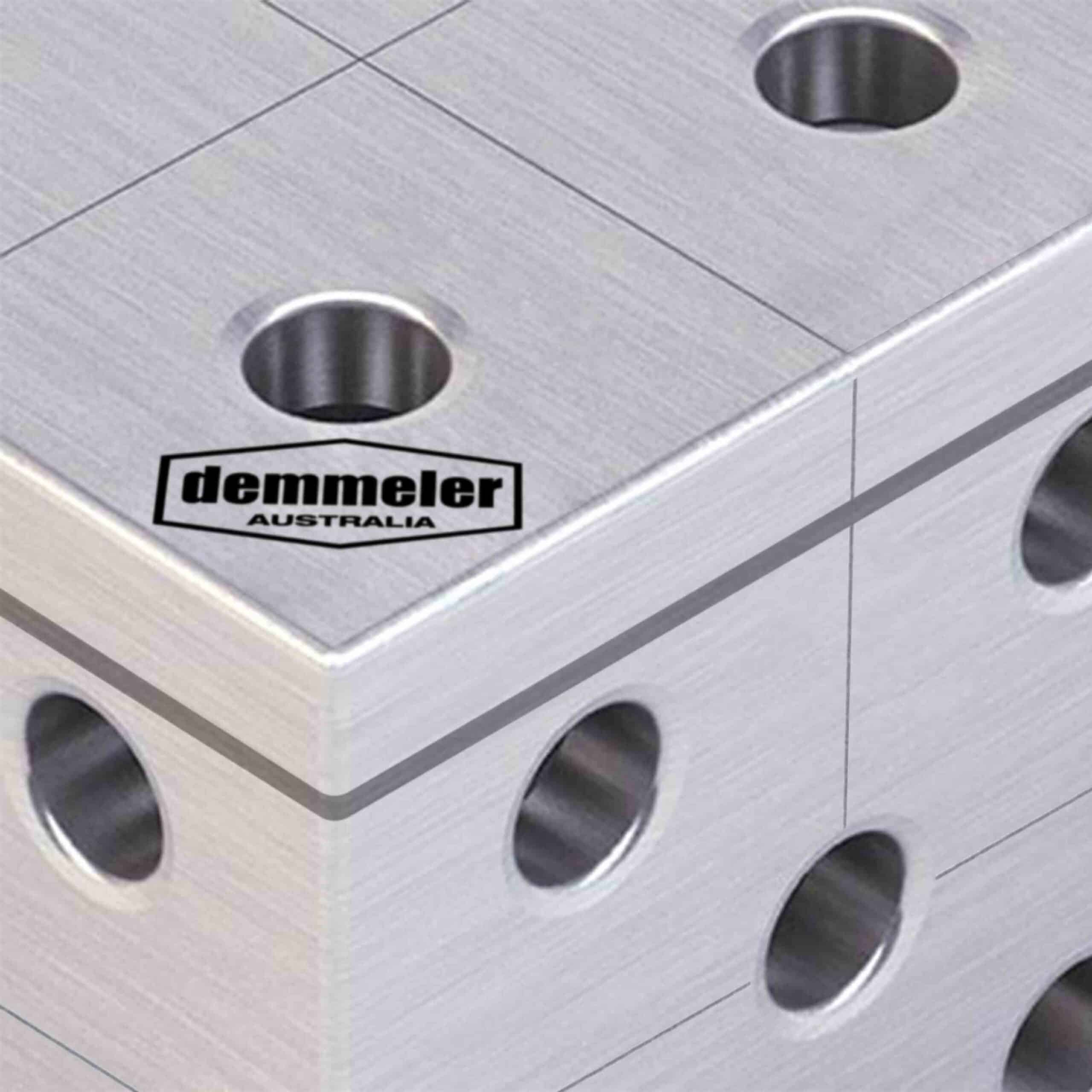

The Demmeler ExpertLine 3D Modular Welding Table is engineered for superior performance in everyday applications, and high precision tolerancing ensures reliability in every task. Featuring a standard 4-hole bore pattern and precise grid lines every 100mm, it offers unparalleled accuracy in setup. The table is designed with high fins and robust ribbing, ensuring exceptional intrinsic stability.

Equipped with a stable M24 x 2 threaded foot spindle, adjustable by ± 30 mm, it adapts to various working conditions. Its modular design allows expansion in all five directions—length, width, and height—making it versatile for any project. The absence of a measuring rule facilitates the rapid assembly of accurate clamping jigs.

The table remains spatter-free when paired with the #ProtectDem solution, maintaining a clean working surface.

Various foot types are available to suit different needs. Table legs not included.

Length = 3000mm
Width = 1500mm
Height = 220mm
Weight = 1420kg
Table Legs Required = 6

Length = 3000mm
Width = 1500mm
Height = 220mm
Weight = 1420kg
Table Legs = 6

NB: Table legs not included.

$0.00(exc GST)



Demmeler ExpertLine 3D Worktable – 3m x 1.5m – 4 hole Tech Specs

Weight 1420 kg
Dimensions 3000 × 1500 × 220 cm
Part No.

1004
