PC Bolt – EcoLine

E28-06001-000_AU

SKU: E28-06001-000_AU Category:

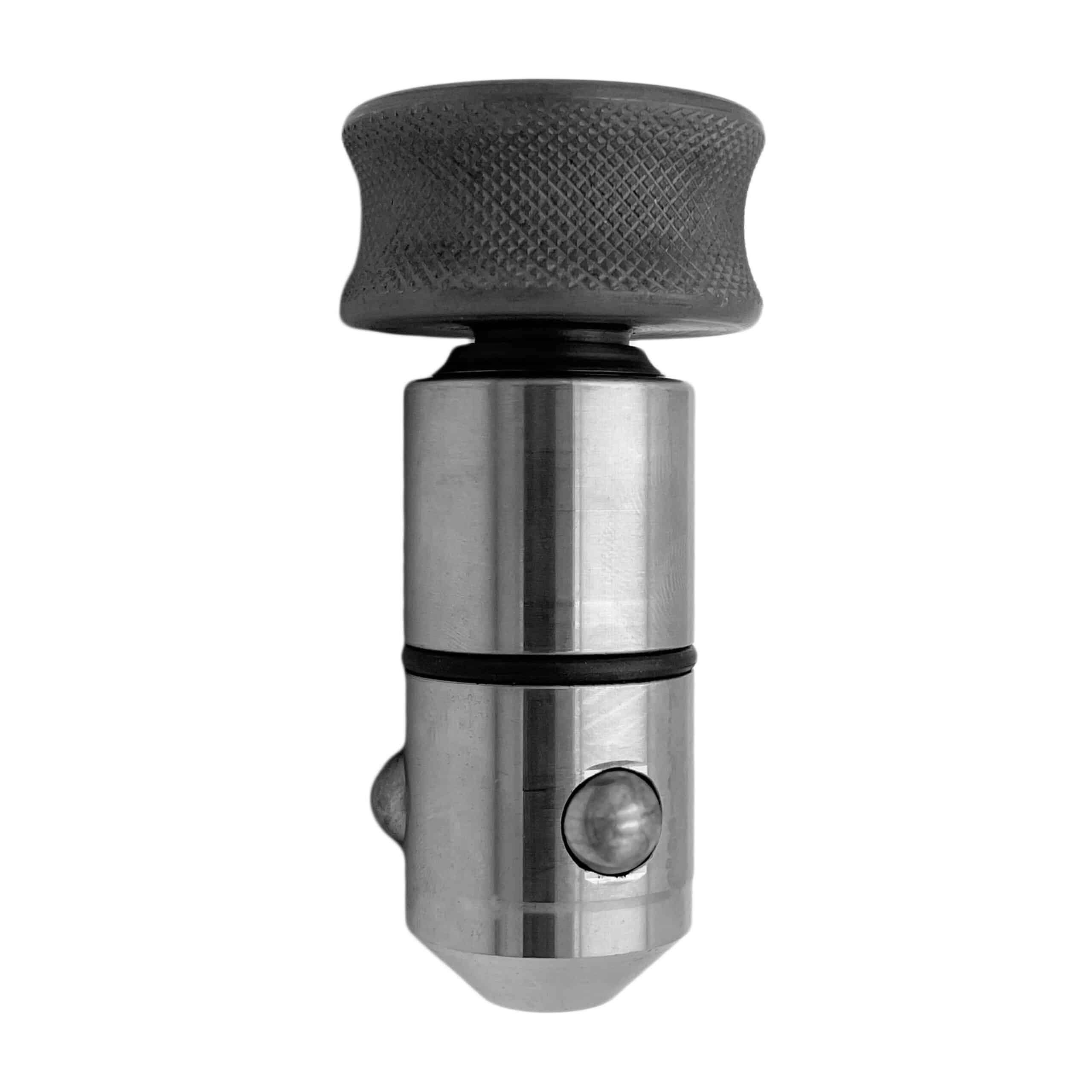

The Ecoline PC Bolt is a versatile and high-performance connecting element, ideal for use with worktables, perforated plates, and special fixtures. Designed for clamping a single system component to the worktable or connecting 2 components together.

Key features include:

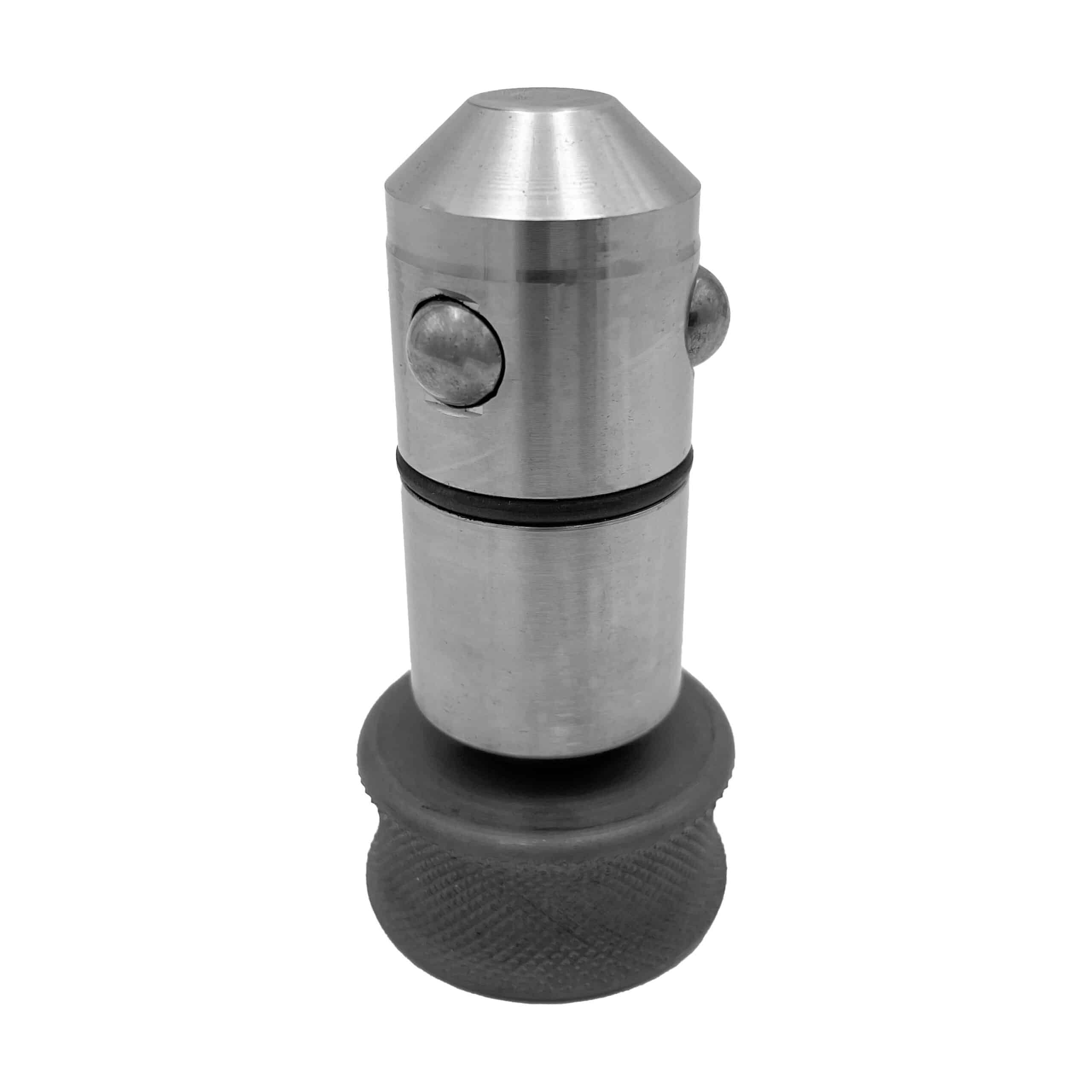

– 3-Ball design for efficient and economical clamping

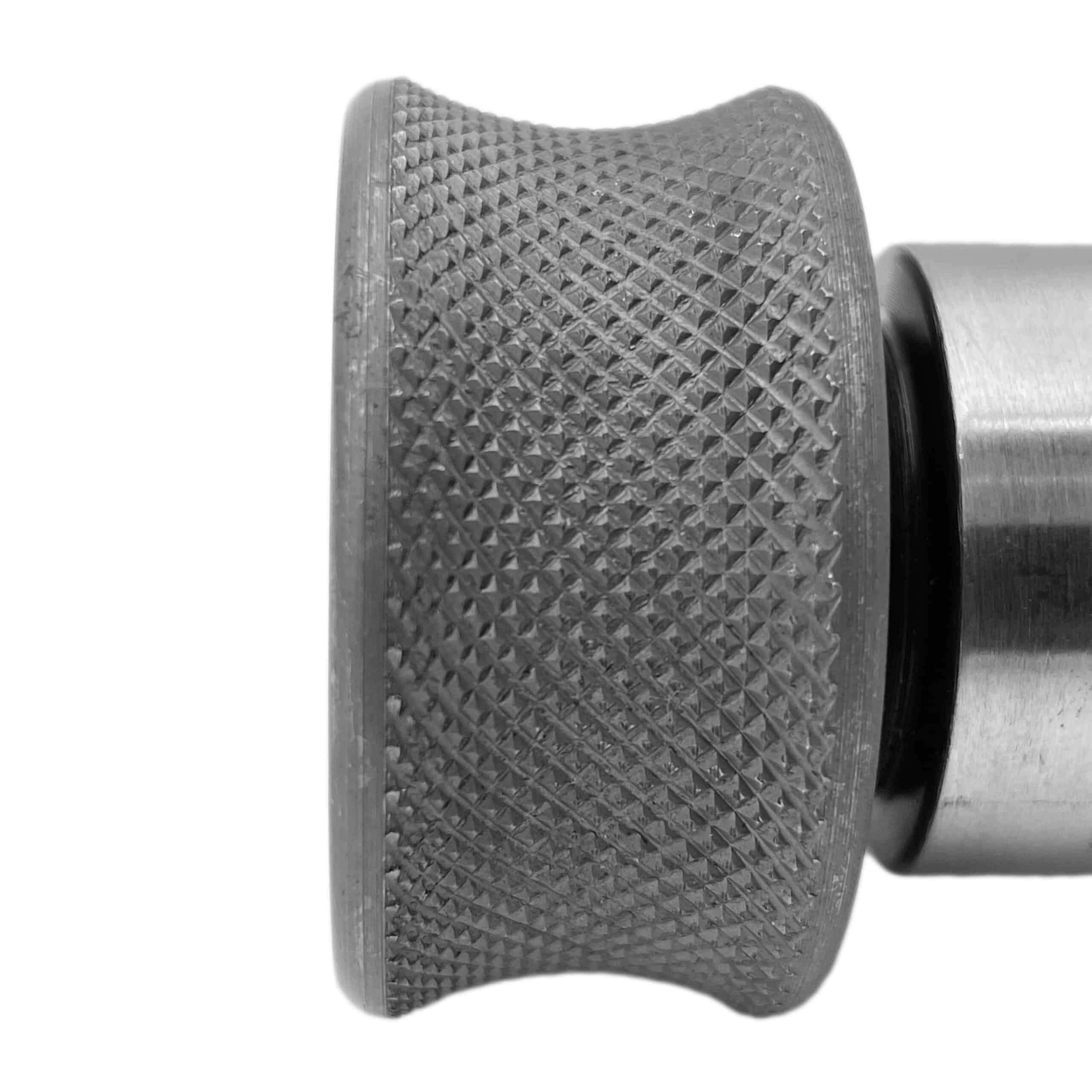

– Knurled undercut radius head to facilitate one-handed operation and easy extraction from the bore
– WHS approved lifting device – use with the dedicated Transport Shackle (#10001)

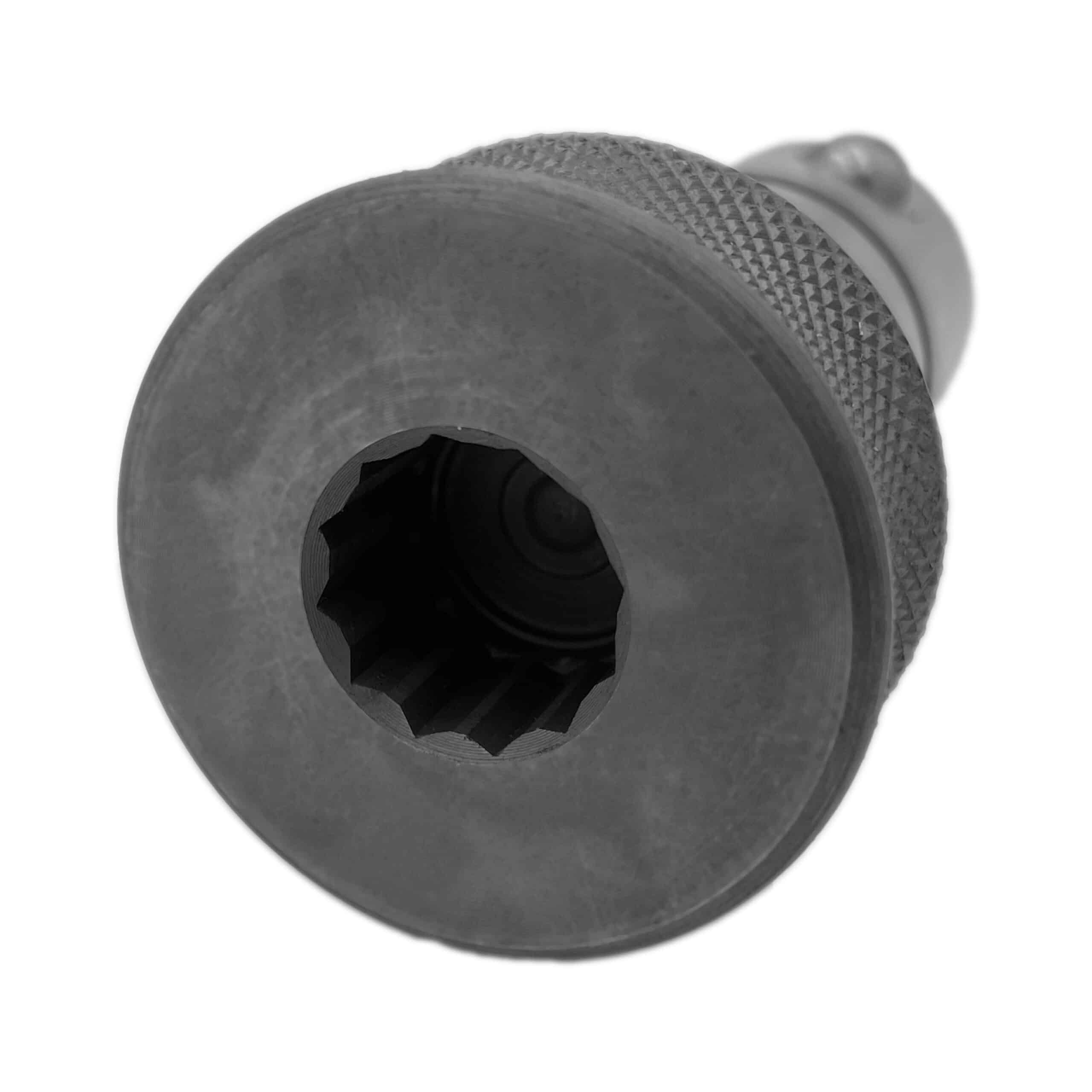

– Double hex screw allows for easy tightening with a 14 mm Allen key
– O-Ring for added stability in the bore, self-centring connection, and clean the bore during insertion and extraction
– Ergonomic design that supports multi-bolt corner interaction
– High quality hardened material to 58HRc
– Max. tightening torque 70Nm
– Clamping force approx. 5 tonnes
– Shear force approx. 25 tonnes

Clamping range: 41-47 mm

Weight = 0.4 kg

$105.00(exc GST)

PC Bolt – EcoLine Tech Specs

Weight 0.4 kg
