Tomelleri Explorer CMM Arm
- Description
- Specifications
- Price

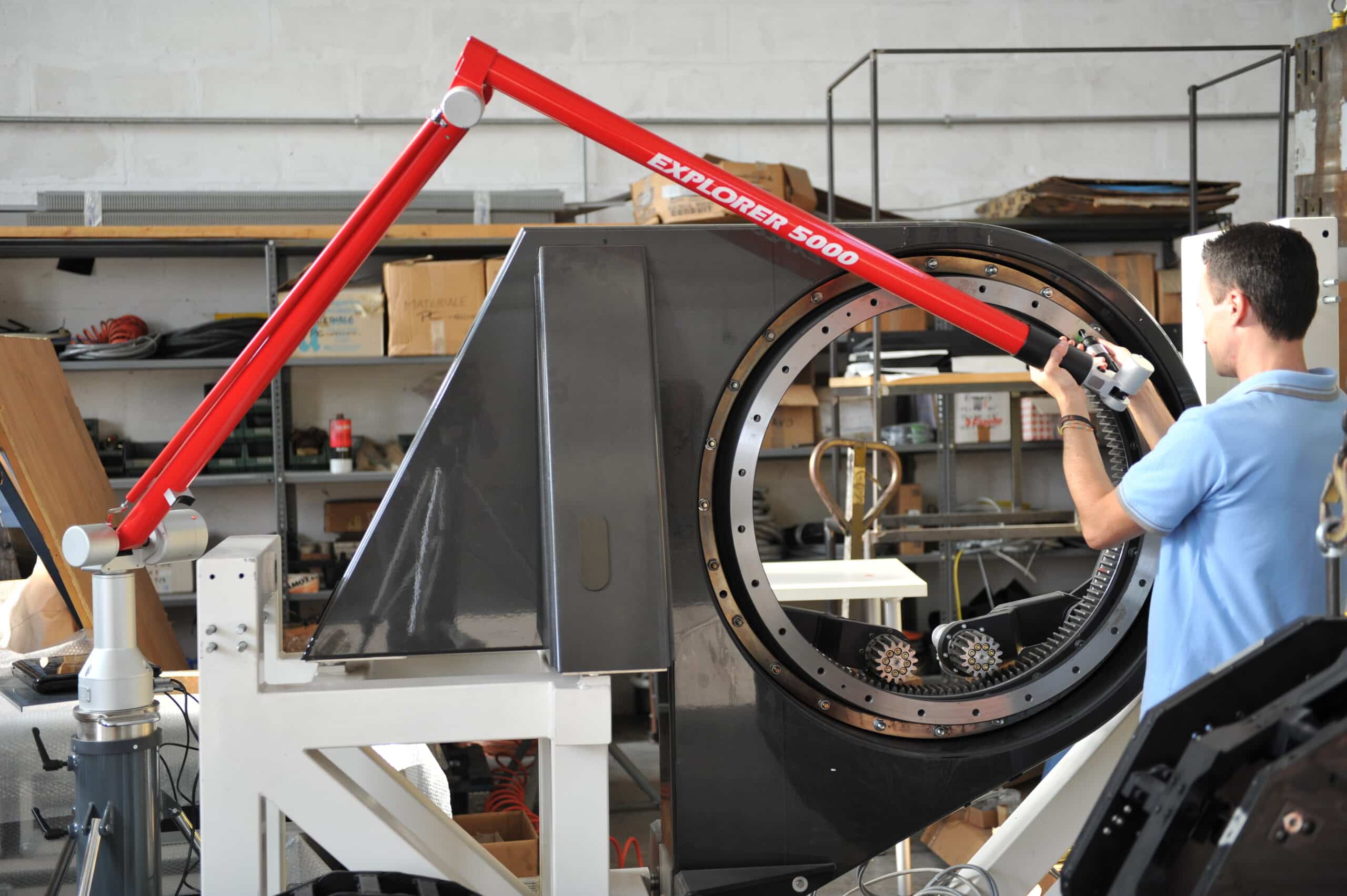

The Tomelleri Explorer Portable Measuring Arm offers unmatched precision in large-scale portable measurement, with models available in 5, 7, and 9-metre diameters and 6 or 7 axes configurations. Designed for challenging applications, the Explorer CMM Arm combines exceptional flexibility with ease of use through a balanced, user-friendly design that minimises load during operation. Its re-engineered electromagnetic brake ensures safe and comfortable handling, while compatibility with the Tomelleri Space Plus configurations allows both touch inspections and, with 7 axes, advanced scanning for reverse engineering.
6 AXES
Explorer 5000
Measuring Field (mm): 5,000
Volumetric Accuracy (mm)*: 0.065
Repeatability (mm)*: 0.038
Explorer 7000
Measuring Field (mm): 7,000
Volumetric Accuracy (mm)*: 0.102
Repeatability (mm)*: 0.056
Explorer 9000
Measuring Field (mm): 9,000
Volumetric Accuracy (mm)*: 0.150
Repeatability (mm)*: 0.075
7 AXES
Explorer 5000
Measuring Field (mm): 5,000
Volumetric Accuracy (mm)*: 0.075
Repeatability (mm)*: 0.050
Explorer 7000
Measuring Field (mm): 7,000
Volumetric Accuracy (mm)*: 0.117
Repeatability (mm)*: 0.070
Explorer 9000
Measuring Field (mm): 9,000
Volumetric Accuracy (mm)*: 0.170
Repeatability (mm)*: 0.090
*values reported are expressed with a 2σ error
Power Supply: 100-240V/50-60 Hz
Protection: IP 54
Operating Conditions: +10° : +40° | Humidity 90% without condensation
Conformity: In compliance with CE
Certifications Available: Standard: 10360-2
P.O.A
