Tomelleri Mercury CMM Arm

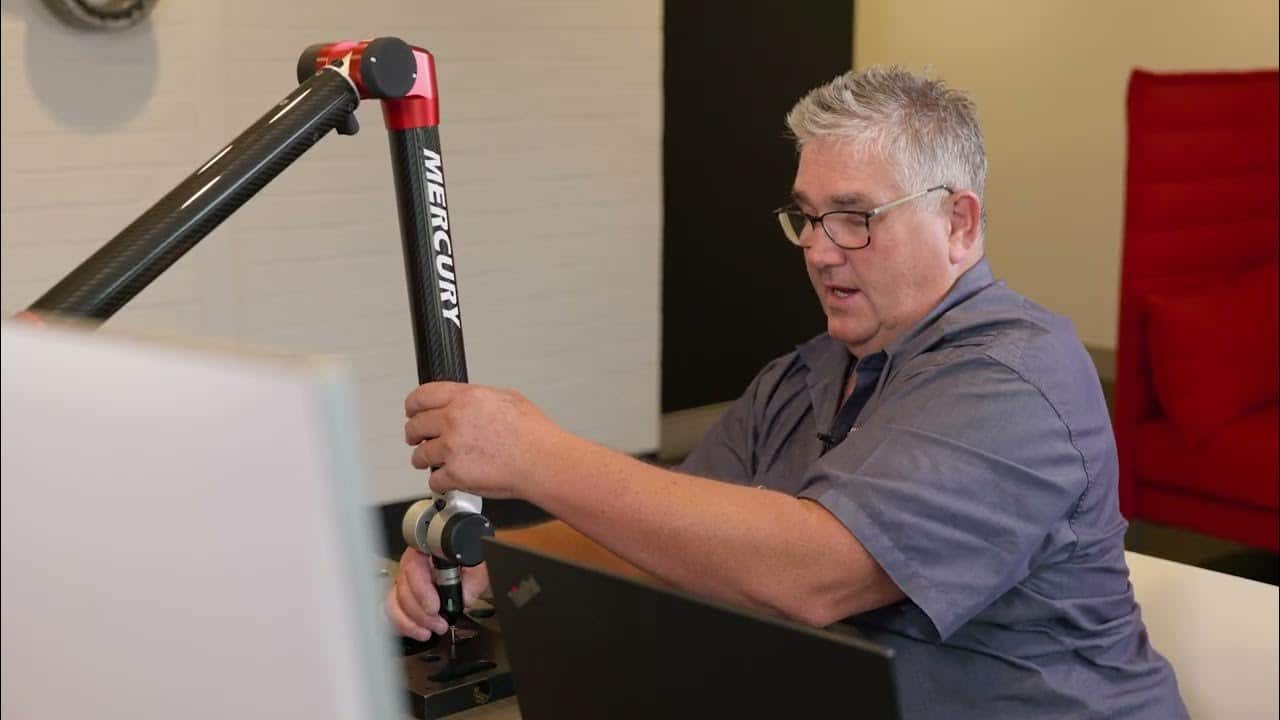

The Mercury line of portable CMM arms combines over 30 years of Tomelleri expertise in articulated arm design, to achieve unprecedented accuracy. Its optimised counterbalance provides a lightweight feel and intuitive handling, making it easy to operate right out of the box. The arm’s innovative home position sits directly in front of the operator for quick, effortless access. Designed for flexibility, the Mercury portable metrology arm can be used on a supporting surface or mounted on a tripod for maximum performance and convenience.

Mercury 1.3

Measuring Field (mm): 1,300

Volumetric Accuracy (mm)*: 0.015

Repeatability (mm)*: 0.008

Mercury 1.8

Measuring Field (mm): 1,800

Volumetric Accuracy (mm)*: 0.018

Repeatability (mm)*: 0.008

*values reported are expressed with a 2σ error

Power Supply: 100-240V/50-60 Hz

Protection: IP 54

Operating Conditions: +10° : +40° | Humidity 90% without condensation

Conformity: In compliance with CE

Certifications Available: Standard: 10360-2, 10360-12 on request

P.O.A
