PROFIEcoLINE D28 Welding Table – 4000 x 2000 With Legs

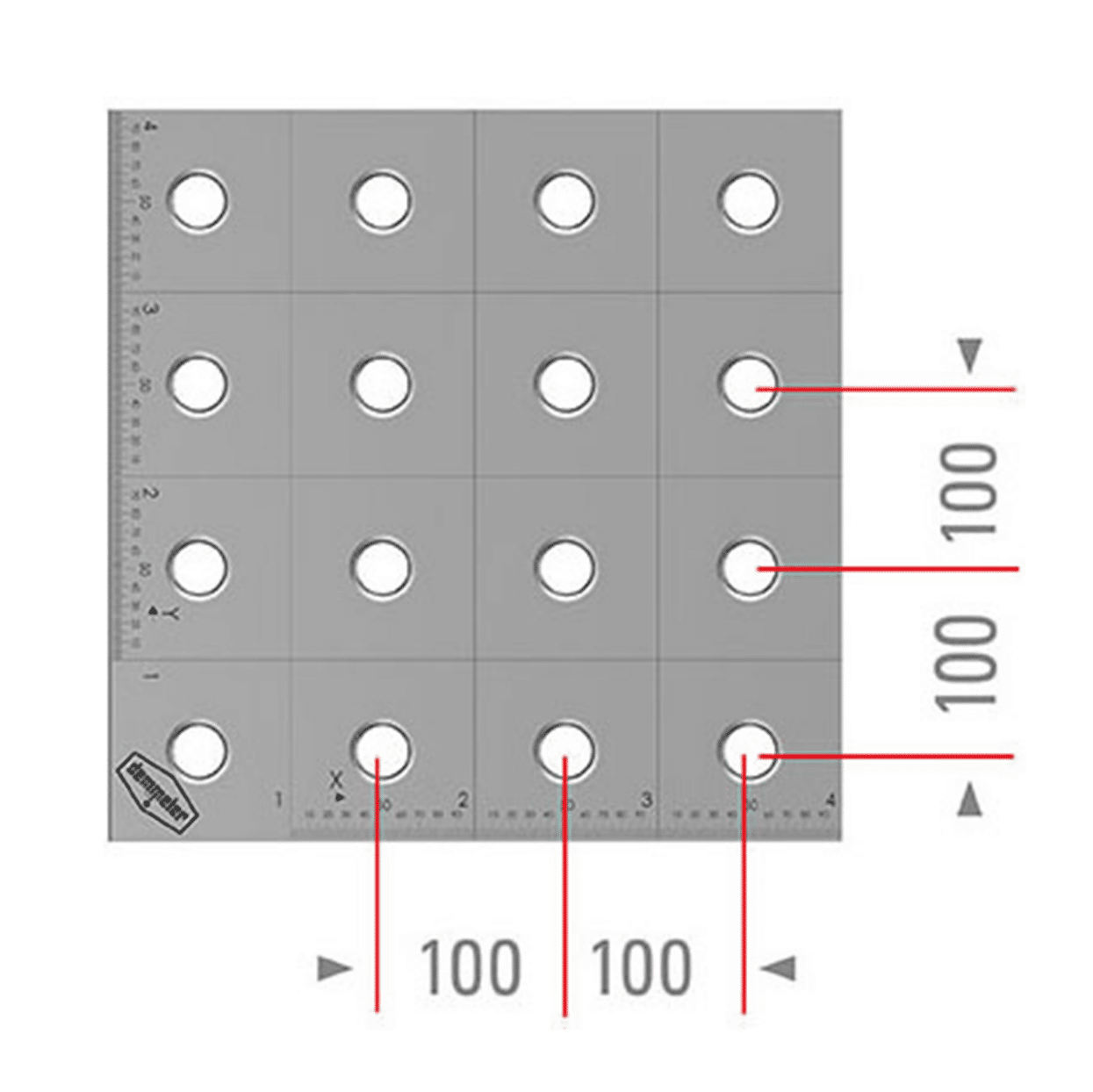

•Worktop with D28 system bores in a 100mm x 100mm grid
•3-hole drilling pattern in the table side plates with D28 system bores, 50mm grip in the top row with additional 100mm grid in the middle and in the bottom row, nearly doubling expansion and clamping options
•DEMONT 760 M hardened
•All system bores with new protective countersink, perfect design and ultimte functionality
•Optimised outside table edges
•Improved table reinforcement through additional cross-ribs
•Continuous gridlines in X and Y-direction, 100mm spacing
•Precision scaling with millimetre graduation
•Coordinate marking of bores in X and Y direction
•Demmeler logo recessed in all 4 side plates
•Table legs with fine adjustment, round design with pivoting foot
•Foot sleeve to protect the cable-hose assembly
Max. load: 18000 kg
Number of legs: 6 (included)
PROFIEcoLINE D28 Welding Table – 4000 x 2000 With Legs Tech Specs
Weight | 2141 kg |
---|---|
Dimensions | 4000 × 2000 × 850 cm |
Part No. | PE28-01005-011 |
